| General information | |
|---|---|

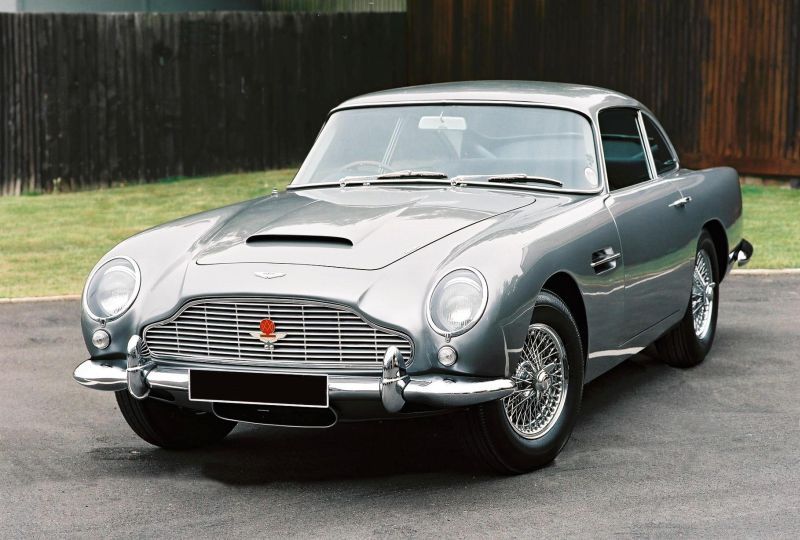

| Brand | Aston Martin |
| Model | DB5 |
| Generation | DB5 |
| Type (Engine) | 4.0 (286 Hp) |
| Start of production | 1963 year |
| End of production | 1965 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 4 |
| Doors | 2 |
| Performance specs | |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 60 mph | 7.1 sec |
| Maximum speed | 225 km/h 139.81 mph |
| Weight-to-power ratio | 5.1 kg/Hp, 195.1 Hp/tonne |
| Weight-to-torque ratio | 3.9 kg/Nm, 259.2 Nm/tonne |
| Engine specs | |
| Power | 286 Hp @ 5500 rpm. |
| Power per litre | 71.6 Hp/l |
| Torque | 380 Nm @ 4500 rpm. 280.27 lb.-ft. @ 4500 rpm. |
| Engine layout | Front, Longitudinal |
| Engine displacement | 3995 cm3 243.79 cu. in. |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 96 mm 3.78 in. |
| Piston Stroke | 92 mm 3.62 in. |
| Compression ratio | 8.8:1 |
| Fuel injection system | Carburettor |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1466 kg 3231.98 lbs. |
| Dimensions | |
| Length | 4572 mm 180 in. |
| Width | 1680 mm 66.14 in. |
| Height | 1346 mm 52.99 in. |
| Wheelbase | 2490 mm 98.03 in. |
| Front track | 1372 mm 54.02 in. |
| Rear (Back) track | 1360 mm 53.54 in. |
| Ride height (ground clearance) | 160 mm 6.3 in. |
| Minimum turning circle (turning diameter) | 10.3 m 33.79 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Front suspension | Double wishbone |
| Rear suspension | dependent spring suspension |
| Front brakes | Disc |
| Rear brakes | Disc |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| What is the body type, Aston Martin DB5? | Coupe, 2 Doors, 4 Seats |
|---|---|
| How fast is the car, 1963 DB5 4.0 (286 Hp)? | 225 km/h | 139.81 mph 0-60 mph: 7.1 sec |
| How much power, Aston Martin DB5 Coupe 1963 4.0 (286 Hp)? | 286 Hp, 380 Nm 280.27 lb.-ft. |
| What is the engine size, Aston Martin DB5 Coupe 1963 4.0 (286 Hp)? | 4.0 l 3995 cm3 243.79 cu. in. |
| How many cylinders, 1963 Aston Martin 4.0 (286 Hp)? | 6, Inline |
| What is the drivetrain, Aston Martin DB5 Coupe 1963 4.0 (286 Hp)? | Rear wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| How long is this vehicle, 1963 Aston Martin DB5 Coupe? | 4572 mm 180 in. |
| How wide is the vehicle, 1963 Aston Martin DB5 Coupe? | 1680 mm 66.14 in. |
| What is the curb weight, 1963 Aston Martin DB5 4.0 (286 Hp)? | 1466 kg 3231.98 lbs. |
