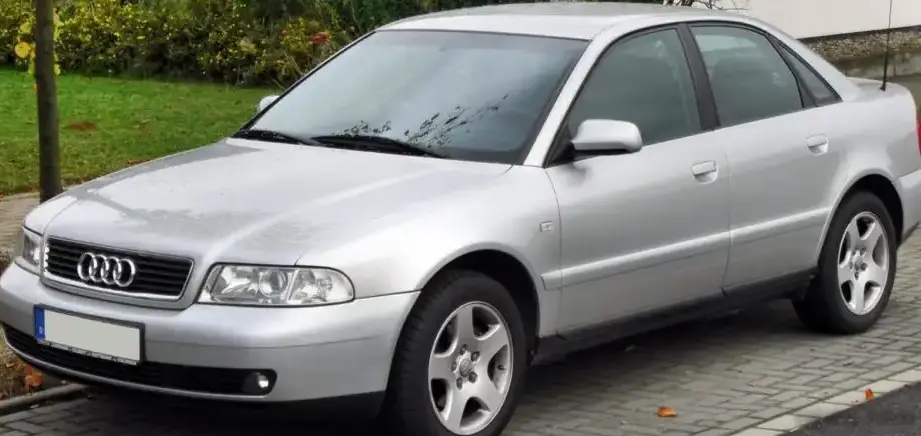

The Audi A4 (B5) facelift, produced from 1999 to 2000, represented a significant mid-cycle refresh of Audi’s popular compact executive car. Among the engine options available, the 2.5 TDI V6 with 150 horsepower occupied a unique position, offering a blend of performance and fuel efficiency geared towards drivers prioritizing comfortable long-distance cruising. This variant was primarily sold in the European market, where diesel engines held a much larger share of the automotive landscape than in the United States. It sat in the mid-range of the B5 A4 lineup, offering more power and refinement than the entry-level 1.8L petrol models, but at a lower price point than the more potent 2.8L V6.
Technical Specifications
| Brand | Audi |
| Model | A4 |
| Generation | A4 (B5, Typ 8D, facelift 1999) |
| Type (Engine) | 2.5 TDI V6 (150 Hp) |
| Start of production | 1999 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 9.7 l/100 km (24.2 US mpg, 29.1 UK mpg, 10.3 km/l) |
| Fuel consumption (extra urban) | 5.2 l/100 km (45.2 US mpg, 54.3 UK mpg, 19.2 km/l) |
| Fuel consumption (combined) | 6.8 l/100 km (34.6 US mpg, 41.5 UK mpg, 14.7 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9 sec |
| Acceleration 0 – 62 mph | 9 sec |
| Acceleration 0 – 60 mph | 8.6 sec |
| Maximum speed | 220 km/h (136.7 mph) |
| Weight-to-power ratio | 9.2 kg/Hp, 108.3 Hp/tonne |
| Weight-to-torque ratio | 4.5 kg/Nm, 223.8 Nm/tonne |
| Power | 150 Hp @ 4000 rpm |
| Power per litre | 60.1 Hp/l |
| Torque | 310 Nm @ 1500-3200 rpm (228.64 lb.-ft. @ 1500-3200 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | AFB |
| Engine displacement | 2496 cm3 (152.32 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 78.3 mm (3.08 in.) |
| Piston Stroke | 86.4 mm (3.4 in.) |
| Compression ratio | 19.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Coolant | 8 l (8.45 US qt | 7.04 UK qt) |
| Kerb Weight | 1385 kg (3053.4 lbs.) |
| Max. weight | 1935 kg (4265.94 lbs.) |
| Max load | 550 kg (1212.54 lbs.) |
| Trunk (boot) space – minimum | 440 l (15.54 cu. ft.) |
| Fuel tank capacity | 62 l (16.38 US gal | 13.64 UK gal) |
| Length | 4479 mm (176.34 in.) |
| Width | 1733 mm (68.23 in.) |
| Height | 1415 mm (55.71 in.) |
| Wheelbase | 2617 mm (103.03 in.) |
| Front track | 1498 mm (58.98 in.) |
| Rear (Back) track | 1479 mm (58.23 in.) |
| Drag coefficient (Cd) | 0.31 |
| Minimum turning circle | 11.1 m (36.42 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Suspension with traction connecting levers |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of this A4 variant is the 2.5-liter V6 TDI engine, designated with the code AFB. This engine is a 24-valve, direct-injection diesel, utilizing a turbocharger and intercooler to boost power output. Direct injection, a relatively new technology at the time, allowed for more precise fuel delivery and improved combustion efficiency. The engine featured a double overhead camshaft (DOHC) valvetrain, optimizing airflow into and out of the cylinders. The 19.5:1 compression ratio is typical for a diesel engine, contributing to its thermal efficiency. The engine’s longitudinal mounting within the engine bay, coupled with front-wheel drive, was a common configuration for Audi models of this era. The 6-speed manual transmission was the standard offering, providing a good balance between fuel economy and performance.
Driving Characteristics
The 2.5 TDI V6 offered a distinctly different driving experience compared to the gasoline-powered A4s. While not as overtly sporty as the 1.8T or 2.8 V6, it delivered a substantial 310 Nm (228.64 lb-ft) of torque from as low as 1500 rpm. This resulted in strong acceleration in everyday driving situations, particularly for overtaking. The 0-60 mph time of around 8.6 seconds was respectable for the period. The 6-speed manual transmission allowed drivers to keep the engine in its optimal power band. Compared to the 1.8L models, the 2.5 TDI felt more composed and relaxed at highway speeds, making it an excellent choice for long journeys. However, it lacked the high-revving eagerness of the petrol engines.
Equipment & Trim Levels
The 2.5 TDI V6 typically came equipped with a reasonably comprehensive set of features. Standard equipment included power windows, central locking, air conditioning, and an upgraded stereo system. Interior upholstery was generally cloth, although leather options were available. Trim levels varied depending on the market, but generally included options for alloy wheels, sunroof, and upgraded audio systems. The A4 B5 facelift also saw improvements in interior materials and design compared to the pre-facelift models, offering a more refined cabin experience.
Chassis & Braking
The A4 B5 chassis was well-regarded for its balance of comfort and handling. The 2.5 TDI V6 models utilized a wishbone front suspension and a semi-independent rear suspension with traction connecting levers. The braking system consisted of ventilated discs at the front and solid discs at the rear, with ABS as standard. The suspension was tuned to provide a comfortable ride, but also offered decent body control. Stabilizer bars were fitted front and rear to reduce body roll during cornering.
Market Reception & Comparison
The 2.5 TDI V6 A4 was well-received in Europe as a practical and efficient executive car. Critics praised its strong torque, comfortable ride, and fuel economy. Compared to the 1.8L petrol models, the TDI offered superior performance and refinement, albeit at a slightly higher price. Against the 2.8 V6, it provided a more economical alternative without sacrificing too much in terms of driving pleasure. The diesel engine’s fuel efficiency was a major selling point, particularly in countries with high gasoline prices.
Legacy
The AFB engine, while generally reliable, is now showing its age. Common issues include turbocharger wear, injector problems, and potential issues with the timing belt. However, with proper maintenance, these engines can still provide many years of service. Today, the 2.5 TDI V6 A4 B5 is a relatively affordable used car, appealing to those seeking a comfortable and economical classic. Its robust construction and relatively simple mechanicals make it a popular choice for enthusiasts and those looking for a dependable daily driver. The engine’s torque output still feels impressive even by modern standards, and its fuel economy remains competitive.
