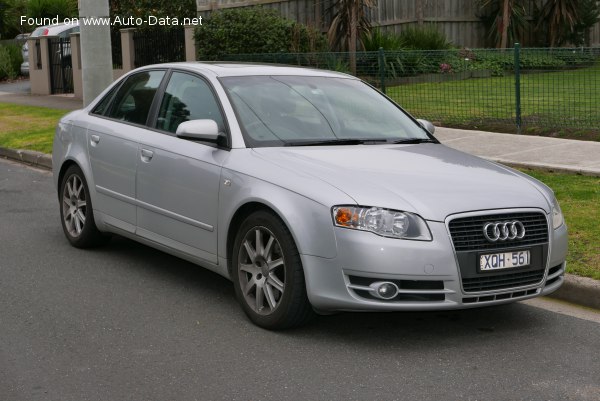

The Audi A4 (B7) 1.6, produced between 2004 and June 2008, represented the entry point into the B7 generation of Audi’s popular compact executive car. Positioned as an affordable option within the A4 range, it primarily served the European market where fuel efficiency and lower purchase price were key considerations. This variant utilized a 1.6-liter inline-four engine producing 102 horsepower, paired with a five-speed manual transmission. It occupied the lower end of the A4 B7 spectrum, sitting below the more powerful 1.8T, 2.0T, and 3.2 FSI models, as well as the diesel variants like the 1.9 TDI and 2.0 TDI.
Technical Specifications
| Brand | Audi |
| Model | A4 |
| Generation | A4 (B7 8E) |
| Type (Engine) | 1.6 (102 Hp) |
| Start of production | 2004 |
| End of production | June, 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 10.8 l/100 km (21.8 US mpg, 26.2 UK mpg, 9.3 km/l) |
| Fuel consumption (extra urban) | 6 l/100 km (39.2 US mpg, 47.1 UK mpg, 16.7 km/l) |
| Fuel consumption (combined) | 7.7 l/100 km (30.5 US mpg, 36.7 UK mpg, 13 km/l) |
| CO2 emissions | 185 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 12.6 sec |
| Acceleration 0 – 62 mph | 12.6 sec |
| Acceleration 0 – 60 mph | 12 sec |
| Maximum speed | 190 km/h (118.06 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 12.7 kg/Hp, 78.5 Hp/tonne |
| Weight-to-torque ratio | 8.8 kg/Nm, 113.8 Nm/tonne |
| Power | 102 Hp @ 5600 rpm |
| Power per litre | 63.9 Hp/l |
| Torque | 148 Nm @ 3800 rpm (109.16 lb.-ft. @ 3800 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | ALZ |
| Engine displacement | 1596 cm3 (97.39 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 77.4 mm (3.05 in.) |
| Compression ratio | 10.3:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.5 l (3.7 US qt | 3.08 UK qt) |
| Coolant | 7.5 l (7.93 US qt | 6.6 UK qt) |
| Kerb Weight | 1300 kg (2866.01 lbs.) |
| Max. weight | 1850 kg (4078.55 lbs.) |
| Max load | 550 kg (1212.54 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Trunk (boot) space – maximum | 720 l (25.43 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (8%) | 1400 kg (3086.47 lbs.) |
| Permitted trailer load with brakes (12%) | 1200 kg (2645.55 lbs.) |
| Permitted trailer load without brakes | 690 kg (1521.19 lbs.) |
| Permitted towbar download | 80 kg (176.37 lbs.) |
| Length | 4586 mm (180.55 in.) |
| Width | 1772 mm (69.76 in.) |
| Width including mirrors | 1937 mm (76.26 in.) |
| Height | 1427 mm (56.18 in.) |
| Wheelbase | 2648 mm (104.25 in.) |
| Front track | 1522 mm (59.92 in.) |
| Rear (Back) track | 1522 mm (59.92 in.) |
| Drag coefficient (Cd) | 0.28 |
| Minimum turning circle (turning diameter) | 11.1 m (36.42 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/65 R16 |
| Wheel rims size | 7J x 16 |
Powertrain & Engine Architecture
The heart of the A4 1.6 was the ALZ engine, a 1.6-liter (1596 cc) inline-four cylinder gasoline engine. This engine featured a naturally aspirated configuration and utilized a multi-port fuel injection system. The engine produced 102 horsepower at 5600 rpm and 148 Nm (109 lb-ft) of torque at 3800 rpm. The ALZ engine employed a single overhead camshaft (OHC) valvetrain with two valves per cylinder. The engine’s longitudinal mounting within the engine bay was a characteristic of Audi’s front-wheel-drive platform, allowing for a more balanced weight distribution. The five-speed manual transmission was the standard offering, providing relatively long gear ratios geared towards fuel economy rather than outright performance.
Driving Characteristics
The A4 1.6, with its modest power output, offered a comfortable but unhurried driving experience. Acceleration from 0 to 100 km/h (0-62 mph) took approximately 12.6 seconds, and top speed was limited to 190 km/h (118 mph). The long gearing of the five-speed manual transmission meant that the engine often felt strained when accelerating quickly or climbing hills. Compared to the more powerful 1.8T and 2.0T variants, the 1.6 lacked the punch for spirited driving. However, it provided adequate performance for everyday commuting and cruising. The focus was on efficiency and refinement, rather than outright speed.
Equipment & Trim Levels
The A4 1.6 typically came with a reasonable level of standard equipment, though it was less lavish than the higher-spec models. Standard features generally included power windows, central locking, air conditioning, and an audio system. Interior upholstery was typically cloth, and the dashboard featured a straightforward design. Optional extras included alloy wheels, a sunroof, upgraded audio systems, and parking sensors. The trim level was generally considered the base model, offering a functional and practical interior.
Chassis & Braking
The A4 B7 utilized an independent multi-link suspension system at both the front and rear, providing a comfortable ride and good handling characteristics. The front suspension featured ventilated disc brakes, while the rear brakes were solid discs. Anti-lock Braking System (ABS) was standard. The chassis was tuned for comfort and stability, prioritizing ride quality over sporty handling. The weight distribution was reasonably balanced due to the longitudinal engine placement, contributing to predictable handling.
Market Reception & Comparison
The A4 1.6 was primarily aimed at buyers who prioritized fuel economy and affordability over performance. Critics generally acknowledged its practicality and comfort but noted its lack of power compared to other A4 variants. Fuel economy was a strong point, with combined fuel consumption figures around 7.7 l/100 km (30.5 US mpg). Compared to the 1.8T, the 1.6 offered significantly lower running costs but lacked the responsiveness and refinement of the turbocharged engine. The diesel variants, such as the 1.9 TDI, provided even better fuel economy and more torque, making them popular choices for long-distance drivers.
Legacy
The ALZ 1.6-liter engine, while not known for its performance, proved to be a relatively reliable unit. Common issues were generally minor, such as oil leaks and occasional sensor failures. In the used car market, the A4 1.6 represents an affordable entry point into Audi ownership. Its lower purchase price and reasonable running costs make it an attractive option for budget-conscious buyers. However, potential buyers should be aware of its limited power and the potential for higher maintenance costs as the car ages. The A4 B7 1.6 remains a popular choice for those seeking a comfortable and practical compact executive car.
