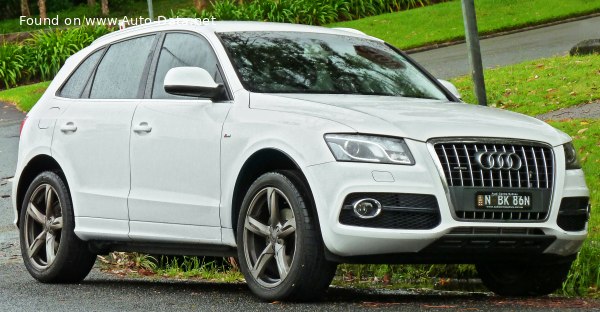

The Audi Q5 I (8R) 2.0 TDI quattro, produced from May 2008 to September 2010, represented Audi’s entry into the burgeoning luxury compact SUV segment. Positioned as a more accessible variant within the first-generation Q5 lineup (8R), it offered all-wheel drive capability and a diesel engine focused on fuel efficiency and reasonable performance. This model played a significant role in establishing the Q5 as a popular choice in the European market, where diesel engines were – and continue to be – favored for their economy. It served as a stepping stone for buyers wanting the Q5’s styling and features without the higher price tag of the more powerful engine options.
Technical Specifications
| Brand | Audi |
| Model | Q5 |
| Generation | Q5 I (8R) |
| Type (Engine) | 2.0 TDI (170 Hp) quattro |
| Start of production | May, 2008 |
| End of production | September, 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.2 l/100 km (28.7 US mpg, 34.4 UK mpg, 12.2 km/l) |
| Fuel consumption (extra urban) | 5.8 l/100 km (40.6 US mpg, 48.7 UK mpg, 17.2 km/l) |
| Fuel consumption (combined) | 6.7 l/100 km (35.1 US mpg, 42.2 UK mpg, 14.9 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9.5 sec |
| Acceleration 0 – 62 mph | 9.5 sec |
| Acceleration 0 – 60 mph | 9 sec |
| Maximum speed | 204 km/h (126.76 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 10.2 kg/Hp, 98.3 Hp/tonne |
| Weight-to-torque ratio | 4.9 kg/Nm, 202.3 Nm/tonne |
| Power | 170 Hp @ 4200 rpm |
| Power per litre | 86.4 Hp/l |
| Torque | 350 Nm @ 1750-2500 rpm (258.15 lb.-ft. @ 1750-2500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | CAHA |
| Engine displacement | 1968 cm3 (120.09 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Coolant | 9 l (9.51 US qt | 7.92 UK qt) |
| Kerb Weight | 1730 kg (3814 lbs.) |
| Max. weight | 2310 kg (5092.68 lbs.) |
| Max load | 580 kg (1278.68 lbs.) |
| Trunk (boot) space – minimum | 540 l (19.07 cu. ft.) |
| Trunk (boot) space – maximum | 1560 l (55.09 cu. ft.) |
| Fuel tank capacity | 75 l (19.81 US gal | 16.5 UK gal) |
| Permitted trailer load with brakes (8%) | 2400 kg (5291.09 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Length | 4629 mm (182.24 in.) |
| Width | 1880 mm (74.02 in.) |
| Width including mirrors | 2088 mm (82.2 in.) |
| Height | 1653 mm (65.08 in.) |
| Wheelbase | 2807 mm (110.51 in.) |
| Front track | 1617 mm (63.66 in.) |
| Rear (Back) track | 1613 mm (63.5 in.) |
| Front overhang | 895 mm (35.24 in.) |
| Rear overhang | 927 mm (36.5 in.) |
| Ride height (ground clearance) | 200 mm (7.87 in.) |
| Drag coefficient (Cd) | 0.33 |
| Minimum turning circle (turning diameter) | 11.6 m (38.06 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, automatic transmission |
| Front suspension | Independent multi-link suspension |
| Rear suspension | Independent on trapezoidal lever |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 235/65 R17 |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The heart of the Q5 2.0 TDI quattro is the CAHA engine, a 1968cc inline-four cylinder diesel. This engine is a member of the Volkswagen Group’s modular engine family, known for its robust construction and widespread use across various models. It features a common rail direct injection system, delivering fuel at extremely high pressures for optimized combustion. A turbocharger with an intercooler is employed to boost power output and improve efficiency. The engine utilizes a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, enhancing breathing and contributing to its 170 horsepower at 4200 rpm and 350 Nm (258 lb-ft) of torque between 1750 and 2500 rpm. The engine’s longitudinal mounting allowed for efficient integration with Audi’s quattro all-wheel-drive system.
Paired with the 2.0 TDI engine is a six-speed automatic transmission. This transmission, while providing convenience, was not known for its particularly quick shifts compared to the available manual gearbox. The gear ratios were tuned for fuel economy and smooth cruising, rather than outright performance. The quattro system distributes power between the front and rear axles as needed, providing enhanced traction in various conditions.
Driving Characteristics
The Q5 2.0 TDI quattro offered a comfortable and composed driving experience. While not a sports SUV, it provided adequate acceleration for everyday driving, achieving 0-60 mph in around 9 seconds. The automatic transmission, while smooth, could feel somewhat sluggish, especially during overtaking maneuvers. The engine’s torque delivery was its strong suit, providing good pulling power from low engine speeds. The quattro all-wheel-drive system instilled confidence in slippery conditions, enhancing stability and control. Compared to the more powerful 3.2-liter V6 Q5, the 2.0 TDI felt noticeably less energetic, but it offered significantly better fuel economy.
Equipment & Trim Levels
The Q5 2.0 TDI quattro typically came standard with features such as automatic climate control, power windows and locks, a multi-function steering wheel, and an Audi Concert audio system. Upholstery was generally cloth, with leather options available as an upgrade. Common optional extras included a sunroof, navigation system, parking sensors, and upgraded alloy wheels. Trim levels varied slightly depending on the market, but generally offered packages that bundled popular options together. The base trim focused on providing essential features, while higher trims added luxury and convenience items.
Chassis & Braking
The Q5’s chassis featured an independent multi-link suspension at the front and an independent trapezoidal link suspension at the rear, providing a comfortable ride and good handling characteristics. The suspension was tuned to prioritize comfort over sporty handling. Braking duties were handled by ventilated discs on all four wheels, providing adequate stopping power. Anti-lock braking system (ABS) was standard, enhancing safety. Stabilizer bars were fitted front and rear to reduce body roll during cornering.
Market Reception & Comparison
The Audi Q5 2.0 TDI quattro was generally well-received by automotive critics. It was praised for its comfortable ride, spacious interior, and fuel efficiency. However, some critics noted that the automatic transmission could be slow to respond and that the engine lacked the punch of its larger counterparts. Compared to rivals like the BMW X3 and Mercedes-Benz GLK, the Q5 offered a compelling combination of luxury, practicality, and fuel economy. The 2.0 TDI variant was particularly popular in Europe, where diesel engines were favored for their lower running costs.
Legacy
The CAHA engine, found in the Q5 2.0 TDI, proved to be a relatively reliable unit when properly maintained. Common issues included diesel particulate filter (DPF) clogging and occasional turbocharger problems, but these were not widespread. Today, used examples of the Q5 2.0 TDI quattro represent a relatively affordable entry point into the Audi luxury SUV market. They continue to be sought after by buyers looking for a comfortable, practical, and fuel-efficient vehicle. The Q5’s success helped establish Audi as a major player in the compact luxury SUV segment, paving the way for future generations of the model.
