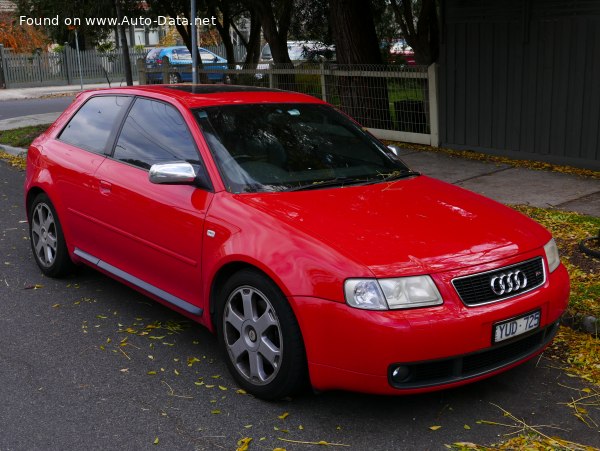

The Audi S3 (8L) 1.8T quattro, produced between November 1998 and August 2000, represents the initial foray into a high-performance compact hatchback by Audi. Positioned as the flagship variant of the first-generation S3 (based on the Volkswagen Golf Mk4’s 1HX0/A3 platform), it aimed to deliver a compelling blend of everyday usability and exhilarating performance. This model established the S3 as a benchmark in the hot hatch segment, particularly in European markets, and laid the groundwork for subsequent generations. The 1.8T quattro was a significant step up from the standard A3 models, offering a substantially more powerful engine and Audi’s renowned quattro all-wheel-drive system.
Technical Specifications
| Brand | Audi |
| Model | S3 |
| Generation | S3 (8L) |
| Type (Engine) | 1.8 T (210 Hp) quattro |
| Start of production | November, 1998 |
| End of production | August, 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (urban) | 12.2 l/100 km (19.3 US mpg, 23.2 UK mpg, 8.2 km/l) |
| Fuel consumption (extra urban) | 7.2 l/100 km (32.7 US mpg, 39.2 UK mpg, 13.9 km/l) |
| Fuel consumption (combined) | 9.1 l/100 km (25.8 US mpg, 31 UK mpg, 11 km/l) |
| CO2 emissions | 218 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 6.8 sec |
| Acceleration 0 – 62 mph | 6.8 sec |
| Acceleration 0 – 60 mph | 6.5 sec |
| Maximum speed | 238 km/h (147.89 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 6.5 kg/Hp, 152.7 Hp/tonne |
| Weight-to-torque ratio | 5.1 kg/Nm, 196.4 Nm/tonne |
| Power | 210 Hp @ 5800 rpm |
| Power per litre | 117.9 Hp/l |
| Torque | 270 Nm @ 2100-5000 rpm (199.14 lb.-ft. @ 2100-5000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | APY, AMK, AUL |
| Engine displacement | 1781 cm3 (108.68 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 86.4 mm (3.4 in.) |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 5 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Coolant | 7 l (7.4 US qt | 6.16 UK qt) |
| Kerb Weight | 1375 kg (3031.36 lbs.) |
| Max. weight | 1935 kg (4265.94 lbs.) |
| Max load | 560 kg (1234.59 lbs.) |
| Trunk (boot) space – minimum | 270 l (9.53 cu. ft.) |
| Trunk (boot) space – maximum | 1020 l (36.02 cu. ft.) |
| Fuel tank capacity | 62 l (16.38 US gal | 13.64 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (8%) | 1600 kg (3527.4 lbs.) |
| Permitted trailer load with brakes (12%) | 1600 kg (3527.4 lbs.) |
| Permitted trailer load without brakes | 720 kg (1587.33 lbs.) |
| Permitted towbar download | 75 kg (165.35 lbs.) |
| Length | 4159 mm (163.74 in.) |
| Width | 1763 mm (69.41 in.) |
| Height | 1415 mm (55.71 in.) |
| Wheelbase | 2519 mm (99.17 in.) |
| Front track | 1527 mm (60.12 in.) |
| Rear (Back) track | 1503 mm (59.17 in.) |
| Drag coefficient (Cd) | 0.33 |
| Minimum turning circle (turning diameter) | 10.9 m (35.76 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/45 R17 |
| Wheel rims size | 7.5J x 17 |
Powertrain & Engine Architecture
The heart of the S3 1.8T quattro is the 1.8-liter, turbocharged inline-four cylinder engine. Engine codes APY, AMK, and AUL were used, with the APY being the most potent. This engine is a derivative of the EA827 family, known for its robust construction and tuning potential. The engine utilizes multi-port fuel injection and a K04 turbocharger with an intercooler to deliver 210 horsepower at 5800 rpm and 270 Nm (199 lb-ft) of torque between 2100 and 5000 rpm. The turbocharger provides a significant boost in power compared to the naturally aspirated engines found in the standard A3. The engine features a dual overhead camshaft (DOHC) valvetrain with five valves per cylinder (three intake, two exhaust), enhancing breathing and contributing to its high specific output. The engine is transversely mounted, a common layout for front-wheel-drive and all-wheel-drive vehicles. The S3 exclusively came with a 6-speed manual transmission, optimized to handle the engine’s torque output and provide precise gear changes.
Driving Characteristics
The S3 1.8T quattro offered a noticeably more engaging driving experience than its standard A3 counterparts. The turbocharger provides a surge of power, delivering strong acceleration. The quattro all-wheel-drive system provides excellent traction, particularly in adverse weather conditions, and allows for confident cornering. While not as brutally fast as later S3 models, the 1.8T quattro felt quick and responsive. The 6-speed manual transmission allows the driver to fully exploit the engine’s powerband. The gear ratios are well-matched, providing good acceleration in each gear. Compared to later, more powerful S3 variants, the 1.8T quattro felt more accessible and less demanding to drive, making it a good choice for drivers who wanted a performance car that was also comfortable and practical.
Equipment & Trim Levels
The S3 1.8T quattro was relatively well-equipped, even by late-1990s standards. Standard features included sport seats upholstered in a unique S3-specific fabric, a leather-wrapped steering wheel and gearshift knob, and aluminum interior trim. Exterior features included a distinctive front bumper with integrated fog lights, side skirts, and a rear spoiler. Optional extras included Recaro sport seats, a sunroof, and a premium audio system. The interior design was functional and sporty, with a focus on providing a comfortable and engaging driving environment.
Chassis & Braking
The S3 1.8T quattro featured a sport-tuned suspension with stiffer springs and dampers compared to the standard A3. The front suspension utilized McPherson struts, while the rear suspension employed a multi-link setup. This configuration provided a good balance between ride comfort and handling precision. Braking duties were handled by ventilated disc brakes on all four wheels, providing ample stopping power. ABS (Anti-lock Braking System) was standard. The chassis was reinforced to handle the increased power and stresses associated with high-performance driving.
Market Reception & Comparison
The Audi S3 1.8T quattro was generally well-received by automotive critics. It was praised for its performance, handling, and practicality. Critics noted that the S3 offered a compelling alternative to other hot hatches, such as the Volkswagen Golf GTI and the Ford Focus ST. Compared to the standard A3, the S3 offered a significant performance upgrade. Compared to later S3 models with more powerful engines, the 1.8T quattro was considered to be more accessible and less prone to turbo lag. Fuel economy was reasonable for a performance car of its era, averaging around 25.8 US mpg in combined driving. Reliability was generally good, although turbocharger issues could occur with improper maintenance.
Legacy
The Audi S3 (8L) 1.8T quattro holds a significant place in automotive history as the first iteration of a now-iconic performance model. The engine, while not the most powerful in the S3 lineage, proved to be durable and capable when properly maintained. Today, well-maintained examples are sought after by enthusiasts. Common issues include turbocharger wear, oil leaks, and age-related deterioration of suspension components. The S3 1.8T quattro remains a popular choice for those seeking a classic hot hatch that offers a blend of performance, practicality, and style.
