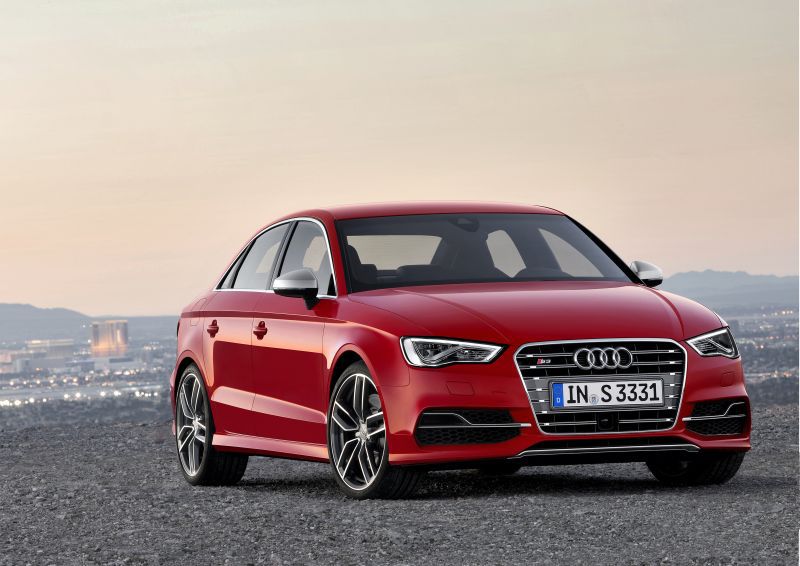

2014-2016 Audi S3 Sedan (8V) 2.0 TFSI (292 Hp) quattro S tronic

The Audi S3 Sedan (8V) 2.0 TFSI quattro S tronic, produced from 2014 to 2016, represents a compelling entry point into the high-performance compact sedan segment. Positioned above the standard A3 Sedan but below the even more potent RS 3, the S3 8V offered a blend of everyday usability, sophisticated technology, and exhilarating performance. It was a key model in Audi’s strategy to broaden the appeal of its ‘S’ performance line, particularly in markets where the four-door sedan body style was favored. This variant, equipped with the 2.0-liter turbocharged four-cylinder engine and the seven-speed S tronic dual-clutch transmission, became a popular choice for enthusiasts seeking a refined yet engaging driving experience.

Technical Specifications

Brand Audi
Model S3
Generation S3 Sedan (8V)
Type (Engine) 2.0 TFSI (292 Hp) quattro S tronic
Start of production 2014
End of production 2016
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Fuel consumption (economy) – urban (EPA) 10.2 l/100 km (23.1 US mpg, 27.7 UK mpg, 9.8 km/l)
Fuel consumption (economy) – extra urban (EPA) 7.6 l/100 km (30.9 US mpg, 37.2 UK mpg, 13.2 km/l)
Fuel consumption (economy) – combined (EPA) 9 l/100 km (26.1 US mpg, 31.4 UK mpg, 11.1 km/l)
Fuel Type Petrol (Gasoline)
Acceleration 0 – 60 mph 4.7 sec
Maximum speed 250 km/h (155.34 mph), Electronically limited
Emission standard ULEV2
Weight-to-power ratio 5.4 kg/Hp, 186.6 Hp/tonne
Weight-to-torque ratio 4.1 kg/Nm, 242.8 Nm/tonne
Power 292 Hp @ 5400-6200 rpm
Power per litre 147.2 Hp/l
Torque 380 Nm @ 1900-5300 rpm (280.27 lb.-ft. @ 1900-5300 rpm)
Engine layout Front, Transverse
Engine Model/Code EA888 / CYFB
Engine displacement 1984 cm3 (121.07 cu. in.)
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82.5 mm (3.25 in.)
Piston Stroke 92.8 mm (3.65 in.)
Compression ratio 9.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 5.7 l (6.02 US qt | 5.02 UK qt)
Coolant 10 l (10.57 US qt | 8.8 UK qt)
Kerb Weight 1565-1570 kg (3450.23 – 3461.26 lbs.)
Trunk (boot) space – minimum 283 l (9.99 cu. ft.)
Fuel tank capacity 55 l (14.53 US gal | 12.1 UK gal)
Length 4469 mm (175.94 in.)
Width 1796 mm (70.71 in.)
Width including mirrors 1960 mm (77.17 in.)
Height 1392 mm (54.8 in.)
Wheelbase 2631 mm (103.58 in.)
Front track 1551 mm (61.06 in.)
Rear (Back) track 1526 mm (60.08 in.)
Front overhang 874 mm (34.41 in.)
Rear overhang 964 mm (37.95 in.)
Drag coefficient (Cd) 0.33
Minimum turning circle (turning diameter) 11 m (36.09 ft.)
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission S tronic
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 340 mm
Rear brakes Ventilated discs, 310 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/40 R18; 235/35 R19
Wheel rims size 8J x 18; 8J x 19

INTRODUCTION

The Audi S3 Sedan (8V) 2.0 TFSI quattro S tronic, launched in 2014 and continuing through 2016, was a significant addition to Audi’s performance lineup. Built on the Volkswagen Group’s MQB platform (specifically the 1HX0/A3 variant), the S3 Sedan aimed to deliver a more practical and accessible performance experience compared to the larger and more expensive S4. This particular configuration, pairing the potent 2.0-liter turbocharged engine with the quick-shifting S tronic dual-clutch transmission and Audi’s renowned quattro all-wheel-drive system, offered a compelling blend of speed, handling, and all-weather capability. It served as a direct competitor to models like the BMW 2 Series Gran Coupe and the Mercedes-Benz CLA 45 AMG.

Powertrain & Engine Architecture

At the heart of the S3 Sedan 2.0 TFSI lies the EA888 engine, specifically the CYFB code variant. This 2.0-liter inline-four cylinder engine utilizes direct fuel injection (FSI) and a single turbocharger with an intercooler to produce 292 horsepower and 280 lb-ft of torque. The engine features a dual overhead camshaft (DOHC) valvetrain with four valves per cylinder, optimizing airflow for increased power output. The S tronic six-speed dual-clutch transmission provides incredibly fast and smooth gear changes, contributing significantly to the car’s acceleration. This transmission allows for both fully automatic operation and manual gear selection via steering wheel-mounted paddles. The quattro all-wheel-drive system employs a multi-plate clutch to distribute power between the front and rear axles, enhancing traction and stability, especially in adverse conditions.

Driving Characteristics

The S3 Sedan 2.0 TFSI quattro S tronic delivers a noticeably engaging driving experience. The 292 hp engine provides ample power for swift acceleration, achieving 0-60 mph in just 4.7 seconds. The S tronic transmission’s quick shifts and the quattro system’s traction contribute to a responsive and confident feel. Compared to the standard A3 Sedan, the S3 offers a firmer suspension setup and more direct steering, resulting in improved handling and cornering ability. While not as raw or visceral as some of its rear-wheel-drive competitors, the S3 provides a balanced and refined driving experience suitable for both daily commuting and spirited driving. The gear ratios are tuned for acceleration, with the first few gears being relatively short, allowing for rapid launches.

Equipment & Trim Levels

The S3 Sedan 2.0 TFSI quattro S tronic came well-equipped as standard. Key features included leather and Alcantara sport seats, a flat-bottomed steering wheel, aluminum interior trim, and Audi’s MMI infotainment system with a 7-inch display. Standard exterior features included S-specific bumpers, side skirts, a rear spoiler, and quad exhaust outlets. Optional extras included a panoramic sunroof, a Bang & Olufsen sound system, navigation, and various driver-assistance systems such as adaptive cruise control and blind-spot monitoring. The interior upholstery typically featured a combination of black leather and dark aluminum trim, creating a sporty and sophisticated ambiance.

Chassis & Braking

The S3 Sedan’s chassis was specifically tuned to handle the increased power output. It featured a McPherson strut front suspension and a multi-link rear suspension, both with stiffer springs and dampers compared to the standard A3. The braking system consisted of ventilated discs on all four wheels, with larger front discs (340mm) providing ample stopping power. Anti-lock braking system (ABS) was standard, along with electronic stability control (ESC). The S3 also featured a progressive steering system, which varied the steering ratio based on speed and driving conditions, providing increased agility at lower speeds and improved stability at higher speeds.

Market Reception & Comparison

The Audi S3 Sedan 2.0 TFSI quattro S tronic was generally well-received by automotive critics. It was praised for its potent engine, quick transmission, and all-weather capability. Compared to the manual transmission versions of the S3, the S tronic offered faster acceleration and a more convenient driving experience, although some enthusiasts preferred the greater driver involvement of a manual gearbox. Fuel economy was respectable for a performance sedan, averaging around 26.1 US mpg in combined driving. Reliability was generally good, although some owners reported minor issues with the turbocharger and the dual-clutch transmission. Compared to the higher-performance RS 3, the S3 offered a more affordable and practical option, while still delivering a thrilling driving experience.

Legacy

The Audi S3 Sedan (8V) 2.0 TFSI quattro S tronic has established itself as a desirable used performance car. The EA888 engine, while requiring regular maintenance, is generally considered robust and reliable. The S tronic transmission, if properly maintained with regular fluid changes, can provide years of trouble-free operation. Today, these S3 Sedans are sought after by enthusiasts looking for a well-rounded and capable performance sedan that offers a blend of speed, luxury, and practicality. Its continued presence in the used car market is a testament to its enduring appeal and the quality of its engineering.
