Technical Specifications
| Brand | Audi |
| Model | TT |
| Generation | TT Coupe (8N) |
| Type (Engine) | 1.8 T (180 Hp) quattro |
| Start of production | October, 1998 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 4 |
| Doors | 3 |
| Fuel consumption (urban) | 12.8 l/100 km (18.4 US mpg, 22.1 UK mpg, 7.8 km/l) |
| Fuel consumption (extra urban) | 6.8 l/100 km (34.6 US mpg, 41.5 UK mpg, 14.7 km/l) |
| Fuel consumption (combined) | 9 l/100 km (26.1 US mpg, 31.4 UK mpg, 11.1 km/l) |
| CO2 emissions | 216 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 7.5 sec |
| Acceleration 0 – 62 mph | 7.5 sec |
| Acceleration 0 – 60 mph | 7.1 sec |
| Maximum speed | 226 km/h (140.43 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 7.4 kg/Hp, 134.3 Hp/tonne |
| Weight-to-torque ratio | 5.7 kg/Nm, 175.4 Nm/tonne |
| Power | 180 Hp @ 5500 rpm |
| Power per litre | 101.1 Hp/l |
| Torque | 235 Nm @ 1950-5000 rpm (173.33 lb.-ft. @ 1950-5000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | AJQ, APP, ATC, AUQ |
| Engine displacement | 1781 cm3 (108.68 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 86.4 mm (3.4 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 5 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Turbocharger |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Coolant | 7 l (7.4 US qt | 6.16 UK qt) |
| Kerb Weight | 1340 kg (2954.19 lbs.) |
| Max. weight | 1710 kg (3769.9 lbs.) |
| Max load | 370 kg (815.71 lbs.) |
| Trunk (boot) space – minimum | 220 l (7.77 cu. ft.) |
| Trunk (boot) space – maximum | 490 l (17.3 cu. ft.) |
| Fuel tank capacity | 62 l (16.38 US gal | 13.64 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Length | 4041 mm (159.09 in.) |
| Width | 1764 mm (69.45 in.) |
| Height | 1345 mm (52.95 in.) |
| Wheelbase | 2429 mm (95.63 in.) |
| Front track | 1528 mm (60.16 in.) |
| Rear (Back) track | 1505 mm (59.25 in.) |
| Drag coefficient (Cd) | 0.34 |
| Minimum turning circle | 10.5 m (34.45 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/55 R16 |
| Wheel rims size | 7J x 16 |

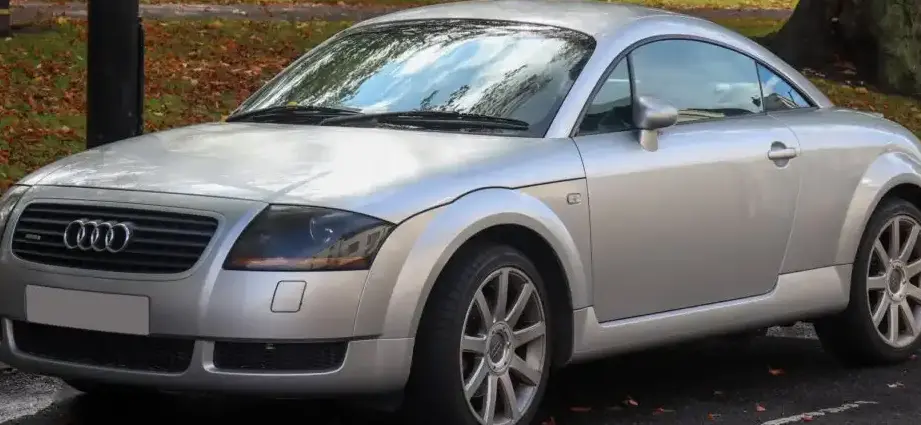

The Audi TT Coupe (8N) 1.8T quattro, produced from October 1998 to 2000, marked a significant entry point into the first generation of Audi’s iconic sports coupe. Positioned within the 8N platform – shared with the Volkswagen Golf Mk4, Bora, and New Beetle – the 1.8T quattro offered a compelling blend of performance, style, and all-weather capability. This variant served as a mid-range offering, bridging the gap between the base 1.8T front-wheel-drive model and the more potent 225 horsepower 1.8T quattro. It quickly became a popular choice for buyers seeking a sporty and sophisticated coupe without the higher price tag of the flagship model.
Powertrain & Engine Architecture
The heart of the 1.8T quattro is the 1781cc, inline-four cylinder engine, identifiable by engine codes AJQ, APP, ATC, or AUQ. This engine utilizes a single turbocharger with an intercooler to boost power output. The fuel system employs multi-port fuel injection, delivering fuel directly to each cylinder. The engine features a dual overhead camshaft (DOHC) valvetrain with five valves per cylinder (three intake, two exhaust), optimizing airflow for improved performance. The turbocharger provides significant boost, contributing to the engine’s responsive nature. The 5-speed manual transmission was standard, delivering power to all four wheels via Audi’s renowned quattro all-wheel-drive system. This system utilizes a Torsen differential, automatically distributing torque between the front and rear axles based on traction conditions.
Driving Characteristics
The 180 horsepower and 235 Nm (173 lb-ft) of torque provided by the 1.8T engine, coupled with the quattro all-wheel-drive system, resulted in a balanced and engaging driving experience. Acceleration from 0-60 mph took approximately 7.1 seconds, making it a respectable performer for its time. While not as rapid as the 225 hp variant, the 180 hp model offered a more accessible powerband, with usable torque available from as low as 1950 rpm. The quattro system provided excellent grip and stability, particularly in adverse weather conditions. The 5-speed manual transmission offered precise shifts, enhancing driver involvement. The gear ratios were well-matched to the engine’s characteristics, providing adequate acceleration in all gears.
Equipment & Trim Levels
The 1.8T quattro typically came equipped with a generous array of standard features. These included power windows, power locks, air conditioning, and a basic audio system. Interior upholstery was typically cloth, although leather options were available. The dashboard featured a clean and modern design, characteristic of Audi’s styling at the time. Optional extras included a sunroof, upgraded audio systems, heated front seats, and xenon headlights. The 1.8T quattro often featured sport seats with enhanced bolstering, providing additional support during spirited driving.
Chassis & Braking
The 8N TT Coupe utilized an independent suspension system at all four wheels. The front suspension employed McPherson struts with coil springs and an anti-roll bar, while the rear suspension featured a multi-link setup with a stabilizer bar. This configuration provided a comfortable ride while maintaining good handling characteristics. Braking duties were handled by ventilated discs at the front and solid discs at the rear. The anti-lock braking system (ABS) was standard, enhancing braking performance and stability. The chassis was designed to be lightweight yet rigid, contributing to the car’s agility.
Market Reception & Comparison
The Audi TT Coupe (8N) 1.8T quattro was generally well-received by automotive critics. It was praised for its stylish design, engaging driving dynamics, and all-weather capability. Compared to the base 1.8T front-wheel-drive model, the quattro version offered significantly improved traction and handling. While the 225 hp 1.8T quattro provided more outright performance, the 180 hp version offered a more affordable entry point into the TT range. Fuel economy was reasonable for a sports coupe, averaging around 26.1 US mpg in combined driving. Reliability was generally good, although turbocharger issues could occasionally arise with higher mileage examples.
Legacy
The Audi TT Coupe (8N) 1.8T quattro has become a sought-after classic among enthusiasts. The combination of its distinctive styling, engaging driving dynamics, and relative affordability has made it a popular choice in the used car market. The 1.8T engine, while not without its potential issues, is generally considered to be robust and reliable when properly maintained. The quattro all-wheel-drive system continues to provide excellent traction and stability, making these cars enjoyable to drive in all conditions. Today, well-maintained examples of the 1.8T quattro are increasingly valued by collectors and enthusiasts alike, cementing its place as a significant model in Audi’s history.
