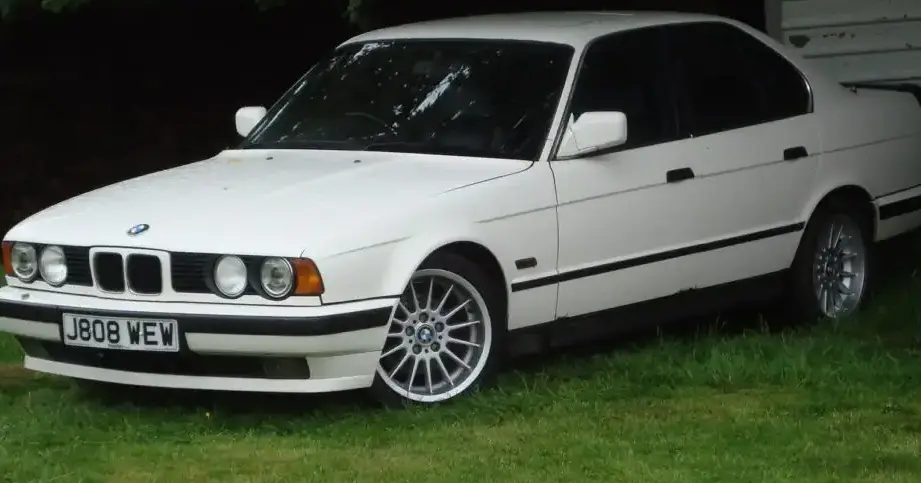

The BMW 540i, produced between 1992 and 1995, represented the pinnacle of performance for the E34 generation 5 Series. Positioned as the flagship model, it featured a naturally aspirated V8 engine and an automatic transmission, offering a blend of luxury and spirited driving. This variant occupied the top tier of the E34 lineup, appealing to buyers seeking a more powerful and refined experience than the 525i or 530i models. The 540i was a key component in BMW’s strategy to compete with luxury sedans from Mercedes-Benz and Audi, establishing a reputation for driver engagement and technological innovation.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series (E34) |
| Type (Engine) | 540i V8 (286 Hp) Automatic |
| Start of production | 1992 |
| End of production | 1995 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (combined) | 11.4 l/100 km |
| Fuel consumption (US mpg) | 20.6 US mpg |
| Fuel consumption (UK mpg) | 24.8 UK mpg |
| Fuel consumption (km/l) | 8.8 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 6.8 sec |
| Acceleration 0 – 62 mph | 6.8 sec |
| Acceleration 0 – 60 mph | 6.5 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Weight-to-power ratio | 5.6 kg/Hp |
| Weight-to-torque ratio | 4 kg/Nm |
| Power | 286 Hp @ 5800 rpm |
| Power per litre | 71.8 Hp/l |
| Torque | 400 Nm @ 4500 rpm (295.02 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M60B40 |
| Engine displacement | 3982 cm3 (243 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 89 mm (3.5 in.) |
| Piston Stroke | 80 mm (3.15 in.) |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 7.5 l (7.93 US qt | 6.6 UK qt) |
| Coolant capacity | 12.5 l (13.21 US qt | 11 UK qt) |
| Kerb Weight | 1605 kg (3538.42 lbs.) |
| Max. weight | 2115 kg (4662.78 lbs.) |
| Max load | 510 kg (1124.36 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Length | 4720 mm (185.83 in.) |
| Width | 1751 mm (68.94 in.) |
| Height | 1412 mm (55.59 in.) |
| Wheelbase | 2761 mm (108.7 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear (Back) track | 1495 mm (58.86 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, automatic transmission |
| Front suspension | Wishbone |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/60 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the 540i is the M60B40 engine, a 4.0-liter naturally aspirated V8. This engine utilizes a 90-degree V-angle, contributing to its smooth operation and relatively compact size. It features a cast iron block with aluminum cylinder heads, a design choice that balanced durability with weight reduction. The M60B40 employs multi-port fuel injection, delivering fuel directly to each cylinder for precise control and efficient combustion. The double overhead camshaft (DOHC) valvetrain, with four valves per cylinder, further enhances breathing and power output. The automatic transmission paired with the M60B40 is a 5-speed unit, designed to provide smooth and comfortable shifts. While not as sporty as a manual transmission, it complemented the 540i’s grand touring character.
Driving Characteristics
The 540i Automatic offered a distinctly different driving experience compared to its 6-cylinder siblings or manual transmission variants. The automatic transmission, while providing convenience, did slightly diminish the sense of direct control. However, the substantial torque of the V8 engine – 295 lb-ft at 4500 rpm – meant that the car felt responsive in most driving situations. Acceleration from 0-60 mph took approximately 6.5 seconds, a respectable figure for the early 1990s. The automatic transmission’s gear ratios were tuned for comfortable cruising, prioritizing smooth transitions over aggressive downshifts. Compared to the more nimble 525i or 530i, the 540i felt larger and heavier, but the V8’s power more than compensated for the added weight, providing effortless highway passing and a refined overall driving experience.
Equipment & Trim Levels
The 540i came standard with a generous array of features, reflecting its position as the premium model in the E34 lineup. Standard equipment typically included leather upholstery, power-adjustable front seats with memory function, a sunroof, automatic climate control, and a high-quality sound system. Optional extras included a navigation system (a rarity for the time), upgraded leather trim, and a premium sound system. The interior design was characterized by its understated elegance and focus on driver comfort. The dashboard layout was clean and functional, with all essential controls within easy reach.
Chassis & Braking
The E34 540i utilized a robust chassis with independent suspension at all four wheels. The front suspension employed a MacPherson strut design, while the rear featured a semi-trailing arm setup. This suspension configuration provided a good balance between ride comfort and handling precision. The 540i was equipped with ventilated disc brakes on all four wheels, providing ample stopping power. An Anti-lock Braking System (ABS) was standard, enhancing safety and stability during hard braking. The steering was a rack-and-pinion system with hydraulic power assistance, offering precise and responsive steering feel.
Market Reception & Comparison
The 540i was generally well-received by automotive critics, who praised its powerful engine, luxurious interior, and refined driving experience. However, some reviewers noted that the automatic transmission could feel slightly sluggish compared to the manual option. Fuel economy was also a concern, with the V8 engine consuming significantly more fuel than the 6-cylinder alternatives. Compared to the 525i and 530i, the 540i offered a substantial performance upgrade, but at a higher price point. The 540i’s main competitors were the Mercedes-Benz E-Class and Audi 100, both of which offered similar levels of luxury and performance.
Legacy
The M60B40 engine, while known for its power and smoothness, can be prone to certain issues with age, including coolant leaks and valve stem seal deterioration. However, with proper maintenance, these engines can remain reliable for many years. The 540i has developed a loyal following among BMW enthusiasts, who appreciate its classic styling, powerful engine, and engaging driving experience. Today, well-maintained examples of the E34 540i are becoming increasingly collectible, representing a desirable piece of BMW’s heritage. The automatic transmission, while not the first choice for performance enthusiasts, remains a reliable and comfortable option for everyday driving.
