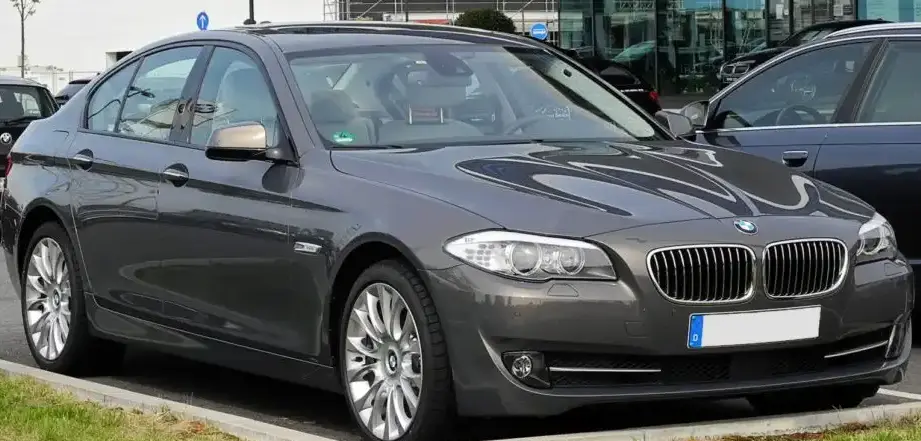

The BMW 5 Series F10 535d Steptronic, produced from 2011 to 2013, represented a compelling blend of performance and efficiency within the fifth generation of BMW’s flagship executive sedan. Positioned as a mid-to-high range offering, the 535d catered to buyers seeking the refinement of a 5 Series with the added benefits of a potent diesel engine and the convenience of an eight-speed automatic transmission. It occupied a space between the more accessible 520d and the performance-focused 550i models, appealing to those prioritizing torque and fuel economy without sacrificing driving pleasure. This variant was primarily sold in Europe and other markets where diesel engines held significant popularity, though limited numbers were available in North America.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Sedan (F10) |
| Type (Engine) | 535d (313 Hp) Steptronic |
| Start of production | 2011 |
| End of production | 2013 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 6.5-6.7 l/100 km (36.2 – 35.1 US mpg) |
| Fuel consumption (extra urban) | 4.8-5.0 l/100 km (49 – 47 US mpg) |
| Fuel consumption (combined) | 5.4-5.6 l/100 km (43.6 – 42 US mpg) |
| CO2 emissions | 142-148 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 5.5 sec |
| Acceleration 0 – 62 mph | 5.5 sec |
| Acceleration 0 – 60 mph | 5.2 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 5.5 kg/Hp, 181.4 Hp/tonne |
| Weight-to-torque ratio | 2.7 kg/Nm, 365.2 Nm/tonne |
| Power | 313 Hp @ 4400 rpm |
| Torque | 630 Nm @ 1500-2500 rpm (464.66 lb.-ft. @ 1500-2500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | N57D30B |
| Engine displacement | 2993 cm3 (182.64 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Twin-power turbo, Intercooler |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Coolant | 10 l (10.57 US qt | 8.8 UK qt) |
| Kerb Weight | 1725 kg (3802.97 lbs.) |
| Max. weight | 2335 kg (5147.79 lbs.) |
| Max load | 610 kg (1344.82 lbs.) |
| Trunk (boot) space – minimum | 520 l (18.36 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2000 kg (4409.25 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 90 kg (198.42 lbs.) |
| Length | 4899 mm (192.87 in.) |
| Width | 1860 mm (73.23 in.) |
| Height | 1464 mm (57.64 in.) |
| Wheelbase | 2968 mm (116.85 in.) |
| Front track | 1600 mm (62.99 in.) |
| Rear (Back) track | 1627 mm (64.06 in.) |
| Ride height (ground clearance) | 141 mm (5.55 in.) |
| Drag coefficient (Cd) | 0.28 |
| Minimum turning circle (turning diameter) | 11.95 m (39.21 ft.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears and type of gearbox | 8 gears, automatic transmission Steptronic |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/55 R17; 245/45 R18; 275/40 R18; 245/40 R19; 275/35 R19; 245/35 R20; 275/30 R20 |
| Wheel rims size | 8J x 17; 8J x 18; 9J x 18; 8.5J x 19; 9J x 19; 8.5J x 20; 9J x 20 |
Powertrain & Engine Architecture
The heart of the 535d Steptronic is BMW’s N57D30B inline-six diesel engine. This 3.0-liter engine utilizes a sophisticated common-rail direct injection system, delivering fuel at extremely high pressures for optimized combustion. The N57 engine family is renowned for its durability and efficiency. Crucially, this variant features a twin-turbocharger setup – a smaller turbo for immediate response at low RPMs and a larger turbo for sustained power at higher speeds. An intercooler further enhances performance by cooling the compressed intake air. The engine produces 313 horsepower at 4400 rpm and a substantial 630 Nm (464.66 lb-ft) of torque between 1500 and 2500 rpm. This broad torque curve is a hallmark of diesel engines and contributes significantly to the 535d’s effortless acceleration. The engine is paired with BMW’s eight-speed Steptronic automatic transmission, known for its smooth shifts and intelligent programming. This transmission allows for both fully automatic operation and manual gear selection via steering wheel-mounted paddles or the gear selector.
Driving Characteristics
The 535d Steptronic delivers a distinctly different driving experience compared to its gasoline-powered siblings or even lower-powered diesel variants. The abundant low-end torque allows for strong acceleration in virtually any gear, making overtaking maneuvers effortless. While not as outright sporty as the 550i, the 535d offers a refined and confident driving experience. The eight-speed transmission is well-matched to the engine’s characteristics, providing seamless gear changes and contributing to excellent fuel economy. The gear ratios are tuned for both performance and efficiency, with taller gears for relaxed cruising on the highway. Compared to a manual transmission equipped 535d, the Steptronic offers greater convenience, particularly in urban driving, but may slightly diminish driver engagement.
Equipment & Trim Levels
The 535d Steptronic typically came well-equipped as standard. Interior features included leather upholstery, power-adjustable front seats with memory function, automatic climate control, and a high-quality audio system. Standard safety features included ABS, stability control, multiple airbags, and parking sensors. Optional extras were plentiful, including a navigation system, premium sound system, head-up display, adaptive cruise control, and various interior trim options. The 535d often sat in a middle ground in terms of trim levels, offering a step up in luxury and performance compared to the base models but falling short of the fully-loaded 550i.
Chassis & Braking
The F10 5 Series utilized a double-wishbone front suspension and an independent multi-link rear suspension, providing a comfortable yet controlled ride. The 535d, due to its weight, often featured slightly stiffer spring rates and dampers compared to the lighter 520d models. Braking duties were handled by ventilated disc brakes on all four wheels, providing ample stopping power. ABS and stability control were standard features, enhancing safety and control in various driving conditions.
Market Reception & Comparison
The 535d Steptronic was generally well-received by automotive critics. It was praised for its strong performance, excellent fuel economy, and refined driving experience. Compared to the 520d, the 535d offered a significant performance upgrade, while delivering comparable fuel efficiency. Against the 550i, the 535d provided a more economical alternative without sacrificing too much in terms of driving pleasure. However, some critics noted that the diesel engine’s character lacked the responsiveness and sound of the gasoline engines.
Legacy
The N57 engine family, including the N57D30B found in the 535d, has proven to be remarkably durable and reliable. With proper maintenance, these engines can easily exceed 200,000 miles. The 535d Steptronic remains a popular choice in the used car market, particularly in Europe, due to its combination of performance, efficiency, and refinement. Common maintenance items include regular oil changes, filter replacements, and occasional attention to the turbocharger and fuel injection system. The Steptronic transmission is also generally reliable, but requires periodic fluid changes to ensure smooth operation. Today, the F10 535d represents a compelling value proposition for buyers seeking a luxurious and capable executive sedan.
