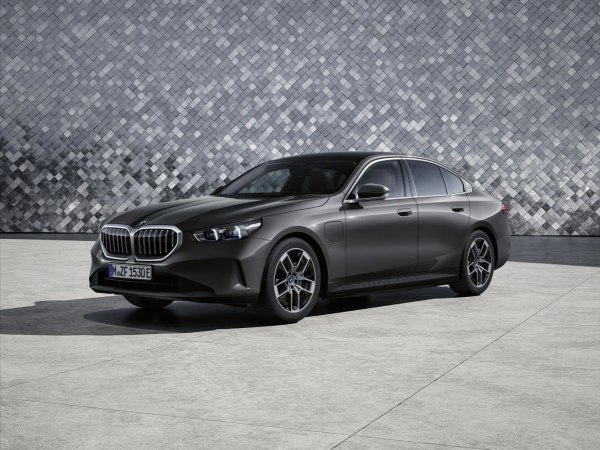

The BMW 5 Series G60 530i xDrive, launched in October 2023, represents the eighth generation of BMW’s mid-size executive sedan. This variant, equipped with a 2.0-liter turbocharged inline-four engine and a 48-volt mild hybrid system, occupies a central position within the G60 lineup, offering a balance between performance, efficiency, and technology. The 530i xDrive is designed to appeal to buyers seeking a refined driving experience with all-weather capability, provided by BMW’s xDrive all-wheel-drive system. It serves as a stepping stone between the base 530i models and the more performance-oriented M550i xDrive.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Sedan (G60) |
| Type | 530i (255 Hp) Mild Hybrid xDrive Steptronic |
| Start of production | October, 2023 |
| Powertrain Architecture | MHEV (Mild Hybrid Electric Vehicle) |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Combined fuel consumption (WLTP) | 6.6-7.5 l/100 km (35.6 – 31.4 US mpg) |
| CO2 emissions (WLTP) | 151-171 g/km |
| Fuel consumption (urban – EPA) | 8.7 l/100 km (27 US mpg) |
| Fuel consumption (extra urban – EPA) | 6.7 l/100 km (35.1 US mpg) |
| Fuel consumption (combined – EPA) | 7.8 l/100 km (30.2 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 6.1 sec |
| Acceleration 0 – 62 mph | 6.1 sec |
| Acceleration 0 – 60 mph | 5.8 sec |
| Maximum speed | 210 km/h (130.49 mph) |
| Weight-to-power ratio | 7.4 kg/Hp |
| Weight-to-torque ratio | 4.7 kg/Nm |
| Gross battery capacity | 0.9 kWh |
| Battery voltage | 48 V |
| Battery technology | Lithium-ion (Li-Ion) |
| Electric motor power | 11 Hp |
| Electric motor Torque | 25 Nm (18.44 lb.-ft.) |
| Engine Power | 255 Hp @ 4700-6500 rpm |
| Engine Torque | 400 Nm @ 1600-4500 rpm (295.02 lb.-ft.) |
| Engine Model/Code | B48B20O2 |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm (3.23 in.) |
| Piston Stroke | 94.6 mm (3.72 in.) |
| Compression ratio | 10.5:1 |
| Engine oil capacity | 5.25 l (5.55 US qt | 4.62 UK qt) |
| Kerb Weight | 1886 kg (4157.92 lbs.) |
| Max. weight | 2415 kg (5324.16 lbs.) |
| Max load | 529 kg (1166.25 lbs.) |
| Trunk (boot) space – minimum | 520 l (18.36 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 5060 mm (199.21 in.) |
| Width | 1900 mm (74.8 in.) |
| Width including mirrors | 2156 mm (84.88 in.) |
| Height | 1515 mm (59.65 in.) |
| Wheelbase | 2995 mm (117.91 in.) |
| Front track | 1623 mm (63.9 in.) |
| Rear track | 1656 mm (65.2 in.) |
| Front overhang | 945 mm (37.2 in.) |
| Rear overhang | 1120 mm (44.09 in.) |
| Ride height (ground clearance) | 155 mm (6.1 in.) |
| Minimum turning circle | 11.8 m (38.71 ft.) |
| Drivetrain Architecture | ICE and electric motor drive all four wheels |
| Drive wheel | All wheel drive (4×4) |
| Number of gears | 8 |
| Gearbox type | Automatic transmission Steptronic |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Tires size (Front) | 245/45 R19; 245/40 R20; 245/35 R21 |
| Tires size (Rear) | 245/45 R19; 275/35 R20; 275/30 R21 |
Powertrain & Engine Architecture
At the heart of the 530i xDrive lies BMW’s B48B20O2 2.0-liter inline-four cylinder engine. This engine benefits from a single, twin-scroll turbocharger and direct fuel injection, producing 255 horsepower at 4700-6500 rpm and 295 lb-ft of torque between 1600-4500 rpm. The mild hybrid system, utilizing a 48-volt electrical architecture, adds an electric motor capable of providing up to 11 hp and 18 lb-ft of torque, assisting the engine during acceleration and enabling smoother start-stop operation. The engine incorporates BMW’s VALVETRONIC variable valve timing and Double-VANOS variable camshaft timing systems for optimized efficiency and responsiveness. Power is transmitted to all four wheels via an eight-speed Steptronic automatic transmission, known for its quick and smooth shifts.
Driving Characteristics
The 530i xDrive delivers a refined and comfortable driving experience. The mild hybrid system provides a noticeable boost in low-end torque, resulting in brisk acceleration. While not as overtly sporty as higher-performance 5 Series models, the 530i xDrive offers ample power for everyday driving and highway passing. The xDrive all-wheel-drive system provides excellent traction in various weather conditions. The eight-speed automatic transmission is well-tuned, offering seamless gear changes and contributing to the car’s overall smoothness. The gear ratios are optimized for both fuel efficiency and responsive acceleration. Compared to a manual transmission equipped 530i (not offered in the US market for this generation), the automatic prioritizes ease of use and comfort over outright driver engagement.
Equipment & Trim Levels
The 530i xDrive comes standard with a comprehensive suite of features, including BMW’s iDrive 8.5 infotainment system with a 14.9-inch touchscreen display, a digital instrument cluster, and a premium sound system. Standard interior appointments include leatherette upholstery, power-adjustable front seats, and ambient lighting. Available options include genuine leather upholstery, ventilated front seats, a head-up display, and a panoramic sunroof. Driver assistance features such as lane departure warning, forward collision warning, and automatic emergency braking are also standard.
Chassis & Braking
The G60 5 Series utilizes a sophisticated chassis design featuring a double-wishbone front suspension and a multi-link rear suspension. The suspension is tuned to provide a balance between comfort and handling. The 530i xDrive is equipped with ventilated disc brakes on all four wheels, providing ample stopping power. The electronic stability control system and anti-lock braking system (ABS) work in conjunction to enhance safety and stability. The steering system is an electric power-assisted rack-and-pinion setup, offering precise and responsive steering feel.
Market Reception & Comparison
The 530i xDrive has been generally well-received by automotive critics, praised for its comfortable ride, refined interior, and efficient powertrain. Compared to the 540i and M550i xDrive models, the 530i xDrive offers a more affordable entry point into the 5 Series range. While the 540i provides significantly more power, the 530i xDrive delivers a compelling combination of performance and fuel economy. The mild hybrid system contributes to improved fuel efficiency compared to previous generations of the 5 Series.
Legacy
The B48 engine family has proven to be relatively reliable, and the addition of the 48-volt mild hybrid system is expected to further enhance its durability. The G60 5 Series, including the 530i xDrive, is expected to hold its value well in the used car market due to its reputation for quality and refinement. As BMW continues to transition towards electric mobility, the 530i xDrive represents a bridge between traditional internal combustion engines and the future of automotive technology.
