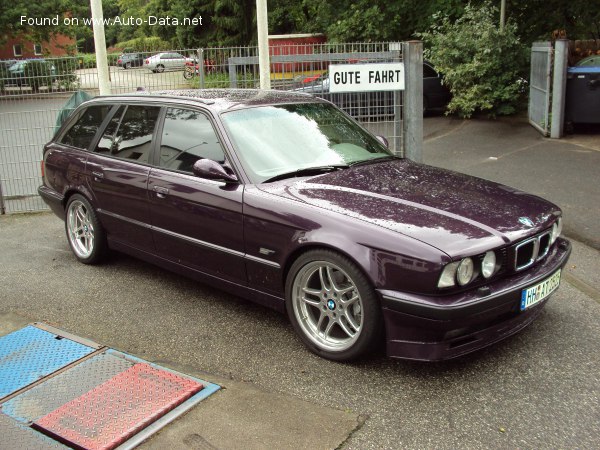

The BMW 5 Series Touring (E34) 518i, produced from 1995 to 1996, represents an entry point into the desirable E34 wagon lineup. Positioned as the base model, it offered the practicality of a station wagon (“Touring” in BMW parlance) with a focus on fuel efficiency and affordability within the premium segment. This variant was primarily sold in Europe, where the market for estate cars was, and remains, significantly stronger than in North America. The 518i utilized BMW’s M43B18 engine, paired with a 5-speed manual transmission, offering a balance between usability and the brand’s renowned driving dynamics. It served as an alternative to the more powerful 520i, 525i, and 530i models, appealing to buyers prioritizing economy over outright performance.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Touring (E34) |
| Type (Engine) | 518i (115 Hp) |
| Start of production | 1995 |
| End of production | 1996 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (combined) | 8.2 l/100 km |
| Fuel consumption (US mpg) | 28.7 US mpg |
| Fuel consumption (UK mpg) | 34.4 UK mpg |
| Fuel consumption (km/l) | 12.2 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.2 sec |
| Acceleration 0 – 62 mph | 13.2 sec |
| Acceleration 0 – 60 mph | 12.5 sec |
| Maximum speed | 192 km/h (119.3 mph) |
| Weight-to-power ratio | 12.6 kg/Hp |
| Weight-to-torque ratio | 8.6 kg/Nm |
| Power | 115 Hp @ 5500 rpm |
| Power per litre | 64 Hp/l |
| Torque | 168 Nm @ 3900 rpm (123.91 lb.-ft. @ 3900 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M43B18 |
| Engine displacement | 1796 cm3 (109.6 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 81 mm (3.19 in.) |
| Compression ratio | 9.7:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 4 l (4.23 US qt | 3.52 UK qt) |
| Coolant capacity | 7.2 l (7.61 US qt | 6.34 UK qt) |
| Kerb Weight | 1445 kg (3185.68 lbs.) |
| Max. weight | 2015 kg (4442.31 lbs.) |
| Max load | 570 kg (1256.63 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Trunk (boot) space – maximum | 910 l (32.14 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Length | 4720 mm (185.83 in.) |
| Width | 1751 mm (68.94 in.) |
| Height | 1417 mm (55.79 in.) |
| Wheelbase | 2761 mm (108.7 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear track | 1495 mm (58.86 in.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Spring Strut |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Power steering | Hydraulic Steering |
| Tires size | 205/60 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the 518i Touring is the M43B18, a 1.8-liter inline-four cylinder engine. This engine, part of BMW’s M43 family, was known for its relatively smooth operation and decent fuel economy. It featured a single overhead camshaft (OHC) design, operating two valves per cylinder. Fuel delivery was handled by a multi-port fuel injection system, contributing to improved efficiency and reduced emissions compared to earlier carbureted BMW engines. The M43B18 produced 115 horsepower at 5500 rpm and 168 Nm (124 lb-ft) of torque at 3900 rpm. The engine’s longitudinal mounting and rear-wheel-drive configuration were hallmarks of BMW’s engineering philosophy at the time. The 5-speed manual transmission provided precise gear changes and allowed drivers to make the most of the engine’s power band.
Driving Characteristics
The 518i Touring, with its 115 hp and manual transmission, offered a driving experience focused on usability rather than outright speed. Acceleration from 0 to 60 mph took around 12.5 seconds, and top speed was approximately 119 mph. While not particularly quick by modern standards, the 518i provided sufficient power for everyday driving and highway cruising. The manual gearbox allowed for a more engaging driving experience compared to the optional automatic transmission, offering greater control over the engine’s power delivery. The gear ratios were tuned for fuel efficiency, but still allowed for brisk acceleration when needed. Compared to the higher-output 520i and 525i models, the 518i felt noticeably less powerful, particularly when fully loaded or tackling steep inclines. However, its lighter weight and more economical engine made it a more pleasant choice for urban driving.
Equipment & Trim Levels
The 518i Touring typically came with a fairly standard level of equipment. Interior upholstery was usually cloth, although leather was available as an option. Standard features included power windows, central locking, and an AM/FM radio. Optional extras included a sunroof, air conditioning, and upgraded audio systems. The dashboard layout was typical of the E34 generation, with a straightforward design and easy-to-read gauges. Trim levels were relatively simple, with most variations coming from the addition of optional packages. The focus was on providing a comfortable and functional interior rather than luxurious appointments.
Chassis & Braking
The E34 5 Series Touring featured a robust chassis with independent suspension at all four wheels. The front suspension utilized a MacPherson strut design, while the rear employed a semi-trailing arm setup. This configuration provided a good balance between ride comfort and handling. The 518i Touring was equipped with disc brakes on all four wheels, offering adequate stopping power for its weight class. Anti-lock braking system (ABS) was standard, enhancing safety in emergency braking situations. The steering was hydraulic power-assisted, providing light and precise control. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The 518i Touring was generally well-received by automotive critics as a practical and affordable entry point into the E34 Touring range. It was praised for its fuel efficiency, comfortable ride, and spacious interior. However, some critics noted its lack of outright performance compared to the more powerful models. In terms of fuel economy, the 518i outperformed the 520i and 525i, making it a more attractive option for drivers covering long distances. Reliability was generally good, although the M43 engine was known to be susceptible to coolant leaks over time. Compared to competitors such as the Mercedes-Benz C-Class Estate and the Audi 80 Avant, the 518i offered a more engaging driving experience and a more spacious interior.
Legacy
The BMW E34 5 Series Touring, including the 518i variant, has become a highly sought-after classic car. The M43B18 engine, while not the most powerful in the lineup, is generally considered reliable and relatively easy to maintain. Today, well-maintained examples of the 518i Touring command respectable prices in the used car market. Its combination of practicality, driving dynamics, and classic BMW styling has ensured its enduring appeal among enthusiasts. The E34 Touring remains a testament to BMW’s commitment to building high-quality, driver-focused vehicles.
