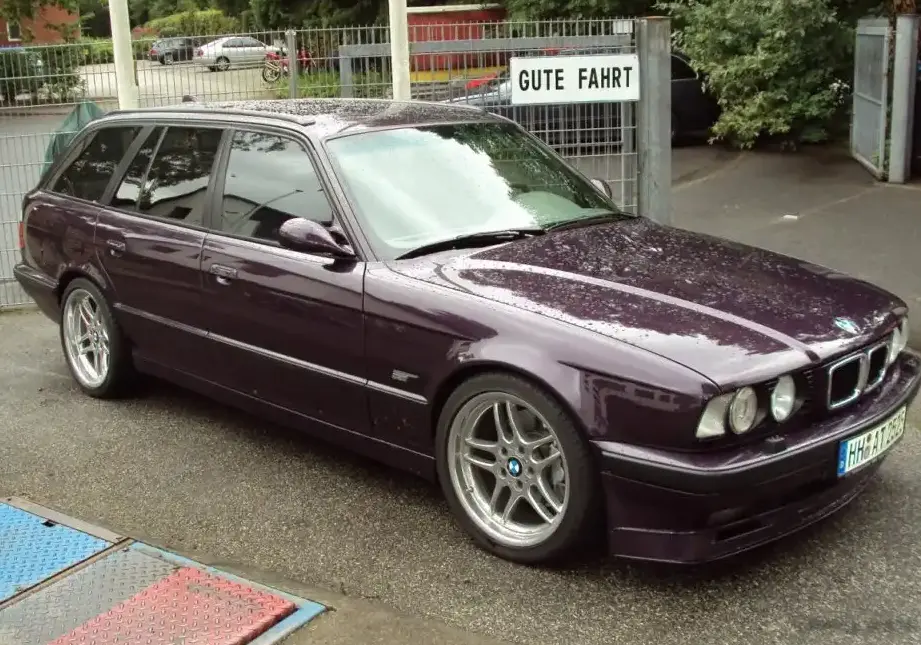

The BMW 5 Series Touring (E34) 540i, produced between 1993 and 1997, represented the pinnacle of performance and practicality within the E34 generation of BMW’s mid-size executive car. As the flagship variant of the Touring (estate) body style, the 540i combined the spaciousness expected of a wagon with the potent power of BMW’s V8 engine. It was positioned as the premium offering, catering to buyers who desired both performance and the versatility of a larger cargo area. The E34 5 Series, launched in 1988, was a significant step forward for BMW, introducing advancements in chassis technology, engine design, and overall refinement. The Touring version, arriving later in the production cycle, further enhanced the model’s appeal.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Touring (E34) |
| Type (Engine) | 540i (286 Hp) |
| Start of production | 1993 |
| End of production | 1997 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – combined | 12.7 l/100 km |
| Fuel consumption (economy) – combined | 18.5 US mpg |
| Fuel consumption (economy) – combined | 22.2 UK mpg |
| Fuel consumption (economy) – combined | 7.9 km/l |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 6.4 sec |
| Acceleration 0 – 62 mph | 6.4 sec |
| Acceleration 0 – 60 mph | 6.1 sec |
| Maximum speed | 250 km/h |
| Maximum speed | 155.34 mph |
| Weight-to-power ratio | 5.9 kg/Hp |
| Weight-to-power ratio | 170.2 Hp/tonne |
| Weight-to-torque ratio | 4.2 kg/Nm |
| Weight-to-torque ratio | 238.1 Nm/tonne |
| Power | 286 Hp @ 5800 rpm |
| Power per litre | 71.8 Hp/l |
| Torque | 400 Nm @ 4500 rpm |
| Torque | 295.02 lb.-ft. @ 4500 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M60B40 |
| Engine displacement | 3982 cm3 |
| Engine displacement | 243 cu. in. |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 89 mm |
| Cylinder Bore | 3.5 in. |
| Piston Stroke | 80 mm |
| Piston Stroke | 3.15 in. |
| Compression ratio | 10:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 7.5 l |
| Engine oil capacity | 7.93 US qt | 6.6 UK qt |
| Coolant | 12.5 l |
| Coolant | 13.21 US qt | 11 UK qt |
| Kerb Weight | 1680 kg |
| Kerb Weight | 3703.77 lbs. |
| Max. weight | 2230 kg |
| Max. weight | 4916.31 lbs. |
| Max load | 550 kg |
| Max load | 1212.54 lbs. |
| Trunk (boot) space – minimum | 460 l |
| Trunk (boot) space – minimum | 16.24 cu. ft. |
| Trunk (boot) space – maximum | 910 l |
| Trunk (boot) space – maximum | 32.14 cu. ft. |
| Fuel tank capacity | 80 l |
| Fuel tank capacity | 21.13 US gal | 17.6 UK gal |
| Length | 4720 mm |
| Length | 185.83 in. |
| Width | 1751 mm |
| Width | 68.94 in. |
| Height | 1417 mm |
| Height | 55.79 in. |
| Wheelbase | 2761 mm |
| Wheelbase | 108.7 in. |
| Front track | 1470 mm |
| Front track | 57.87 in. |
| Rear (Back) track | 1495 mm |
| Rear (Back) track | 58.86 in. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Spring Strut |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Power steering | Hydraulic Steering |
| Tires size | 225/60 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the 540i Touring was the M60B40 engine, a 4.0-liter naturally aspirated V8. This engine, a cornerstone of BMW’s engineering prowess in the early 1990s, featured all-aluminum construction, a significant weight-saving measure for the time. It employed multi-port fuel injection and a double overhead camshaft (DOHC) valvetrain, contributing to its smooth power delivery and relatively high specific output. The M60B40 produced 286 horsepower at 5800 rpm and 400 Nm (295 lb-ft) of torque at 4500 rpm. The engine’s longitudinal mounting and rear-wheel-drive configuration were typical of BMW’s performance-oriented designs. The standard transmission was a 6-speed manual, although an automatic transmission was also available, albeit less common in the 540i variant. The automatic, a 4-speed unit, was geared for comfortable cruising rather than outright performance.
Driving Characteristics
The 540i Touring offered a compelling blend of performance and practicality. With the 6-speed manual transmission, acceleration was brisk, achieving 0-60 mph in approximately 6.1 seconds. The V8 engine provided ample torque throughout the rev range, making for effortless overtaking and comfortable highway cruising. The automatic transmission, while offering convenience, slightly dulled the car’s responsiveness. The E34 chassis, known for its well-balanced handling, provided a secure and engaging driving experience. The Touring’s increased weight compared to the sedan was noticeable, but the suspension effectively managed body roll and maintained a composed ride.
Equipment & Trim Levels
The 540i Touring was generously equipped, reflecting its position as the range-topping model. Standard features included leather upholstery, power-adjustable front seats with memory function, automatic climate control, a premium sound system, and an anti-lock braking system (ABS). Optional extras included a sunroof, heated seats, and upgraded interior trim. The interior design was typical of BMW’s understated elegance, with a focus on functionality and driver ergonomics. The dashboard layout was clean and intuitive, with all essential controls within easy reach.
Chassis & Braking
The E34 5 Series utilized a sophisticated chassis design featuring independent suspension all around. The front suspension employed a MacPherson strut setup, while the rear utilized a semi-trailing arm configuration. This arrangement provided a good balance between ride comfort and handling precision. The 540i Touring was equipped with ventilated disc brakes on all four wheels, providing ample stopping power. The ABS system further enhanced braking performance and stability, particularly in adverse conditions. Stabilizer bars were fitted front and rear to minimize body roll during cornering.
Market Reception & Comparison
The 540i Touring was well-received by automotive critics, who praised its powerful engine, refined handling, and spacious interior. However, its relatively high price tag limited its appeal to a niche market. Compared to the 525i and 530i variants, the 540i offered significantly more performance but at a considerable cost premium. The 525i and 530i, with their inline-six engines, provided a more fuel-efficient and affordable alternative. The 540i’s fuel economy, at 12.7 l/100 km (18.5 US mpg), was considerably lower than that of its six-cylinder siblings. Reliability was generally good, although the M60B40 engine was known to require regular maintenance, particularly regarding coolant system components.
Legacy
The BMW E34 540i Touring remains a highly sought-after classic car among enthusiasts. Its combination of performance, practicality, and build quality has ensured its enduring appeal. While maintenance costs can be higher than those of more common E34 variants, the 540i’s unique character and driving experience make it a rewarding ownership proposition. Today, well-maintained examples command premium prices in the used car market, reflecting their rarity and desirability. The M60B40 engine, despite its age, is still regarded as a technological marvel and a testament to BMW’s engineering expertise.
