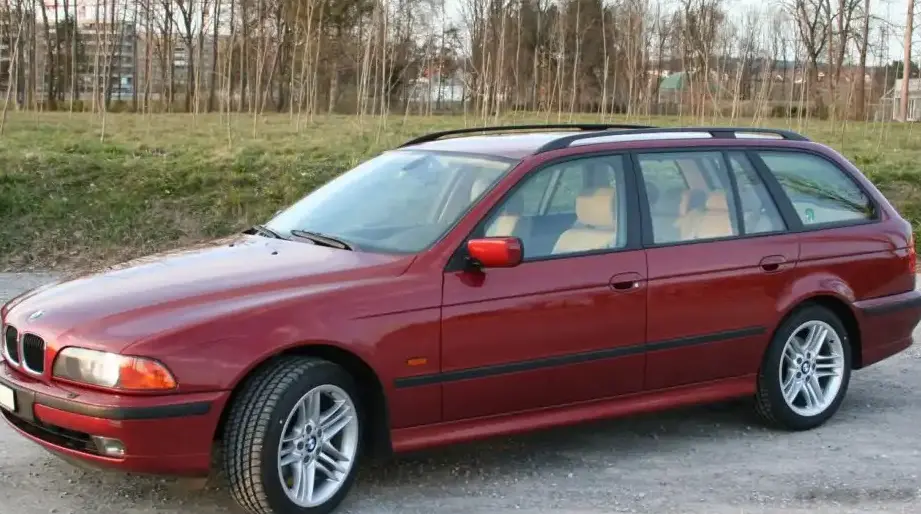

The BMW 5 Series Touring (E39) 523i, produced from 1995 to 1998, represents a compelling blend of practicality and performance within the broader E39 5 Series range. As a station wagon (estate) variant, it catered to buyers seeking the driving experience synonymous with BMW, combined with the increased cargo capacity and versatility expected of a touring model. This particular iteration, powered by the M52B25 engine and typically paired with a 5-speed manual transmission, occupied a mid-range position in the lineup, offering a balance between affordability and driving enjoyment. It served as a more accessible entry point into the E39 Touring family compared to the higher-performance 528i and 540i models.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Touring (E39) |
| Type (Engine) | 523i (170 Hp) |
| Start of production | 1995 |
| End of production | 1998 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 13.4 l/100 km (17.6 US mpg, 21.1 UK mpg, 7.5 km/l) |
| Fuel consumption (economy) – extra urban | 7.7 l/100 km (30.5 US mpg, 36.7 UK mpg, 13 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 8.9 sec |
| Acceleration 0 – 62 mph | 8.9 sec |
| Acceleration 0 – 60 mph | 8.5 sec |
| Maximum speed | 224 km/h (139.19 mph) |
| Weight-to-power ratio | 9.3 kg/Hp, 107.6 Hp/tonne |
| Weight-to-torque ratio | 6.4 kg/Nm, 155.1 Nm/tonne |
| Power | 170 Hp @ 5500 rpm |
| Power per litre | 68.2 Hp/l |
| Torque | 245 Nm @ 3950 rpm (180.7 lb.-ft. @ 3950 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M52B25 |
| Engine displacement | 2494 cm3 (152.19 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 75 mm (2.95 in.) |
| Compression ratio | 10.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Coolant | 10.5 l (11.1 US qt | 9.24 UK qt) |
| Kerb Weight | 1580 kg (3483.3 lbs.) |
| Max. weight | 2205 kg (4861.19 lbs.) |
| Max load | 625 kg (1377.89 lbs.) |
| Trunk (boot) space – minimum | 410 l (14.48 cu. ft.) |
| Trunk (boot) space – maximum | 1525 l (53.85 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4805 mm (189.17 in.) |
| Width | 1800 mm (70.87 in.) |
| Height | 1440 mm (56.69 in.) |
| Wheelbase | 2830 mm (111.42 in.) |
| Front track | 1512 mm (59.53 in.) |
| Rear (Back) track | 1526 mm (60.08 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Inclined Lever |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 225/60 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
At the heart of the 523i Touring lies the M52B25, a 2.5-liter inline-six engine. This engine is a naturally aspirated powerplant known for its smooth operation and relatively high specific output. The ‘B25’ designation indicates a displacement of 2.5 liters. It utilizes a cast iron block with an aluminum cylinder head, incorporating double overhead camshafts (DOHC) and four valves per cylinder. Fuel delivery is managed by a multi-port fuel injection system, providing precise fuel metering for optimal combustion. The M52 engine family, including the B25, is celebrated for its robust design and relatively simple maintenance requirements. The 5-speed manual transmission, the most common pairing for this engine, features a traditional gear layout designed to maximize both performance and fuel efficiency. The transmission’s ratios were tuned to complement the engine’s torque curve, providing responsive acceleration in everyday driving situations.
Driving Characteristics
The 523i Touring, with its 170 horsepower and 180 lb-ft of torque, offered a balanced driving experience. While not as overtly sporty as the 528i or 540i, it provided ample power for comfortable cruising and confident overtaking. Acceleration from 0-60 mph took approximately 8.5 seconds, making it competitive with other vehicles in its class. The manual transmission allowed for precise control over gear selection, enhancing driver engagement. Compared to the automatic transmission option, the manual version offered slightly quicker acceleration and improved fuel economy. The suspension, tuned for a balance of comfort and handling, provided a stable and predictable ride, even when fully loaded with cargo. The rear-wheel-drive configuration contributed to the car’s balanced handling characteristics.
Equipment & Trim Levels
The 523i Touring typically came standard with features such as power windows, power locks, and air conditioning. Interior upholstery was generally cloth, although leather options were available. The dashboard layout was typical of the E39 series, featuring a straightforward design with easy-to-read gauges. Optional extras included a sunroof, upgraded audio system, and automatic climate control. The Touring model specifically added features like a self-leveling rear suspension to maintain ride height when carrying heavy loads, and a retractable cargo cover for security and privacy.
Chassis & Braking
The E39 5 Series Touring utilized a robust chassis construction, providing a solid foundation for handling and safety. The front suspension employed a wishbone design, while the rear suspension featured an inclined lever setup. Both systems were designed to minimize body roll and maximize tire contact with the road. Braking duties were handled by ventilated discs at the front and solid discs at the rear, providing adequate stopping power for the vehicle’s weight. Anti-lock braking system (ABS) was standard, enhancing safety in emergency braking situations.
Market Reception & Comparison
The 523i Touring was generally well-received by automotive critics as a practical and enjoyable vehicle. It was praised for its comfortable ride, spacious interior, and balanced handling. Compared to the 528i and 540i Touring models, the 523i offered a more affordable entry point into the E39 Touring range, albeit with slightly less performance. Fuel economy was a strong point, particularly compared to the larger-engined variants. Reliability was generally good, although like all BMWs of this era, regular maintenance was essential to prevent issues.
Legacy
The E39 5 Series Touring, including the 523i variant, has gained a strong following among enthusiasts. The M52B25 engine is known for its durability and relatively simple maintenance, making it a popular choice for those seeking a reliable and enjoyable classic BMW. Today, well-maintained examples of the 523i Touring are sought after by collectors and enthusiasts alike. While not the fastest or most luxurious E39 Touring model, it represents a sweet spot in the lineup, offering a compelling combination of practicality, performance, and affordability. Its enduring appeal is a testament to the quality of engineering and design that characterized the E39 generation.
