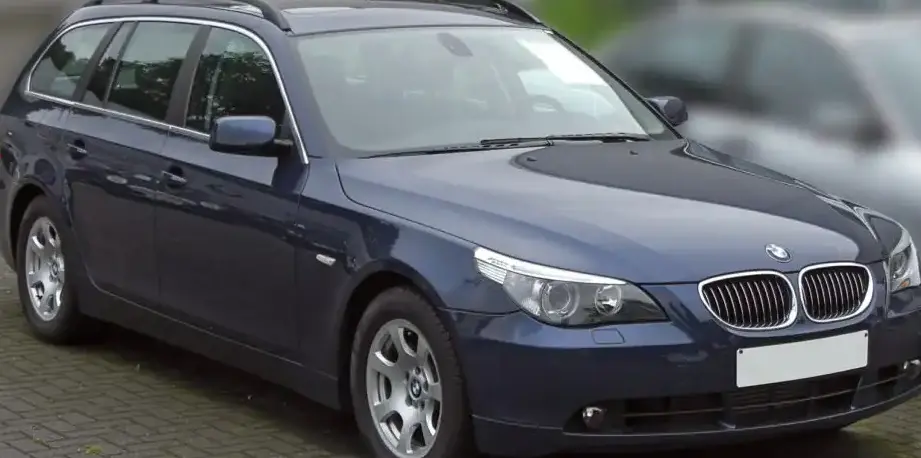

The BMW 5 Series Touring (E61) 530xi, produced from 2005 to 2007, represents BMW’s entry into the premium, all-wheel-drive wagon segment. Positioned as a higher-performance variant within the E61 5 Series Touring range, it offered a blend of practicality, luxury, and engaging driving dynamics. The 530xi utilized BMW’s xDrive all-wheel-drive system and was a key offering for buyers in regions where inclement weather demanded enhanced traction. It sat above the 525i Touring in terms of performance and price, but below the more powerful 535xi and 550i models.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Touring (E61) |
| Type (Engine) | 530xi (258 Hp) |
| Start of production | 2005 |
| End of production | 2007 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 14.1 l/100 km (16.7 US mpg, 20 UK mpg, 7.1 km/l) |
| Fuel consumption (economy) – extra urban | 7.8 l/100 km (30.2 US mpg, 36.2 UK mpg, 12.8 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 7 sec |
| Acceleration 0 – 62 mph | 7 sec |
| Acceleration 0 – 60 mph | 6.7 sec |
| Maximum speed | 245 km/h (152.24 mph) |
| Weight-to-power ratio | 6.6 kg/Hp, 152.7 Hp/tonne |
| Weight-to-torque ratio | 5.6 kg/Nm, 177.5 Nm/tonne |
| Power | 258 Hp @ 6600 rpm |
| Power per litre | 86.1 Hp/l |
| Torque | 300 Nm @ 2500 rpm (221.27 lb.-ft. @ 2500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | N52B30A |
| Engine displacement | 2996 cm3 (182.83 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 10.7:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Coolant | 10 l (10.57 US qt | 8.8 UK qt) |
| Kerb Weight | 1690 kg (3725.81 lbs.) |
| Max. weight | 2285 kg (5037.56 lbs.) |
| Max load | 595 kg (1311.75 lbs.) |
| Trunk (boot) space – minimum | 500 l (17.66 cu. ft.) |
| Trunk (boot) space – maximum | 1650 l (58.27 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4843 mm (190.67 in.) |
| Width | 1846 mm (72.68 in.) |
| Height | 1491 mm (58.7 in.) |
| Wheelbase | 2886 mm (113.62 in.) |
| Front track | 1558 mm (61.34 in.) |
| Rear (Back) track | 1581 mm (62.24 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Coil spring |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 225/50 R17 W |
| Wheel rims size | 17 |
INTRODUCTION
The E61 5 Series Touring, launched in 2004, brought the practicality of a station wagon to BMW’s popular 5 Series lineup. The 530xi, introduced in 2005, was a key variant, offering all-wheel drive capability paired with a naturally aspirated 3.0-liter inline-six engine. It was designed to appeal to buyers who needed the space and versatility of a wagon but didn’t want to sacrifice BMW’s renowned driving experience. The “xi” designation signified the inclusion of BMW’s xDrive all-wheel-drive system, providing enhanced stability and traction in various road conditions. This model year represented the first generation of the E61 with the N52 engine.
Powertrain & Engine Architecture
The heart of the 530xi is the N52B30A, a 3.0-liter (2996 cc) naturally aspirated inline-six engine. This engine is a significant departure from its predecessor, the M54, featuring a magnesium alloy engine block, double-VANOS variable valve timing (for both intake and exhaust camshafts), and individual throttle butterflies. These advancements contributed to improved efficiency, power delivery, and responsiveness. The N52B30A produces 258 horsepower at 6600 rpm and 221 lb-ft of torque at 2500 rpm. Fuel is delivered via a multi-port fuel injection system. The engine’s six-speed manual transmission features closely spaced gear ratios designed to maximize performance and driver engagement. The transmission’s shift linkage is precise and provides a satisfying tactile feel. An optional six-speed automatic transmission was also available, though it generally resulted in slightly reduced acceleration times.
Driving Characteristics
The 530xi, with its manual transmission, delivers a balanced driving experience. Acceleration from 0-60 mph takes approximately 6.7 seconds, and it reaches a top speed of 152 mph. The inline-six engine is smooth and eager to rev, providing a linear power delivery that makes it easy to modulate throttle inputs. The xDrive all-wheel-drive system provides excellent traction, particularly in wet or snowy conditions, inspiring confidence during spirited driving. Compared to the 525i Touring, the 530xi offers noticeably more power and a more refined driving experience. While the 535xi and 550i Touring models offer even greater performance, the 530xi strikes a good balance between power, efficiency, and price. The automatic transmission, while convenient, does diminish some of the engine’s responsiveness and driver involvement.
Equipment & Trim Levels
The 530xi came standard with a comprehensive list of features, including leather upholstery, power-adjustable front seats with memory function, automatic climate control, a premium sound system, and BMW’s iDrive infotainment system. Optional extras included navigation, heated seats, a sunroof, and upgraded interior trim options. The standard interior trim was typically wood or aluminum, and buyers could choose from a variety of upholstery colors. The 530xi also included a range of safety features, such as ABS, traction control, stability control, and multiple airbags.
Chassis & Braking
The E61 5 Series Touring utilizes a sophisticated chassis design featuring a multi-link rear suspension. The front suspension consists of MacPherson struts with coil springs and anti-roll bar. The 530xi’s braking system consists of ventilated discs at the front and solid discs at the rear. ABS (Anti-lock Braking System) is standard, providing enhanced stopping power and control. The suspension is tuned to provide a comfortable ride while maintaining good handling characteristics. The xDrive all-wheel-drive system distributes power between the front and rear axles as needed, optimizing traction and stability.
Market Reception & Comparison
The 530xi was generally well-received by automotive critics, who praised its blend of performance, practicality, and luxury. It was considered a strong competitor to other premium wagons, such as the Audi A6 Avant and the Volvo V70. Fuel economy was respectable for its class, averaging around 20 mpg in combined driving. Reliability was generally good, although some owners reported issues with the cooling system and electrical components. Compared to the 525i Touring, the 530xi offered a significant performance upgrade, while the 535xi and 550i Touring models provided even more power but at a higher price point.
Legacy
The E61 5 Series Touring, and particularly the 530xi variant, has become a popular choice among enthusiasts seeking a practical and engaging wagon. The N52 engine is known for its reliability and smooth operation, making it a desirable powertrain. Today, well-maintained examples of the 530xi can be found on the used car market at relatively affordable prices. However, potential buyers should be aware of potential maintenance issues, such as cooling system leaks and VANOS system wear. The 530xi remains a compelling option for those who value the combination of BMW’s driving dynamics and the versatility of a station wagon.
