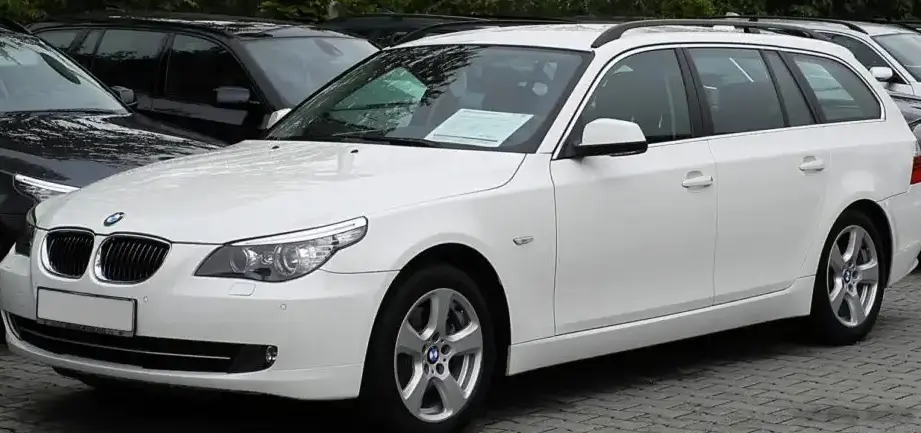

The BMW 5 Series Touring (E61 LCI), specifically the 525d xDrive variant produced from 2007 to 2010, represents a significant iteration of BMW’s popular executive wagon. This model, part of the E61 facelift (LCI – Lebenszyklus Impuls), combined the practicality of a station wagon with BMW’s renowned driving dynamics and a fuel-efficient diesel engine. The 525d xDrive occupied a middle ground in the 5 Series Touring lineup, offering a balance between performance, economy, and standard features, appealing to buyers seeking a versatile and refined vehicle. It was positioned above the base 520d models and below the more powerful 530d and 535d variants.
Technical Specifications
| Brand | BMW |
| Model | 5 Series |
| Generation | 5 Series Touring (E61 LCI, facelift 2007) |
| Type (Engine) | 525d (197 Hp) xDrive |
| Start of production | 2007 |
| End of production | 2010 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 9.1 l/100 km (25.8 US mpg, 31 UK mpg, 11 km/l) |
| Fuel consumption (economy) – extra urban | 5.6 l/100 km (42 US mpg, 50.4 UK mpg, 17.9 km/l) |
| Fuel consumption (economy) – combined | 6.9 l/100 km (34.1 US mpg, 40.9 UK mpg, 14.5 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 8.1 sec |
| Acceleration 0 – 62 mph | 8.1 sec |
| Acceleration 0 – 60 mph | 7.7 sec |
| Maximum speed | 228 km/h (141.67 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 9 kg/Hp, 111.3 Hp/tonne |
| Weight-to-torque ratio | 4.4 kg/Nm, 226 Nm/tonne |
| Power | 197 Hp @ 3750 rpm |
| Power per litre | 65.8 Hp/l |
| Torque | 400 Nm @ 1300-3250 rpm (295.02 lb.-ft. @ 1300-3250 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | M57D30 |
| Engine displacement | 2993 cm3 (182.64 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 17:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 6.7 l (7.08 US qt | 5.9 UK qt) |
| Coolant | 9.8 l (10.36 US qt | 8.62 UK qt) |
| Kerb Weight | 1770 kg (3902.18 lbs.) |
| Max. weight | 2350 kg (5180.86 lbs.) |
| Max load | 580 kg (1278.68 lbs.) |
| Trunk (boot) space – minimum | 500 l (17.66 cu. ft.) |
| Trunk (boot) space – maximum | 1650 l (58.27 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| Length | 4843 mm (190.67 in.) |
| Width | 1846 mm (72.68 in.) |
| Height | 1491 mm (58.7 in.) |
| Wheelbase | 2888 mm (113.7 in.) |
| Front track | 1558 mm (61.34 in.) |
| Rear (Back) track | 1581 mm (62.24 in.) |
| Ride height (ground clearance) | 143 mm (5.63 in.) |
| Drag coefficient (Cd) | 0.31 |
| Minimum turning circle (turning diameter) | 11.9 m (39.04 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 225/50 R17 W |
| Wheel rims size | 17 |
INTRODUCTION
The E61 5 Series Touring, launched in 2004, brought BMW’s mid-size executive car into the practical world of station wagons. The 2007 LCI (Life Cycle Impulse) facelift brought updated styling, improved efficiency, and refined technology. The 525d xDrive, powered by the M57D30 engine, was a popular choice for European buyers, offering a compelling blend of performance and fuel economy. The ‘xDrive’ designation indicates BMW’s all-wheel-drive system, providing enhanced traction and stability, particularly in adverse weather conditions. This variant aimed to provide a comfortable and capable vehicle for families and individuals needing space and versatility without sacrificing the BMW driving experience.
Powertrain & Engine Architecture
At the heart of the 525d xDrive lies the M57D30, a 3.0-liter inline-six diesel engine. This engine is a cornerstone of BMW’s diesel offerings from the mid-2000s, known for its robustness and efficiency. The M57D30 utilizes a common rail direct injection system, delivering fuel at extremely high pressure for optimized combustion. A variable geometry turbocharger (VGT) with an intercooler further enhances performance and responsiveness. The engine features double overhead camshafts (DOHC) and four valves per cylinder, contributing to its smooth operation and power delivery. The 525d xDrive was typically paired with a six-speed manual transmission, although a six-speed automatic transmission was also available. The automatic transmission offered smooth shifts and convenience, but at the expense of some fuel economy and driver engagement compared to the manual.
Driving Characteristics
The 525d xDrive, with its 197 horsepower and 400 Nm (295 lb-ft) of torque, provided brisk acceleration and ample power for everyday driving. While not as overtly sporty as the higher-powered 530d or 535d models, the 525d offered a relaxed and refined driving experience. The xDrive all-wheel-drive system provided excellent grip and stability, particularly on slippery surfaces. The automatic transmission, while smooth, could feel slightly hesitant at times, especially during quick downshifts. The gear ratios were tuned for fuel efficiency and comfortable cruising, rather than outright performance. Compared to the manual version, the automatic 525d xDrive felt slightly less engaging, but offered greater convenience for urban driving and long journeys.
Equipment & Trim Levels
The 525d xDrive came reasonably well-equipped as standard. Typical features included automatic climate control, power windows and mirrors, a multi-function steering wheel, and a basic audio system. Upholstery was typically cloth or leatherette, with full leather available as an option. Optional extras included a premium sound system, navigation system, sunroof, heated seats, and parking sensors. The LCI facelift brought subtle interior updates, including revised trim materials and improved switchgear. The overall interior ambiance was one of understated luxury and build quality, typical of BMW at the time.
Chassis & Braking
The E61 5 Series Touring featured a sophisticated chassis design, with independent suspension all around. The front suspension utilized MacPherson struts, while the rear employed a multi-link setup. This configuration provided a comfortable ride and precise handling. The 525d xDrive typically featured ventilated front disc brakes and solid rear discs. Anti-lock braking system (ABS) was standard, along with electronic brake-force distribution (EBD). The xDrive all-wheel-drive system distributed power between the front and rear axles as needed, optimizing traction and stability. Stabilizer bars were fitted front and rear to reduce body roll during cornering.
Market Reception & Comparison
The 525d xDrive was generally well-received by automotive critics. It was praised for its fuel efficiency, comfortable ride, and spacious interior. However, some critics noted that the automatic transmission could feel sluggish at times, and that the engine lacked the outright punch of the higher-powered 5 Series models. Compared to the 520d, the 525d offered a noticeable performance upgrade. Compared to the 530d, it provided a more affordable entry point into the 5 Series Touring range, albeit with less power. Fuel economy was a strong point, consistently achieving around 34-41 mpg in real-world driving.
Legacy
The M57D30 engine, found in the 525d xDrive, has proven to be a durable and reliable powerplant when properly maintained. Common issues include turbocharger wear and potential problems with the glow plug system. However, these are generally addressable with routine maintenance and timely repairs. Today, the E61 525d xDrive represents a relatively affordable entry point into BMW ownership. Well-maintained examples are still sought after by enthusiasts and practical buyers alike, offering a blend of comfort, space, and BMW driving dynamics. The xDrive system continues to be a valuable asset, providing enhanced safety and confidence in all weather conditions.
