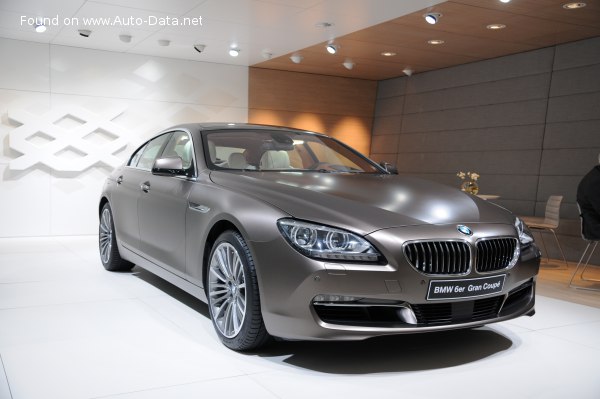

2012-2015 BMW 6 Series Gran Coupe (F06) 650i (450 Hp) Steptronic

The BMW 6 Series Gran Coupe (F06) 650i Steptronic, produced from 2012 to 2015, represented the high-performance end of BMW’s four-door coupe lineup. Positioned as the flagship engine option within the F06 generation, it combined a potent twin-turbocharged V8 engine with BMW’s eight-speed Steptronic automatic transmission. This variant aimed to deliver a luxurious grand touring experience with significant performance capabilities, appealing to buyers seeking both comfort and exhilarating driving dynamics. The F06 Gran Coupe, built on the F10 5 Series platform, offered a more stylish and sporty alternative to the traditional sedan, emphasizing a sleek roofline and enhanced driving experience.

Technical Specifications

Brand BMW
Model 6 Series
Generation 6 Series Gran Coupe (F06)
Type (Engine) 650i (450 Hp) Steptronic
Start of production 2012
End of production 2015
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 4
Fuel consumption (urban) 11.9-12.4 l/100 km (19.8 – 19 US mpg, 23.7 – 22.8 UK mpg, 8.4 – 8.1 km/l)
Fuel consumption (extra urban) 6.6-6.9 l/100 km (35.6 – 34.1 US mpg, 42.8 – 40.9 UK mpg, 15.2 – 14.5 km/l)
Fuel consumption (combined) 8.6-8.8 l/100 km (27.4 – 26.7 US mpg, 32.8 – 32.1 UK mpg, 11.6 – 11.4 km/l)
CO2 emissions 199-206 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 4.6 sec
Acceleration 0 – 62 mph 4.6 sec
Acceleration 0 – 60 mph 4.4 sec
Maximum speed 250 km/h (155.34 mph)
Emission standard Euro 5
Weight-to-power ratio 4.1 kg/Hp, 241.3 Hp/tonne
Weight-to-torque ratio 2.9 kg/Nm, 348.5 Nm/tonne
Power 450 Hp @ 5500 rpm
Power per litre 102.4 Hp/l
Torque 650 Nm @ 2000-4500 rpm (479.42 lb.-ft. @ 2000-4500 rpm)
Engine layout Front, Longitudinal
Engine Model/Code N63B44B
Engine displacement 4395 cm3 (268.2 cu. in.)
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 89 mm (3.5 in.)
Piston Stroke 88.3 mm (3.48 in.)
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-power turbo, Intercooler
Engine oil capacity 9 l (9.51 US qt | 7.92 UK qt)
Coolant 10.9 l (11.52 US qt | 9.59 UK qt)
Kerb Weight 1865 kg (4111.62 lbs.)
Max. weight 2465 kg (5434.39 lbs.)
Max load 600 kg (1322.77 lbs.)
Trunk (boot) space – minimum 460 l (16.24 cu. ft.)
Trunk (boot) space – maximum 1265 l (44.67 cu. ft.)
Fuel tank capacity 70 l (18.49 US gal | 15.4 UK gal)
Max. roof load 75 kg (165.35 lbs.)
Length 5007 mm (197.13 in.)
Width 1894 mm (74.57 in.)
Height 1392 mm (54.8 in.)
Wheelbase 2968 mm (116.85 in.)
Front track 1600 mm (62.99 in.)
Rear (Back) track 1665 mm (65.55 in.)
Ride height (ground clearance) 126 mm (4.96 in.)
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.95 m (39.21 ft.)
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission Steptronic
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R17; 245/45 R18; 245/40 R19; 275/35 R19; 245/35 R20; 275/30 R20
Wheel rims size 8J x 17; 8J x 18; 8.5J x 19; 9J x 19; 8.5J x 20; 9J x 20

INTRODUCTION

The BMW 650i Gran Coupe, launched in 2012, was a significant addition to the 6 Series range. It offered a compelling blend of luxury, performance, and style, differentiating itself from the more conventional 5 Series sedan upon which it was based. The F06 generation aimed to capture a niche market seeking a four-door coupe experience, combining the practicality of four doors with the sleek aesthetics of a traditional coupe. The 650i, powered by the N63B44B engine, was the top-tier offering, providing a substantial performance upgrade over the 640i models. Production continued until 2015, with the model being replaced by the updated G32 6 Series Gran Coupe.

Powertrain & Engine Architecture

At the heart of the 650i Gran Coupe lies the N63B44B 4.4-liter twin-turbocharged V8 engine. This engine, a cornerstone of BMW’s performance lineup during this period, utilizes direct fuel injection and Valvetronic variable valve timing for optimized efficiency and power delivery. The twin-turbochargers, positioned within the V of the engine, minimize turbo lag and provide a broad torque curve. The engine produces 450 horsepower at 5,500 rpm and a substantial 650 Nm (479 lb-ft) of torque between 2,000 and 4,500 rpm. This power is channeled through BMW’s eight-speed Steptronic automatic transmission, known for its smooth and quick shifts. The transmission features steering wheel-mounted paddle shifters for manual control, allowing drivers to engage more directly with the powertrain. The engine’s longitudinal front-engine layout contributes to balanced handling characteristics.

Driving Characteristics

The 650i Gran Coupe delivers a refined yet potent driving experience. The combination of the powerful V8 engine and the eight-speed automatic transmission results in brisk acceleration – 0 to 60 mph in approximately 4.4 seconds. The Steptronic transmission is programmed to prioritize smooth shifts during normal driving, but can quickly downshift when more aggressive acceleration is demanded. The gear ratios are tuned to provide strong off-the-line acceleration and effortless cruising at highway speeds. Compared to the 640i models, the 650i offers a significantly more responsive and engaging driving experience, with the V8 providing a more visceral soundtrack and a greater sense of urgency. While the 650i isn’t as overtly sporty as some of BMW’s M-branded vehicles, it provides a comfortable and capable grand touring experience.

Equipment & Trim Levels

The 650i Gran Coupe came standard with a comprehensive array of luxury features. Standard equipment typically included leather upholstery, power-adjustable front seats with memory function, a premium sound system, a navigation system, and a sunroof. BMW’s iDrive infotainment system, with its central controller and display screen, provided access to various vehicle settings and features. Optional extras included upgraded leather options, active ventilation for the front seats, a head-up display, and a rear-seat entertainment system. The 650i also benefited from BMW’s ConnectedDrive services, offering features such as real-time traffic information and concierge services. Exterior options included a variety of wheel designs and paint colors.

Chassis & Braking

The F06 650i Gran Coupe features a sophisticated chassis designed to balance comfort and handling. The front suspension utilizes a double wishbone design, while the rear employs an independent multi-link setup. This configuration provides excellent wheel control and a comfortable ride. The car is equipped with ventilated disc brakes on all four wheels, providing ample stopping power. Anti-lock braking system (ABS) and electronic stability control (ESC) are standard features, enhancing safety and stability. The steering system is a rack-and-pinion setup with electric power assistance, offering precise and responsive steering feel. The standard tire sizes ranged from 225/55 R17 to 275/30 R20, depending on the chosen wheel size.

Market Reception & Comparison

The 650i Gran Coupe was generally well-received by automotive critics, who praised its stylish design, luxurious interior, and powerful engine. However, some reviewers noted that the rear seats were somewhat cramped for adults, and the car’s price positioned it in a competitive segment. Compared to the 640i, the 650i offered a significant performance advantage, but at a higher price point. Fuel economy was respectable for a V8-powered vehicle, but not as efficient as the turbocharged six-cylinder engine in the 640i. Reliability was generally good, although some owners reported minor issues with the electronic systems.

Legacy

The BMW 650i Gran Coupe (F06) remains a desirable vehicle in the used car market, particularly for those seeking a luxurious and high-performance four-door coupe. The N63B44B engine, while complex, has proven to be relatively reliable when properly maintained. Regular oil changes and adherence to BMW’s recommended maintenance schedule are crucial for long-term durability. The car’s sophisticated technology and elegant design continue to appeal to enthusiasts, and it represents a unique offering in BMW’s history – a blend of coupe styling, sedan practicality, and V8 power.
