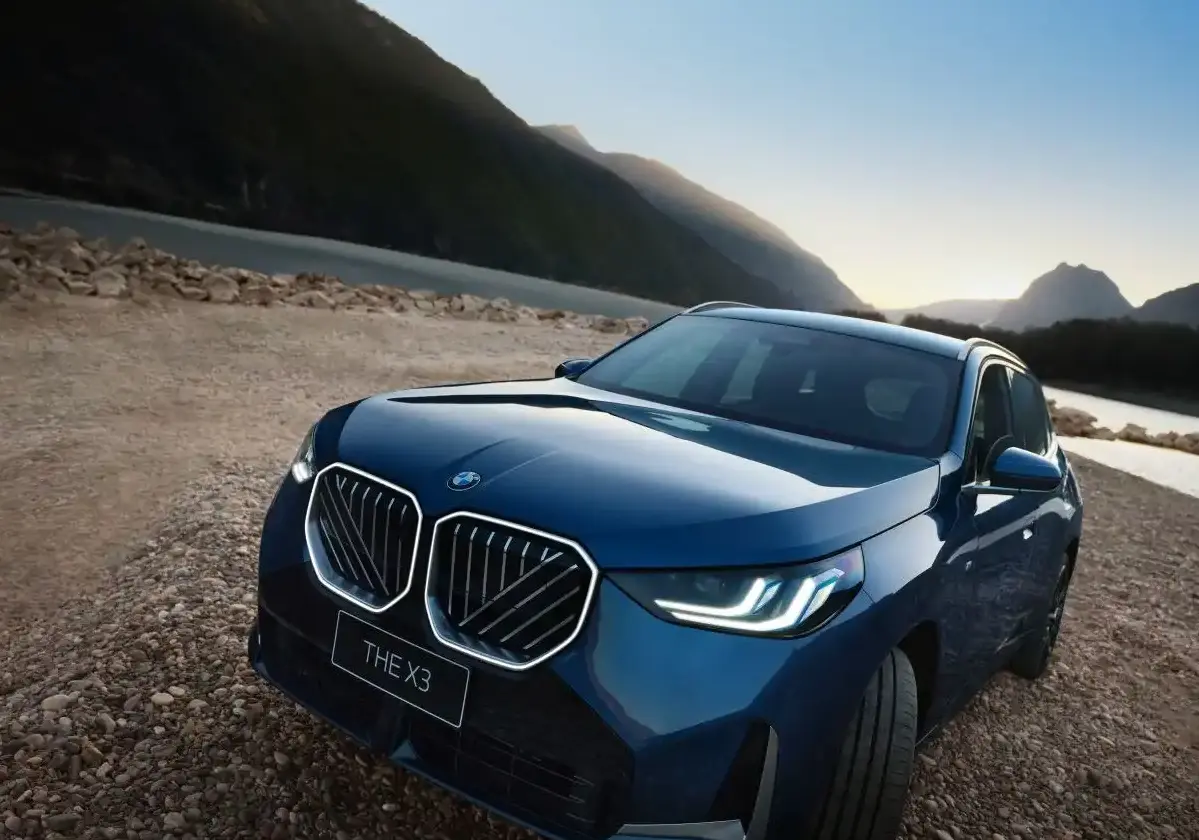

The BMW X3 (G45) 20d, introduced in June 2024, represents a key offering within the third generation of BMW’s popular compact luxury SUV. This variant combines a 2.0-liter turbocharged diesel engine with a 48-volt mild hybrid system and BMW’s xDrive all-wheel-drive system, paired with an 8-speed Steptronic automatic transmission. Positioned as a balance between efficiency and performance, the 20d caters to buyers seeking a refined driving experience with reduced emissions. It slots into the X3 lineup below the more powerful gasoline-powered models and the plug-in hybrid variants.
Technical Specifications
| Brand | BMW |
| Model | X3 |
| Generation | X3 (G45) |
| Type (Engine) | 20d (197 Hp) Mild Hybrid xDrive Steptronic |
| Start of production | June, 2024 |
| Powertrain Architecture | MHEV (Mild Hybrid Electric Vehicle) |
| Body type | SAV (Sports Activity Vehicle) |
| Seats | 5 |
| Doors | 5 |
| Combined fuel consumption (WLTP) | 5.8-6.5 l/100 km (40.6 – 36.2 US mpg, 48.7 – 43.5 UK mpg, 17.2 – 15.4 km/l) |
| CO2 emissions (WLTP) | 153-171 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 7.7 sec |
| Acceleration 0 – 62 mph | 7.7 sec |
| Acceleration 0 – 60 mph | 7.3 sec |
| Maximum speed | 215 km/h (133.59 mph) |
| Emission standard | Euro 6e |
| Weight-to-power ratio | 9.6 kg/Hp, 104.2 Hp/tonne |
| Weight-to-torque ratio | 4.7 kg/Nm, 211.6 Nm/tonne |
| Gross battery capacity | 0.9 kWh |
| Battery voltage | 48 V |
| Battery technology | Lithium-ion (Li-Ion) |
| Battery location | Under the trunk |
| Electric motor power | 11 Hp |
| Electric motor Torque | 25 Nm (18.44 lb.-ft.) |
| Electric motor location | Front, Longitudinal |
| Power | 197 Hp @ 4000 rpm |
| Torque | 400 Nm @ 1500-2750 rpm (295.02 lb.-ft. @ 1500-2750 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | B47 |
| Engine displacement | 1995 cm3 (121.74 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 16.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Twin-power turbo, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 5.5 l (5.81 US qt | 4.84 UK qt) |
| Kerb Weight | 1890 kg (4166.74 lbs.) |
| Max. weight | 2535 kg (5588.72 lbs.) |
| Max load | 645 kg (1421.98 lbs.) |
| Trunk (boot) space – minimum | 570 l (20.13 cu. ft.) |
| Trunk (boot) space – maximum | 1700 l (60.03 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2500 kg (5511.56 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 100 kg (220.46 lbs.) |
| Length | 4755 mm (187.2 in.) |
| Width | 1920 mm (75.59 in.) |
| Width including mirrors | 2132 mm (83.94 in.) |
| Height | 1660 mm (65.35 in.) |
| Wheelbase | 2865 mm (112.8 in.) |
| Front track | 1618-1636 mm (63.7 – 64.41 in.) |
| Rear (Back) track | 1623-1681 mm (63.9 – 66.18 in.) |
| Front overhang | 880 mm (34.65 in.) |
| Rear overhang | 1010 mm (39.76 in.) |
| Ride height (ground clearance) | 216 mm (8.5 in.) |
| Drag coefficient (Cd) | 0.28 |
| Minimum turning circle (turning diameter) | 12.2 m (40.03 ft.) |
| Approach angle | 20.6° |
| Departure angle | 22° |
| Ramp-over (brakeover) angle | 18.7° |
| Drivetrain Architecture | ICE and electric motor drive all four wheels, mixed mode operation. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 8 gears, automatic transmission Steptronic |
| Front suspension | Spring Strut, Transverse stabilizer |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 225/60 R18 |
| Wheel rims size | 8J x 18 |
Powertrain & Engine Architecture
The heart of the X3 20d is BMW’s B47 2.0-liter inline-four cylinder diesel engine. This engine utilizes a common-rail direct injection system, delivering fuel at extremely high pressure for optimized combustion. A twin-scroll turbocharger with intercooling enhances power output and responsiveness. The engine produces 197 horsepower at 4,000 rpm and 400 Nm (295 lb-ft) of torque between 1,500 and 2,750 rpm. The mild hybrid system, featuring a 48V lithium-ion battery and an integrated starter generator, provides a temporary power boost during acceleration and enables smoother start-stop operation, improving fuel efficiency. The 8-speed Steptronic automatic transmission is a torque-converter type, known for its smooth shifts and efficiency. It’s programmed to adapt to driving style and conditions, offering both automatic and manual shift modes.
Driving Characteristics
The X3 20d offers a comfortable and refined driving experience. While not as overtly sporty as higher-powered X3 variants, the 20d provides ample power for everyday driving and highway cruising. The mild hybrid system contributes to brisk acceleration, particularly from a standstill. The 8-speed transmission is well-matched to the engine’s torque curve, providing smooth and timely gear changes. The xDrive all-wheel-drive system ensures confident handling in various weather conditions. Compared to a manual transmission version (if offered in some markets), the automatic prioritizes ease of use and comfort over outright driver engagement. The 0-60 mph time of around 7.3 seconds is respectable for a diesel SUV of this size.
Equipment & Trim Levels
The standard equipment on the X3 20d typically includes BMW’s iDrive infotainment system with a touchscreen display, navigation, Apple CarPlay and Android Auto compatibility, automatic climate control, and a suite of driver-assistance features such as lane departure warning and forward collision warning. Interior upholstery is typically a combination of leatherette and cloth, with options for full leather upgrades. Optional extras include a premium sound system, panoramic sunroof, head-up display, and adaptive cruise control. Trim levels may vary by market, but generally offer increasing levels of luxury and technology.
Chassis & Braking
The X3 20d utilizes a robust chassis with a MacPherson strut front suspension and a multi-link rear suspension. Stabilizer bars are fitted to both axles to reduce body roll during cornering. The braking system consists of ventilated discs on all four wheels, providing ample stopping power. Anti-lock braking system (ABS) and electronic stability control (ESC) are standard features, enhancing safety and control.
Market Reception & Comparison
The X3 20d has been well-received in markets where diesel engines remain popular, offering a compelling blend of fuel efficiency, performance, and practicality. Critics have praised its comfortable ride, refined interior, and advanced technology. Compared to the X3 30i (gasoline), the 20d offers superior fuel economy and torque, making it a better choice for long-distance driving. However, the gasoline version provides quicker acceleration and a more responsive engine character. The 20d also offers a more economical alternative to the plug-in hybrid X3 xDrive30e, albeit with reduced electric-only range.
Legacy
The B47 engine family, including the version used in the X3 20d, has proven to be relatively reliable, although some early versions experienced issues with timing chain wear. Proper maintenance, including regular oil changes and adherence to BMW’s service schedule, is crucial for long-term durability. On the used car market, the X3 20d represents a good value proposition, offering a premium SUV experience at a competitive price. Its fuel efficiency and relatively low running costs make it an attractive option for buyers seeking a practical and economical luxury vehicle.
