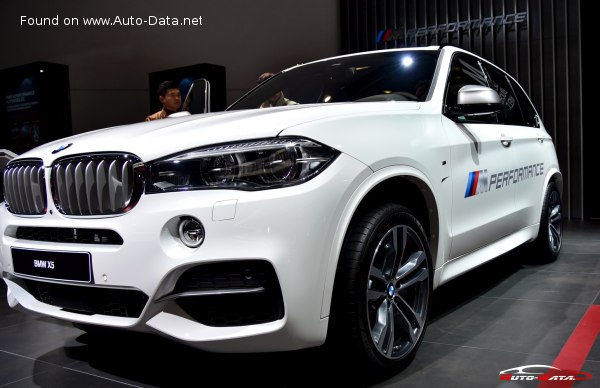

The BMW X5 (F15) M50d xDrive Steptronic, produced from 2013 to 2018, represents a compelling blend of performance, luxury, and efficiency within the second generation of the X5 Sports Activity Vehicle (SAV). Positioned as a near-top-of-the-line variant, the M50d offered a significant step up in power and refinement compared to the base models, while remaining more accessible than the full-fledged X5 M. It was primarily marketed towards buyers seeking a high-performance SUV with diesel efficiency, particularly in European markets where diesel engines held a strong preference. The F15 generation X5, built on the BMW Cluster Architecture (UKL) platform, aimed to improve upon the first generation (E70) with increased space, improved technology, and enhanced driving dynamics.
Technical Specifications
| Brand | BMW |
| Model | X5 |
| Generation | X5 (F15) |
| Type (Engine) | M50d (381 Hp) xDrive Steptronic |
| Start of production | 2013 |
| End of production | 2018 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SAV |
| Seats | 5-7 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 7.6 l/100 km (30.9 US mpg, 37.2 UK mpg, 13.2 km/l) |
| Fuel consumption (economy) – extra urban | 6.2 l/100 km (37.9 US mpg, 45.6 UK mpg, 16.1 km/l) |
| Fuel consumption (economy) – combined | 6.7 l/100 km (35.1 US mpg, 42.2 UK mpg, 14.9 km/l) |
| CO2 emissions | 177 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 5.3 sec |
| Acceleration 0 – 62 mph | 5.3 sec |
| Acceleration 0 – 60 mph | 5 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Emission standard | Euro 6 |
| Weight-to-power ratio | 5.7 kg/Hp, 174 Hp/tonne |
| Weight-to-torque ratio | 3 kg/Nm, 337.9 Nm/tonne |
| Power | 381 Hp @ 4000-4400 rpm |
| Power per litre | 127.3 Hp/l |
| Torque | 740 Nm @ 2000-3000 rpm (545.8 lb.-ft. @ 2000-3000 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | N57D30C |
| Engine displacement | 2993 cm3 (182.64 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 84 mm (3.31 in.) |
| Piston Stroke | 90 mm (3.54 in.) |
| Compression ratio | 16:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Twin-power turbo, Intercooler |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Coolant | 15.4 l (16.27 US qt | 13.55 UK qt) |
| Kerb Weight | 2190 kg (4828.12 lbs.) |
| Max. weight | 2900 kg (6393.41 lbs.) |
| Max load | 710 kg (1565.28 lbs.) |
| Trunk (boot) space – minimum | 650 l (22.95 cu. ft.) |
| Trunk (boot) space – maximum | 1870 l (66.04 cu. ft.) |
| Fuel tank capacity | 85 l (22.45 US gal | 18.7 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2700 kg (5952.48 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 140 kg (308.65 lbs.) |
| Length | 4886 mm (192.36 in.) |
| Width | 1938 mm (76.3 in.) |
| Width including mirrors | 2184 mm (85.98 in.) |
| Height | 1762 mm (69.37 in.) |
| Wheelbase | 2933 mm (115.47 in.) |
| Front track | 1662 mm (65.43 in.) |
| Rear (Back) track | 1702 mm (67.01 in.) |
| Front overhang | 890 mm (35.04 in.) |
| Rear overhang | 1063 mm (41.85 in.) |
| Ride height (ground clearance) | 209 mm (8.23 in.) |
| Drag coefficient (Cd) | 0.35 |
| Minimum turning circle (turning diameter) | 12.7 m (41.67 ft.) |
| Approach angle | 25° |
| Departure angle | 20° |
| Ramp-over (brakeover) angle | 20° |
| Wading depth | 500 mm (19.69 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 8 gears, automatic transmission Steptronic |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 255/50 R19; 285/45 R19 |
| Wheel rims size | 9J x 19; 10J x 19 |
Powertrain & Engine Architecture
The heart of the X5 M50d is the N57D30C engine, a 3.0-liter inline-six diesel engine. This engine is a highly sophisticated design featuring a common-rail direct injection system, variable geometry turbocharging, and an intercooler. The twin-power turbo setup utilizes two turbochargers – a smaller one for immediate response and a larger one for peak power – working in sequence to minimize turbo lag and deliver a broad torque curve. The N57 engine family is known for its robust construction and ability to handle significant power upgrades. The M50d variant benefits from reinforced internal components to cope with the increased output. The engine produces 381 horsepower at 4000-4400 rpm and a substantial 740 Nm (545.8 lb-ft) of torque between 2000-3000 rpm. This torque output is a key characteristic, providing effortless acceleration and strong pulling power. The engine is paired with an 8-speed Steptronic automatic transmission, which offers smooth and quick shifts. The transmission is programmed for both comfort and performance, with manual shift modes available via steering wheel-mounted paddles.
Driving Characteristics
The X5 M50d delivers a remarkably refined and powerful driving experience. The abundant torque allows for brisk acceleration in virtually any gear, making overtaking effortless. The 0-60 mph sprint is achieved in around 5 seconds, placing it firmly in performance SUV territory. While not as overtly sporty as the X5 M, the M50d offers a compelling balance between performance and comfort. The automatic transmission is well-matched to the engine, providing seamless gear changes and contributing to the overall smoothness. The xDrive all-wheel-drive system provides excellent traction in all weather conditions, enhancing stability and control. Compared to the 184 hp 2.0L four-cylinder X5, the M50d offers a dramatically different level of performance. Even compared to the X5 35i (300 hp), the M50d’s superior torque provides a more relaxed and confident driving experience, especially when fully loaded or towing.
Equipment & Trim Levels
The M50d trim typically came standard with a high level of equipment. Interior features included leather upholstery, power-adjustable front seats with memory function, a premium sound system, and a navigation system. Standard safety features included a suite of driver-assistance systems, such as lane departure warning, blind-spot monitoring, and automatic emergency braking. Optional extras included features like adaptive cruise control, a panoramic sunroof, and upgraded interior trim materials. The M50d also featured unique exterior styling cues, such as M Sport body kit, shadowline trim, and specific wheel designs, differentiating it from lower trim levels.
Chassis & Braking
The X5 M50d utilizes a sophisticated chassis design featuring a double-wishbone front suspension and a multi-link rear suspension. The suspension is tuned to provide a comfortable ride while maintaining good handling characteristics. Adaptive dampers were often included, allowing the driver to adjust the suspension stiffness to suit their preferences. The braking system consists of ventilated discs on all four wheels, providing ample stopping power. The M50d typically featured larger brake rotors and calipers compared to the base models. The xDrive all-wheel-drive system distributes power between the front and rear axles as needed, optimizing traction and stability.
Market Reception & Comparison
The X5 M50d was generally well-received by automotive critics. It was praised for its powerful engine, refined ride, and luxurious interior. The combination of diesel efficiency and performance was particularly appealing to European buyers. Compared to the petrol-powered X5 35i, the M50d offered significantly better fuel economy and a more relaxed driving experience. However, some critics noted that the diesel engine lacked the responsiveness and sound of a petrol engine. Against competitors like the Porsche Cayenne Diesel and the Audi Q7 TDI, the X5 M50d offered a compelling combination of performance, luxury, and value.
Legacy
The N57D30C engine has proven to be a durable and reliable powerplant, with many examples exceeding high mileage with proper maintenance. While diesel engines have faced increased scrutiny in recent years due to emissions concerns, the X5 M50d remains a desirable used car option for those seeking a high-performance, fuel-efficient SUV. The F15 X5 M50d represents a sweet spot in the X5 lineage, offering a compelling blend of performance, luxury, and practicality. Its robust engine and well-engineered chassis ensure that it remains a capable and enjoyable vehicle for years to come.
