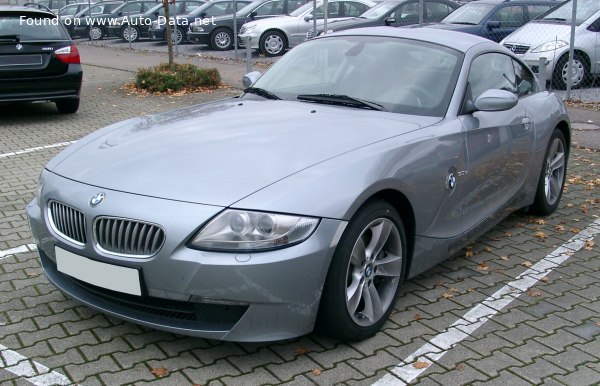

The BMW Z4 Coupe (E86) 3.0si, produced from 2006 to 2008, represents the high-performance variant of the first-generation Z4 Coupe. Positioned as the flagship model within the E86 range, it offered a significant step up in power and driving experience compared to the 2.0i and 2.5si models. Built on the 1HX0 platform shared with the Z4 Roadster, the Coupe distinguished itself with a fixed roof, enhancing structural rigidity and offering a more refined grand touring experience. The 3.0si aimed to deliver a blend of sporting agility and comfortable long-distance cruising, appealing to enthusiasts seeking a more practical and engaging alternative to traditional roadsters.
Technical Specifications
| Brand | BMW |
| Model | Z4 |
| Generation | Z4 Coupe (E86) |
| Type (Engine) | 3.0 si (265 Hp) |
| Start of production | 2006 |
| End of production | 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Coupe |
| Seats | 2 |
| Doors | 2 |
| Fuel consumption (economy) – urban | 13 l/100 km (18.1 US mpg, 21.7 UK mpg, 7.7 km/l) |
| Fuel consumption (economy) – extra urban | 6.5 l/100 km (36.2 US mpg, 43.5 UK mpg, 15.4 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 5.7 sec |
| Acceleration 0 – 62 mph | 5.7 sec |
| Acceleration 0 – 60 mph | 5.4 sec |
| Maximum speed | 250 km/h (155.34 mph) |
| Weight-to-power ratio | 5 kg/Hp, 200 Hp/tonne |
| Weight-to-torque ratio | 4.2 kg/Nm, 237.7 Nm/tonne |
| Power | 265 Hp @ 6600 rpm |
| Power per litre | 88.5 Hp/l |
| Torque | 315 Nm @ 2750 rpm (232.33 lb.-ft. @ 2750 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | N52B30A |
| Engine displacement | 2996 cm3 (182.83 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 10.7:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 6.5 l (6.87 US qt | 5.72 UK qt) |
| Kerb Weight | 1325 kg (2921.12 lbs.) |
| Max. weight | 1650 kg (3637.63 lbs.) |
| Max load | 325 kg (716.5 lbs.) |
| Trunk (boot) space – minimum | 285 l (10.06 cu. ft.) |
| Trunk (boot) space – maximum | 340 l (12.01 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4091 mm (161.06 in.) |
| Width | 1781 mm (70.12 in.) |
| Height | 1268 mm (49.92 in.) |
| Wheelbase | 2495 mm (98.23 in.) |
| Front track | 1473 mm (57.99 in.) |
| Rear (Back) track | 1523 mm (59.96 in.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system), Electric Power Steering |
| Tires size | 225/45 R17 |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The heart of the Z4 Coupe 3.0si is the N52B30A, a 3.0-liter inline-six engine. This engine is a naturally aspirated powerplant known for its smooth power delivery and responsiveness. The N52 featured Double-VANOS (variable valve timing on both intake and exhaust camshafts) and a magnesium alloy engine block, contributing to its relatively lightweight construction. Fuel is delivered via multi-port fuel injection, and the engine boasts a compression ratio of 10.7:1. The 3.0si exclusively came with a Getrag 265 6-speed manual transmission, known for its precise shifts and durability. This transmission was a key component in maximizing the engine’s performance potential. The engine’s longitudinal mounting and rear-wheel-drive configuration contribute to the car’s balanced handling characteristics.
Driving Characteristics
The 3.0si delivers a noticeably more engaging driving experience than its lower-powered siblings. The 265 horsepower and 232 lb-ft of torque provide brisk acceleration, with 0-60 mph times consistently in the low 5-second range. The manual transmission allows for precise control over the engine’s powerband, and the gear ratios are well-matched for both spirited driving and comfortable highway cruising. Compared to the 2.0i and 2.5si, the 3.0si offers significantly more mid-range punch, making overtaking maneuvers effortless. While not as raw or visceral as some contemporary sports cars, the Z4 Coupe 3.0si strikes a compelling balance between performance and refinement.
Equipment & Trim Levels
The 3.0si came standard with a generous array of features, including leather upholstery, automatic climate control, power-adjustable seats, and a premium sound system. Standard exterior features included 17-inch alloy wheels, xenon headlights, and a sport suspension. Optional extras included a navigation system, heated seats, and a glass roof. The interior design prioritized a driver-focused layout, with intuitive controls and a comfortable driving position. The overall ambiance was one of understated luxury, reflecting BMW’s commitment to quality and craftsmanship.
Chassis & Braking
The Z4 Coupe’s chassis benefits from the inherent rigidity of its fixed roof design. The suspension utilizes a McPherson strut setup at the front and a multi-link setup at the rear, providing a comfortable yet controlled ride. The 3.0si featured larger brakes compared to the lower trims, with ventilated discs at all four corners. ABS (Anti-lock Braking System) was standard, enhancing safety and stability during hard braking. The steering is electrically assisted, offering precise and responsive feedback. The car’s balanced weight distribution contributes to its neutral handling characteristics.
Market Reception & Comparison
The Z4 Coupe 3.0si was generally well-received by automotive critics, who praised its performance, handling, and refined interior. It was often compared favorably to rivals such as the Porsche Cayman and Audi TT. While the Cayman offered a more focused driving experience, the Z4 Coupe 3.0si provided a more comfortable and practical package. Fuel economy was respectable for a sports car of its caliber, averaging around 21 mpg combined. Reliability was generally good, although some owners have reported issues with the cooling system and oil leaks.
Legacy
The BMW Z4 Coupe (E86) 3.0si remains a desirable sports car in the used market today. Its combination of performance, style, and relative reliability has ensured its continued appeal to enthusiasts. The N52 engine is known for its longevity, provided it receives regular maintenance. While parts availability is generally good, some components can be expensive to replace. The 3.0si represents a sweet spot in the E86 lineup, offering a significant performance upgrade over the lower trims without the added complexity of the later M Coupe model. It stands as a testament to BMW’s engineering prowess and its commitment to creating engaging and rewarding driving experiences.
