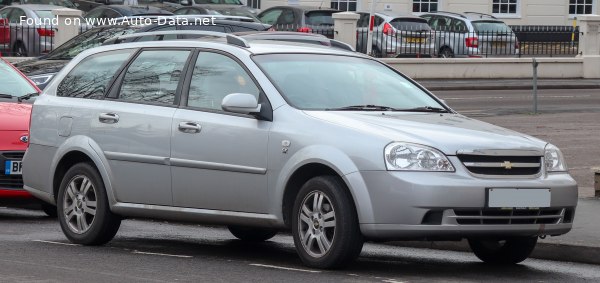

The Chevrolet Lacetti Wagon 1.8i 16V, produced between 2004 and 2009, represented Chevrolet’s entry into the compact estate (wagon) segment, primarily aimed at the European market. Built upon the J200 platform – also known internally as the 1HX0 – the Lacetti was intended to replace the aging Opel/Vauxhall Astra Classic and offered a practical, affordable alternative to established European competitors. The 1.8L engine with a five-speed manual transmission was a mid-range offering within the Lacetti Wagon lineup, positioned between the base 1.4L engine and the more powerful 2.0L variants. It aimed to balance fuel economy with acceptable performance for everyday driving needs.
Technical Specifications
| Brand | Chevrolet |
| Model | Lacetti |
| Generation | Lacetti Wagon |
| Type (Engine) | 1.8 i 16V (122 Hp) |
| Start of production | 2004 |
| End of production | 2009 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 9.8 l/100 km (24 US mpg) |
| Fuel consumption (extra urban) | 6.2 l/100 km (37.9 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.4 sec |
| Acceleration 0 – 62 mph | 10.4 sec |
| Acceleration 0 – 60 mph | 9.9 sec |
| Maximum speed | 194 km/h (120.55 mph) |
| Weight-to-power ratio | 10.5 kg/Hp |
| Weight-to-torque ratio | 7.8 kg/Nm |
| Power | 122 Hp @ 5800 rpm |
| Torque | 165 Nm @ 4000 rpm (121.7 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | LDA |
| Engine displacement | 1799 cm3 (109.78 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81.6 mm (3.21 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 9.8:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 3.75 l (3.96 US qt | 3.3 UK qt) |
| Coolant capacity | 7.5 l (7.93 US qt | 6.6 UK qt) |
| Kerb Weight | 1280 kg (2821.92 lbs.) |
| Max. weight | 1795 kg (3957.3 lbs.) |
| Max load | 515 kg (1135.38 lbs.) |
| Trunk (boot) space – minimum | 400 l (14.13 cu. ft.) |
| Trunk (boot) space – maximum | 1410 l (49.79 cu. ft.) |
| Fuel tank capacity | 60 l (15.85 US gal | 13.2 UK gal) |
| Length | 4580 mm (180.31 in.) |
| Width | 1725 mm (67.91 in.) |
| Height | 1460 mm (57.48 in.) |
| Wheelbase | 2660 mm (104.72 in.) |
| Front track | 1480 mm (58.27 in.) |
| Rear track | 1480 mm (58.27 in.) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/55 R15 |
Powertrain & Engine Architecture
The Chevrolet Lacetti Wagon 1.8i 16V utilized the LDA engine, a naturally aspirated, four-cylinder inline engine displacing 1799cc. This engine was a relatively simple design, employing a multi-port fuel injection system and a single overhead camshaft (SOHC) operating four valves per cylinder. The LDA engine was known for its robustness and relative ease of maintenance. The 9.8:1 compression ratio was a compromise between performance and the ability to run on readily available fuel grades. The five-speed manual transmission was a standard unit, providing reasonably well-spaced gear ratios for both city and highway driving. While not particularly innovative, the powertrain was designed for reliability and affordability.
Driving Characteristics
The 1.8L engine, producing 122 horsepower and 165 Nm (121.7 lb-ft) of torque, provided adequate performance for the Lacetti Wagon. Acceleration from 0-60 mph took approximately 9.9 seconds, and the car could reach a top speed of 194 km/h (120.55 mph). Compared to the base 1.4L engine, the 1.8L offered noticeably improved acceleration and highway cruising ability. However, it wasn’t a sporty performer. The five-speed manual transmission allowed drivers to keep the engine in its optimal power band, but the gear ratios weren’t particularly short, prioritizing fuel economy over outright acceleration. Compared to the 2.0L versions, the 1.8L felt less responsive, especially when fully loaded with passengers and cargo.
Equipment & Trim Levels
The 1.8i 16V trim typically included features such as power windows, central locking, air conditioning, and an integrated audio system. Interior upholstery was generally cloth, with a relatively simple dashboard layout. Optional extras included alloy wheels, a sunroof, and upgraded audio systems. The Lacetti Wagon aimed for a balance of practicality and affordability, so the standard equipment level was competitive but not overly luxurious. Higher trim levels, often denoted by “SE” or “CDX” designations, added features like automatic climate control, leather upholstery, and more sophisticated audio systems.
Chassis & Braking
The Lacetti Wagon featured a front-wheel-drive layout with an independent McPherson strut suspension at the front and a coil spring suspension at the rear. This suspension setup provided a comfortable ride quality, although it wasn’t particularly sporty. The car was equipped with disc brakes on all four wheels, along with an Anti-lock Braking System (ABS) as standard. The braking performance was adequate for everyday driving, but the system wasn’t particularly powerful. The relatively modest weight of the vehicle – around 1280 kg (2821.92 lbs) – helped to mitigate the limitations of the braking system.
Market Reception & Comparison
The Chevrolet Lacetti Wagon was generally well-received as a practical and affordable estate car. Critics praised its spacious interior, large cargo capacity, and competitive price point. However, some reviewers noted that the interior materials felt somewhat low-rent and that the driving experience wasn’t particularly engaging. Compared to rivals like the Ford Focus Estate and Opel/Vauxhall Astra Estate, the Lacetti Wagon offered a similar level of practicality but often at a lower price. Fuel economy was respectable, but not class-leading. Reliability reports were generally positive, with the LDA engine proving to be a durable and dependable unit.
Legacy
The Chevrolet Lacetti Wagon, particularly the 1.8i 16V variant, has become a relatively affordable and reliable used car option. The LDA engine is known for its longevity, and parts availability remains good. While not a collector’s item, the Lacetti Wagon represents a practical and honest offering from Chevrolet during the mid-2000s. Its spacious interior and large cargo capacity continue to make it a useful vehicle for families and those needing a versatile load-carrier. The simplicity of the powertrain also makes it relatively easy and inexpensive to maintain, contributing to its continued presence on the used car market.
