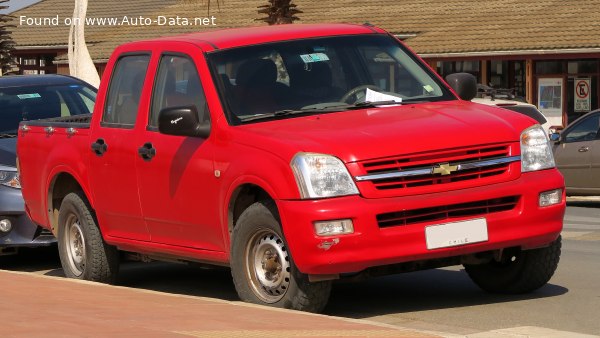

2006-2012 Chevrolet LUV D-MAX 2.5D (79 Hp)

The Chevrolet LUV D-MAX 2.5D, producing 79 horsepower, was a variant of the D-MAX series produced from 2006 to 2012. Positioned as an entry-level offering within the D-MAX range, it served as a work-oriented pickup truck primarily targeted at commercial users and those seeking an affordable, durable transportation solution. The LUV D-MAX, a rebadged Isuzu D-Max, represented Chevrolet’s foray into the increasingly popular compact pickup truck segment, particularly in markets outside of North America. This specific 2.5D variant was notable for its focus on fuel efficiency and low running costs, rather than outright performance.

Technical Specifications

Powertrain & Engine Architecture

The Chevrolet LUV D-MAX 2.5D was powered by a 2.5-liter inline-four cylinder diesel engine. This engine, derived from Isuzu’s 4JJ1 series, utilized a precombustion chamber injection system. This system, common in diesel engines of the era, involved injecting fuel into a precombustion chamber connected to the main cylinder, promoting more complete combustion. A turbocharger with an intercooler was employed to increase power output and improve efficiency. The engine featured a double overhead camshaft (DOHC) valvetrain, operating two valves per cylinder. The 4JJ1 engine was known for its robustness and relatively simple design, contributing to its longevity. The 79 horsepower output was achieved at 3800 rpm, while peak torque of 180 Nm (132.76 lb.-ft.) was available from a low 1200 rpm, emphasizing usability and load-carrying capability over high-speed performance. The engine was mounted longitudinally in the chassis.

Driving Characteristics

The 79 hp output and five-speed manual transmission resulted in a driving experience focused on practicality rather than excitement. Acceleration was modest, and the vehicle was best suited for steady cruising and hauling loads. The low-end torque, however, provided adequate pulling power for typical pickup truck duties. The gear ratios were optimized for fuel economy and load-carrying, meaning the engine would rev relatively high at highway speeds. Compared to higher-output versions of the D-MAX, such as those equipped with more powerful diesel engines, the 2.5D felt significantly less responsive. The manual transmission offered precise control, but the lack of a sixth gear meant that engine noise could be noticeable at higher speeds. The rear-wheel-drive configuration provided a traditional pickup truck feel, but also limited traction in slippery conditions.

Equipment & Trim Levels

The 2.5D LUV D-MAX typically represented the base trim level. Standard equipment generally included basic steel wheels, vinyl or cloth upholstery, a simple dashboard layout, and manual windows and door locks. Air conditioning was often an optional extra, as were power windows and central locking. Safety features were also basic, typically consisting of a driver’s airbag and seatbelts. The interior was designed with durability and ease of cleaning in mind, reflecting the truck’s work-oriented purpose. Higher trim levels of the D-MAX offered more luxurious features, such as alloy wheels, upgraded upholstery, and a more comprehensive infotainment system, but these were not typically found on the 2.5D variant.

Chassis & Braking

The LUV D-MAX utilized a body-on-frame construction, providing a robust and durable chassis. The suspension consisted of independent double wishbones at the front and leaf springs at the rear. The rear leaf spring suspension was chosen for its load-carrying capacity and durability. Braking was typically accomplished with disc brakes at the front and drum brakes at the rear. The drum brakes on the rear were a cost-saving measure common in entry-level pickup trucks. Stabilizer bars were often omitted on the base 2.5D model to further reduce cost. The steering was typically hydraulic power-assisted, providing reasonable maneuverability.

Market Reception & Comparison

The Chevrolet LUV D-MAX 2.5D was generally well-received as an affordable and reliable work truck. Critics praised its fuel efficiency and durability, but noted its lack of refinement and modest performance. Compared to other pickups in its class, such as the Toyota Hilux and Nissan Navara, the LUV D-MAX offered a more budget-friendly option. However, it often lacked the same level of features and refinement. The 2.5D engine, while economical, was significantly less powerful than the engines offered in competing models. In terms of reliability, the LUV D-MAX proved to be a dependable vehicle, with relatively few reported issues. Fuel economy was a strong point, making it an attractive option for businesses and individuals seeking to minimize operating costs.

Legacy

The Chevrolet LUV D-MAX 2.5D has established a reputation as a durable and affordable used pickup truck. The 4JJ1 engine, while not known for its high performance, is generally considered to be a reliable and long-lasting unit, provided it receives regular maintenance. Parts availability is generally good, as the D-MAX was a popular model in many markets. Today, these trucks are often found in the hands of farmers, tradespeople, and those seeking a simple, dependable work vehicle. While not a collector’s item, the LUV D-MAX 2.5D remains a practical and affordable option for those in need of a capable pickup truck.
