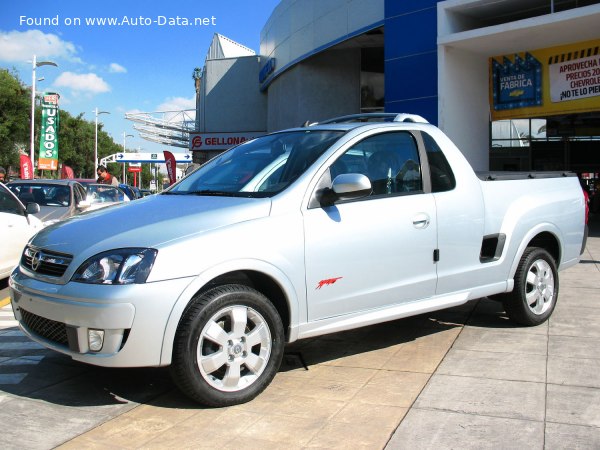

The Chevrolet Montana I Sport 1.8 (112/114 hp) Flexpower was a compact pickup truck produced by Chevrolet from 2003 to 2011. Positioned as an entry-level offering within the first generation Montana (2003-2011) lineup, it catered to buyers seeking an affordable and practical utility vehicle. The Montana, based on the Chevrolet Corsa subcompact car platform, was primarily marketed in South America, particularly Brazil, where it filled a unique niche as a small, car-based pickup. The “Flexpower” designation indicates the engine’s capability to run on both gasoline and ethanol (E85), a common feature in Brazilian vehicles. This variant occupied the middle ground in terms of performance and price, slotting below the more powerful versions and above the base engine options.
Technical Specifications
| Brand | Chevrolet |
| Model | Montana |
| Generation | Montana I |
| Type (Engine) | Sport 1.8 (112/114 Hp) Flexpower |
| Start of production | 2003 |
| End of production | 2011 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 2 |
| Doors | 2 |
| Fuel Type | Petrol / Ethanol – E85 |
| Weight-to-power ratio | 10.3 kg/Hp, 97.4 Hp/tonne |
| Weight-to-torque ratio | 6.6 kg/Nm, 151.3 Nm/tonne |
| Power | 112 Hp @ 5600 rpm |
| Power per litre | 62.4 Hp/l |
| Power (Ethanol – E85) | 114 Hp @ 5600 rpm |
| Power per litre (Ethanol – E85) | 63.5 Hp/l |
| Torque | 174 Nm @ 2800 rpm |
| Torque (lb-ft) | 128.34 lb.-ft. @ 2800 rpm |
| Maximum engine speed | 6300 rpm |
| Engine layout | Front, Transverse |
| Engine displacement | 1796 cm3 |
| Engine displacement (cu. in.) | 109.6 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80.5 mm |
| Cylinder Bore (in.) | 3.17 in. |
| Piston Stroke | 88.2 mm |
| Piston Stroke (in.) | 3.47 in. |
| Compression ratio | 10.5:1 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 3.5 l |
| Engine oil capacity (US qt) | 3.7 US qt |
| Engine oil capacity (UK qt) | 3.08 UK qt |
| Coolant | 5.4 l |
| Coolant (US qt) | 5.71 US qt |
| Coolant (UK qt) | 4.75 UK qt |
| Kerb Weight | 1150 kg |
| Kerb Weight (lbs) | 2535.32 lbs |
| Max. weight | 1850 kg |
| Max. weight (lbs) | 4078.55 lbs |
| Max load | 700 kg |
| Max load (lbs) | 1543.24 lbs |
| Trunk (boot) space – minimum | 1143 l |
| Trunk (boot) space – minimum (cu. ft.) | 40.36 cu. ft. |
| Fuel tank capacity | 56 l |
| Fuel tank capacity (US gal) | 14.79 US gal |
| Fuel tank capacity (UK gal) | 12.32 UK gal |
| Permitted trailer load with brakes (12%) | 1200 kg |
| Permitted trailer load with brakes (12%) (lbs) | 2645.55 lbs |
| Permitted trailer load without brakes | 450 kg |
| Permitted trailer load without brakes (lbs) | 992.08 lbs |
| Length | 4433 mm |
| Length (in.) | 174.53 in. |
| Width including mirrors | 1954 mm |
| Width including mirrors (in.) | 76.93 in. |
| Height | 1519 mm |
| Height (in.) | 59.8 in. |
| Wheelbase | 2714 mm |
| Wheelbase (in.) | 106.85 in. |
| Front track | 1417 mm |
| Front track (in.) | 55.79 in. |
| Rear (Back) track | 1440 mm |
| Rear (Back) track (in.) | 56.69 in. |
| Front overhang | 766 mm |
| Front overhang (in.) | 30.16 in. |
| Rear overhang | 953 mm |
| Rear overhang (in.) | 37.52 in. |
| Ride height (ground clearance) | 153 mm |
| Ride height (ground clearance) (in.) | 6.02 in. |
| Minimum turning circle (turning diameter) | 11.64 m |
| Minimum turning circle (turning diameter) (ft) | 38.19 ft |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Torsion |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 185/60 R15 |
| Wheel rims size | 5.5J x 15 |
Powertrain & Engine Architecture
The Montana I Sport 1.8 Flexpower utilized the Chevrolet/GM Family I 1.8L inline-four cylinder engine. This engine, designated as either the X18XE1 or similar depending on specific production year and market, was a relatively simple and robust design. It featured a single overhead camshaft (SOHC) valvetrain with two valves per cylinder. The multi-port fuel injection system delivered fuel directly to the intake ports, optimizing combustion efficiency. The engine’s “Flexpower” capability was achieved through a fuel system designed to accommodate varying ethanol content, up to E85 (85% ethanol, 15% gasoline). The 5-speed manual transmission was the standard offering for this trim level, providing a balance between fuel economy and drivability. The transmission featured typical gear ratios for a front-wheel-drive compact pickup, prioritizing acceleration in lower gears and comfortable cruising at highway speeds.
Driving Characteristics
The 1.8L engine, producing 112 hp and 174 Nm of torque, provided adequate performance for everyday driving in the Montana. Acceleration was not particularly brisk, but sufficient for navigating city streets and maintaining highway speeds with a light load. The manual transmission allowed drivers to maximize engine power and control, especially when hauling or towing. Compared to the base engine options, the 1.8L offered a noticeable improvement in responsiveness and overall capability. However, it fell short of the performance offered by higher-spec Montana models equipped with larger engines. The front-wheel-drive configuration provided predictable handling, but limited traction in slippery conditions. The suspension, tuned for comfort, offered a reasonably smooth ride, although it could feel somewhat bouncy when fully loaded.
Equipment & Trim Levels
The Sport 1.8 Flexpower trim typically included basic amenities such as power steering, air conditioning, and a basic audio system. Interior upholstery was typically vinyl or cloth, with a functional and durable design. Optional extras included power windows, central locking, and upgraded audio systems. The dashboard layout was simple and straightforward, prioritizing practicality over luxury. The Montana’s interior was designed to withstand the demands of commercial use, with durable materials and easy-to-clean surfaces.
Chassis & Braking
The Montana I utilized a body-on-frame construction, providing a robust and durable chassis. The front suspension featured an independent McPherson strut design with coil springs and an anti-roll bar, offering a reasonable balance between ride comfort and handling. The rear suspension employed a torsion beam setup, which was cost-effective and space-efficient. Braking duties were handled by disc brakes at the front and drum brakes at the rear. An Anti-lock Braking System (ABS) was standard, enhancing safety by preventing wheel lockup during hard braking. The relatively lightweight construction of the Montana helped to compensate for the modest braking performance.
Market Reception & Comparison
The Chevrolet Montana I Sport 1.8 Flexpower was generally well-received in the Brazilian market as a practical and affordable utility vehicle. Critics praised its fuel efficiency, particularly when running on ethanol, and its ability to handle a variety of tasks. However, some reviewers noted its lack of refinement and its relatively modest performance. Compared to other pickups in its class, the Montana offered a unique combination of car-like handling and truck-like utility. The 1.8L engine provided a good balance between power and fuel economy, making it a popular choice for both personal and commercial use. The Flexpower capability was a significant advantage in Brazil, where ethanol is widely available and often cheaper than gasoline.
Legacy
The Chevrolet Montana I Sport 1.8 Flexpower remains a common sight on Brazilian roads today. The 1.8L engine is known for its reliability and durability, although regular maintenance is essential to ensure long-term performance. The Montana’s simple design and readily available parts make it relatively easy and inexpensive to repair. In the used car market, the Sport 1.8 Flexpower trim offers good value for money, providing a practical and affordable transportation solution. The Montana’s success helped to establish Chevrolet as a leading player in the Brazilian pickup truck market, paving the way for future generations of the Montana.
