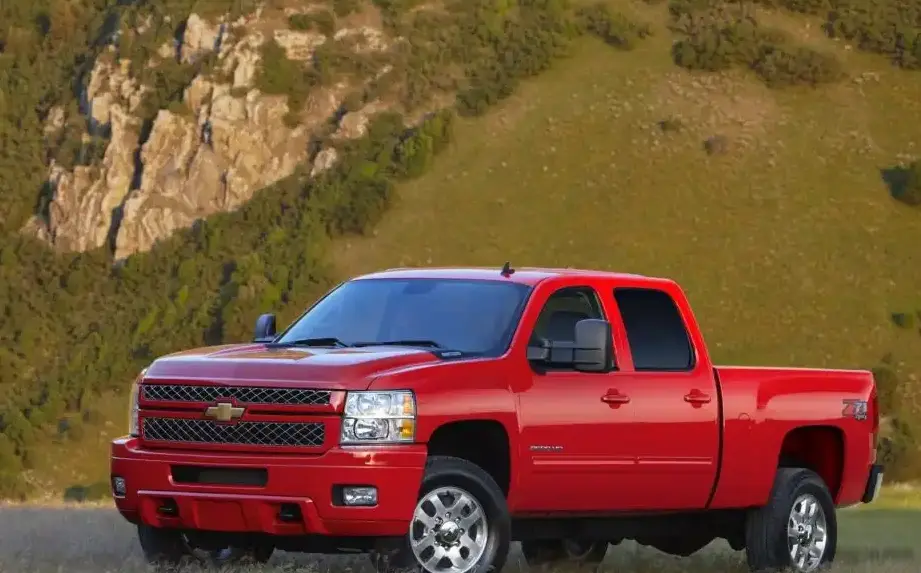

The Chevrolet Silverado 2500 HD II, specifically the Crew Cab Standard Box configuration with the 6.0-liter V8 engine and four-wheel drive automatic transmission, represents a significant iteration of Chevrolet’s heavy-duty pickup truck lineage. Produced from 2011 to 2014, this model falls within the GMT900 platform’s facelifted generation. It was positioned as a robust work truck and family hauler, offering a balance between capability, comfort, and technology for the American market. This variant aimed to provide a strong towing and payload capacity without sacrificing everyday usability, appealing to both commercial users and private owners needing a powerful pickup.
Technical Specifications
| Brand | Chevrolet |
| Model | Silverado 2500 HD |
| Generation | Silverado 2500 HD II (GMT900, facelift 2011) Crew Cab Standard Box |
| Type (Engine) | 6.0 V8 (360 Hp) 4WD Automatic |
| Start of production | 2011 |
| End of production | 2014 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Pick-up |
| Seats | 5 |
| Doors | 4 |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8.1 kg/Hp, 123.4 Hp/tonne |
| Weight-to-torque ratio | 5.7 kg/Nm, 176.5 Nm/tonne |
| Power | 360 Hp @ 5400 rpm |
| Power per litre | 60.3 Hp/l |
| Torque | 515 Nm @ 4200 rpm, 379.84 lb.-ft. @ 4200 rpm |
| Maximum engine speed | 6000 rpm |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | Vortec L96 |
| Engine displacement | 5967 cm3, 364.13 cu. in. |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 101.6 mm, 4 in. |
| Piston Stroke | 92 mm, 3.62 in. |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHV, VVT |
| Engine oil capacity | 5.7 l, 6.02 US qt | 5.02 UK qt |
| Coolant | 15.5 l, 16.38 US qt | 13.64 UK qt |
| Kerb Weight | 2918 kg, 6433.09 lbs. |
| Max. weight | 4309 kg, 9499.72 lbs. |
| Max load | 1391 kg, 3066.63 lbs. |
| Trunk (boot) space – maximum | 1718 l, 60.67 cu. ft. |
| Fuel tank capacity | 136 l, 35.93 US gal | 29.92 UK gal |
| Permitted trailer load with brakes (12%) | 5897 kg, 13000.66 lbs. |
| Length | 6101 mm, 240.2 in. |
| Width including mirrors | 2032 mm, 80 in. |
| Height | 1958 mm, 77.09 in. |
| Wheelbase | 3904 mm, 153.7 in. |
| Front track | 1748 mm, 68.82 in. |
| Rear (Back) track | 1709 mm, 67.28 in. |
| Ride height (ground clearance) | 208 mm, 8.19 in. |
| Minimum turning circle (turning diameter) | 15.4 m, 50.52 ft. |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary. |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 6 gears, automatic transmission Hydra-Matic |
| Front suspension | Independent torsion bar, double wishbone |
| Rear suspension | Rigid axle suspension, Leaf spring |
| Front brakes | Ventilated discs, 350×40 mm |
| Rear brakes | Ventilated discs, 360×34 mm |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Cone worm with recirculation balls |
| Tires size | 245/75 R17; 265/70 R17; 265/70 R18; 265/60 R20 |
| Wheel rims size | 7.5J x 17; 8J x 18; 8.5J x 20 |
Powertrain & Engine Architecture
At the heart of this Silverado 2500 HD II lies the Vortec L96 engine, a 6.0-liter (364 cubic inches) V8. This engine is a member of Chevrolet’s well-regarded Vortec family, known for its durability and relatively simple design. The L96 features a cast iron block and aluminum cylinder heads, contributing to its robust nature. It utilizes a multi-port fuel injection system, delivering fuel directly to each cylinder for efficient combustion. The overhead valve (OHV) valvetrain, coupled with variable valve timing (VVT), helps optimize performance across the engine’s operating range. The engine produces 360 horsepower at 5400 rpm and 515 lb-ft of torque at 4200 rpm. This power is channeled through a six-speed Hydra-Matic automatic transmission, providing smooth and responsive shifting. The 4WD system employs an electronically controlled transfer case, allowing the driver to switch between two-wheel drive, four-wheel drive high, and four-wheel drive low for optimal traction in various conditions.
Driving Characteristics
The 6.0-liter V8 and six-speed automatic combination delivers a capable, though not particularly sporty, driving experience. The emphasis is on torque, making it well-suited for towing and hauling heavy loads. Acceleration is adequate for everyday driving, but the truck’s substantial weight limits outright speed. The automatic transmission is programmed for smooth shifts and prioritizes fuel efficiency, but can sometimes feel hesitant during quick acceleration. Compared to the available Duramax diesel engine, this gasoline V8 offers less low-end torque and lower fuel economy. However, it provides a quieter and smoother ride, and avoids the higher maintenance costs associated with diesel engines. Compared to the smaller 5.3L V8, the 6.0L offers a noticeable increase in power and towing capacity.
Equipment & Trim Levels
The Silverado 2500 HD II Crew Cab Standard Box 6.0L 4WD typically came standard with features like air conditioning, power windows and locks, a basic audio system, and cloth upholstery. The Crew Cab configuration offered spacious seating for five passengers. Popular optional extras included leather upholstery, a premium audio system, navigation, a rearview camera, and various towing packages. Trim levels varied, but generally included Work Truck (WT), LT, and LTZ. The LT trim added features like chrome exterior accents, upgraded interior materials, and additional convenience features. The LTZ trim represented the highest level of luxury, offering features like leather seats, a premium sound system, and advanced safety technologies.
Chassis & Braking
The Silverado 2500 HD II utilizes a body-on-frame construction, providing a solid and durable platform for heavy-duty use. The front suspension features an independent torsion bar setup with double wishbone components, while the rear suspension employs a traditional leaf spring design. This configuration prioritizes load-carrying capacity and stability. Braking duties are handled by ventilated disc brakes on all four wheels, providing ample stopping power. An Anti-lock Braking System (ABS) is standard, enhancing safety during emergency braking situations. The truck’s robust chassis and braking system are designed to handle the demands of heavy towing and hauling.
Market Reception & Comparison
The 2011-2014 Chevrolet Silverado 2500 HD II with the 6.0-liter V8 and automatic transmission received generally positive reviews. Critics praised its strong towing capacity, comfortable ride, and spacious interior. However, fuel economy was a common criticism, as the gasoline V8 is less efficient than the available Duramax diesel engine. Compared to the diesel, the 6.0L offered a lower initial cost and simpler maintenance. Reliability was generally good, although some owners reported issues with the automatic transmission and fuel pump. The Silverado 2500 HD II competed primarily with the Ford Super Duty and Ram 2500/3500 series trucks.
Legacy
The Silverado 2500 HD II with the 6.0-liter V8 remains a popular choice in the used truck market. The Vortec L96 engine is known for its durability and relatively low maintenance costs, making it a reliable option for buyers seeking a capable work truck. While fuel economy is not its strong suit, the truck’s overall value and capability continue to attract buyers. Parts availability is excellent, and the truck’s simple design makes it relatively easy to repair. This generation Silverado 2500 HD solidified Chevrolet’s position as a leading manufacturer of heavy-duty pickup trucks in the United States.
