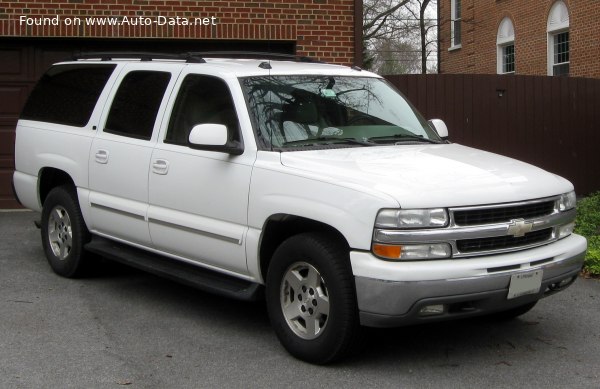

The Chevrolet Suburban (GMT800) 5.3L V8 1500, produced from 2000 to 2004, represents a significant iteration of Chevrolet’s long-running full-size SUV. Part of the GMT800 platform generation, this Suburban offered a blend of spaciousness, towing capacity, and V8 power, catering to families and those needing a robust vehicle for work or recreation. This particular variant, equipped with the 5.3-liter LM7 V8 engine and a four-speed automatic transmission, occupied a sweet spot in the Suburban lineup, providing a balance between capability and affordability. It served as a popular choice for buyers who didn’t require the higher performance of the 6.0L engine option, but still desired the benefits of a large, body-on-frame SUV.
Technical Specifications
| Brand | Chevrolet |
| Model | Suburban |
| Generation | Suburban (GMT800) |
| Type (Engine) | 5.3L i V8 1500 (288 Hp) |
| Start of production | 2000 |
| End of production | 2004 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 9 |
| Doors | 5 |
| Fuel consumption (urban) | 16.8 l/100 km (14 US mpg) |
| Fuel consumption (extra urban) | 13.1 l/100 km (18 US mpg) |
| Fuel consumption (combined) | 15.7 l/100 km (15 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 170 km/h (105.63 mph) |
| Weight-to-power ratio | 8 kg/Hp |
| Weight-to-torque ratio | 5.3 kg/Nm |
| Power | 288 Hp @ 5200 rpm |
| Power per litre | 54.1 Hp/l |
| Torque | 440 Nm @ 4400 rpm (324.53 lb.-ft. @ 4400 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | LM7 |
| Engine displacement | 5327 cm3 (325.07 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 96 mm (3.78 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 5.7 l (6.02 US qt | 5.02 UK qt) |
| Coolant capacity | 13.6 l (14.37 US qt | 11.97 UK qt) |
| Kerb Weight | 2310 kg (5092.68 lbs.) |
| Trunk (boot) space – minimum | 1290 l (45.56 cu. ft.) |
| Trunk (boot) space – maximum | 3720 l (131.37 cu. ft.) |
| Fuel tank capacity | 123 l (32.49 US gal | 27.06 UK gal) |
| Length | 5570 mm (219.29 in.) |
| Width | 2002 mm (78.82 in.) |
| Height | 1865 mm (73.43 in.) |
| Wheelbase | 3302 mm (130 in.) |
| Front track | 1651 mm (65 in.) |
| Rear track | 1676 mm (65.98 in.) |
| Drivetrain Architecture | Rear wheel drive |
| Number of gears | 4 |
| Gearbox type | Automatic transmission |
| Front suspension | Double wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system), Hydraulic Power Steering |
| Tires size | 245/75 R16 |
Powertrain & Engine Architecture
The heart of this Suburban variant is the 5.3-liter LM7 V8 engine. This engine, a member of Chevrolet’s small-block V8 family, is known for its durability and relatively simple design. The LM7 features a cast iron block, aluminum cylinder heads, and a two-valve-per-cylinder configuration. Fuel delivery is handled by a multi-port fuel injection system, providing adequate atomization for efficient combustion. The engine’s 9.5:1 compression ratio contributes to its respectable power output. Paired with the LM7 is a 4L60E four-speed automatic transmission. This transmission, a common choice for GM trucks and SUVs of the era, is known for its reliability and smooth shifting characteristics. While not offering the most advanced gear ratios, it provided sufficient gearing for both everyday driving and towing.
Driving Characteristics
The 5.3L V8 and 4L60E combination in the GMT800 Suburban delivers a comfortable, if not particularly sporty, driving experience. Acceleration is adequate for a vehicle of this size and weight, with 0-60 mph times typically in the 8-9 second range. The automatic transmission provides smooth shifts, but can feel somewhat dated compared to modern transmissions with more gears. The Suburban’s substantial weight (over 5,000 pounds) is noticeable, especially when braking or cornering. However, the coil spring rear suspension provides a reasonably comfortable ride, even on rough roads. Compared to the available 6.0L V8, the 5.3L offers less raw power, but also better fuel economy. The 5.3L also feels more manageable for everyday driving, as the 6.0L’s increased power can make it more challenging to modulate throttle inputs.
Equipment & Trim Levels
The 5.3L Suburban typically came standard with features like air conditioning, power windows and locks, and an AM/FM stereo. Higher trim levels, such as the LS and LT, added features like leather upholstery, upgraded sound systems, and alloy wheels. Optional extras included a DVD entertainment system, sunroof, and various towing packages. Interior upholstery was typically cloth on base models, with leather available on higher trims. The dashboard layout was functional and straightforward, prioritizing usability over aesthetics.
Chassis & Braking
The GMT800 Suburban utilizes a traditional body-on-frame construction, providing a robust and durable chassis. The front suspension consists of a double wishbone setup, while the rear features a coil spring arrangement. This suspension configuration prioritizes ride comfort and load-carrying capacity. Braking duties are handled by ventilated discs at all four corners, providing adequate stopping power for a vehicle of this size. Anti-lock brakes (ABS) were standard, enhancing safety in emergency braking situations. The rear drum brake option was available on some base models.
Market Reception & Comparison
The 5.3L Suburban was generally well-received by critics and consumers alike. It was praised for its spacious interior, comfortable ride, and strong towing capacity. However, its fuel economy was often criticized, as was typical for full-size SUVs of the era. Compared to the 6.0L V8 variant, the 5.3L offered a more affordable entry point into the Suburban lineup, with slightly better fuel economy. Compared to competitors like the Ford Expedition and GMC Yukon, the Suburban offered a similar level of capability and features, often at a competitive price point.
Legacy
The GMT800 Suburban 5.3L V8 1500 has proven to be a relatively reliable vehicle, with many examples still on the road today. The LM7 engine is known for its durability, and the 4L60E transmission, while not without its potential issues, is generally considered to be a robust unit. In the used car market, these Suburbans remain popular choices for those seeking a large, capable SUV at an affordable price. However, potential buyers should be aware of common issues such as oil leaks, transmission problems, and rust, particularly in areas with harsh winters. The GMT800 Suburban represents a pivotal moment in the evolution of the Suburban, solidifying its reputation as a versatile and dependable family vehicle.
