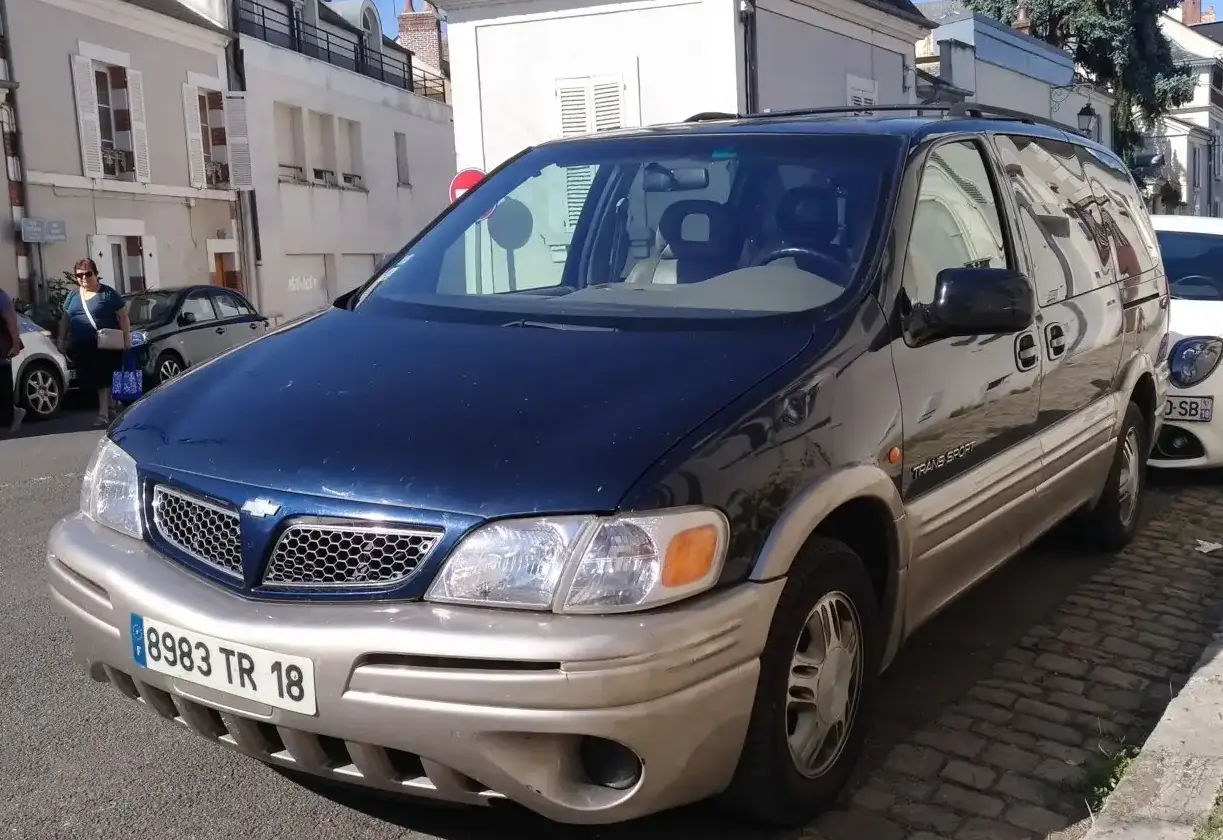

The Chevrolet Trans Sport (U) 3.4 i V6, produced from 1999 to 2005, represented a significant offering in the American minivan segment. Part of the U-body platform generation, it aimed to provide a comfortable and spacious family vehicle with a focus on practicality and value. This particular variant, equipped with the 3.4-liter V6 engine and a four-speed automatic transmission, occupied a mid-range position within the Trans Sport lineup, offering a balance between performance and affordability. It was positioned above the base models with smaller engines, but below any potential higher-performance or luxury-oriented trims.
Technical Specifications
| Brand | Chevrolet |
| Model | Trans Sport |
| Generation | Trans Sport (U) |
| Type (Engine) | 3.4 i V6 (186 Hp) |
| Start of production | 1999 year |
| End of production | 2005 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 7 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 13.2 l/100 km (17.8 US mpg) |
| Fuel consumption (economy) – extra urban | 7.9 l/100 km (29.8 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.2 sec |
| Acceleration 0 – 62 mph | 11.2 sec |
| Acceleration 0 – 60 mph | 10.6 sec |
| Maximum speed | 187 km/h (116.2 mph) |
| Weight-to-power ratio | 9.4 kg/Hp |
| Weight-to-torque ratio | 6.4 kg/Nm |
| Power | 186 Hp @ 5200 rpm |
| Torque | 270 Nm @ 4000 rpm (199.14 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | LA1 |
| Engine displacement | 3350 cm3 (204.43 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 92 mm (3.62 in.) |
| Piston Stroke | 84 mm (3.31 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 4.2 l (4.44 US qt | 3.7 UK qt) |
| Kerb Weight | 1740 kg (3836.04 lbs.) |
| Max. weight | 2430 kg (5357.23 lbs.) |
| Max load | 690 kg (1521.19 lbs.) |
| Trunk (boot) space – minimum | 685 l (24.19 cu. ft.) |
| Trunk (boot) space – maximum | 4415 l (155.91 cu. ft.) |
| Fuel tank capacity | 95 l (25.1 US gal | 20.9 UK gal) |
| Length | 5113 mm (201.3 in.) |
| Width | 1850 mm (72.83 in.) |
| Height | 1730 mm (68.11 in.) |
| Wheelbase | 3045 mm (119.88 in.) |
| Front track | 1560 mm (61.42 in.) |
| Rear (Back) track | 1610 mm (63.39 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 215/70 R15 H |
| Wheel rims size | 6J x 15 |
Powertrain & Engine Architecture
The heart of this Trans Sport variant was the 3.4-liter (3350 cc) LA1 V6 engine. This engine, a member of Chevrolet’s 60-degree V6 family, featured a cast iron block and aluminum cylinder heads. It utilized a multi-port fuel injection system, delivering fuel directly to each intake port for improved efficiency and power delivery. The engine produced 186 horsepower at 5200 rpm and 270 Nm (199 lb-ft) of torque at 4000 rpm. The 9.5:1 compression ratio was typical for naturally aspirated engines of this era. The engine’s design prioritized smooth operation and reliability over outright performance. Paired with the engine was a four-speed automatic transmission, a common choice for minivans prioritizing ease of use and comfort. This transmission was electronically controlled, offering smooth shifts and adapting to driving conditions.
Driving Characteristics
The 3.4L V6 and four-speed automatic combination provided adequate, though not exhilarating, performance for the Trans Sport. Acceleration from 0 to 60 mph took approximately 10.6 seconds, and the vehicle had a top speed of around 116 mph. The automatic transmission’s gear ratios were tuned for fuel efficiency and comfortable cruising, rather than aggressive acceleration. While the engine had sufficient torque for everyday driving and hauling passengers, it could feel strained when fully loaded or climbing steep hills. Compared to manual transmission versions or those equipped with the optional 3.8L V6, this variant offered a more relaxed driving experience, sacrificing some performance for convenience. The transmission’s shift points were generally smooth, but could sometimes feel hesitant during quick maneuvers.
Equipment & Trim Levels
The 3.4 i V6 Trans Sport typically came standard with features such as air conditioning, power windows and locks, an AM/FM stereo with cassette player, and cloth upholstery. Safety features included dual front airbags and ABS brakes. Optional extras included a CD player, upgraded sound system, leather upholstery, power sliding doors, and a rear entertainment system. The interior design was functional and family-oriented, with ample storage compartments and comfortable seating for seven passengers. The dashboard layout was straightforward and easy to use, with clearly labeled controls.
Chassis & Braking
The Trans Sport utilized a front-wheel-drive layout with an independent front suspension featuring coil springs and a multi-link rear suspension. This suspension setup provided a reasonably comfortable ride, absorbing bumps and irregularities in the road surface. The front brakes were ventilated discs, while the rear brakes were also ventilated discs, providing adequate stopping power for the vehicle’s weight. The steering was rack-and-pinion with hydraulic power assist, offering responsive and precise handling. The vehicle’s relatively high center of gravity and soft suspension tuning meant that it wasn’t particularly sporty to drive, but it was stable and predictable.
Market Reception & Comparison
The Chevrolet Trans Sport with the 3.4L V6 and automatic transmission was generally well-received by critics as a practical and affordable family vehicle. It offered a good balance of space, comfort, and features for the price. Fuel economy was reasonable for a minivan of its size, averaging around 17.8 mpg in the city and 29.8 mpg on the highway. Compared to other minivans in its class, such as the Dodge Caravan and Ford Windstar, the Trans Sport offered a competitive level of features and value. However, some critics noted that the interior materials were not as refined as those found in some of its rivals. Reliability was generally good, although some owners reported minor issues with the automatic transmission and fuel system.
Legacy
The Chevrolet Trans Sport 3.4 i V6 remains a relatively common sight on used car lots today. The 3.4L V6 engine is known for its durability and reliability, and with proper maintenance, it can provide many years of service. The four-speed automatic transmission is also generally reliable, although it may require occasional servicing. While not a particularly exciting vehicle to drive, the Trans Sport offers a practical and affordable transportation solution for families. Its spacious interior, comfortable ride, and reasonable fuel economy make it a popular choice among budget-conscious buyers. Parts availability is generally good, and maintenance costs are relatively low, making it an attractive option for those seeking a dependable used minivan.
