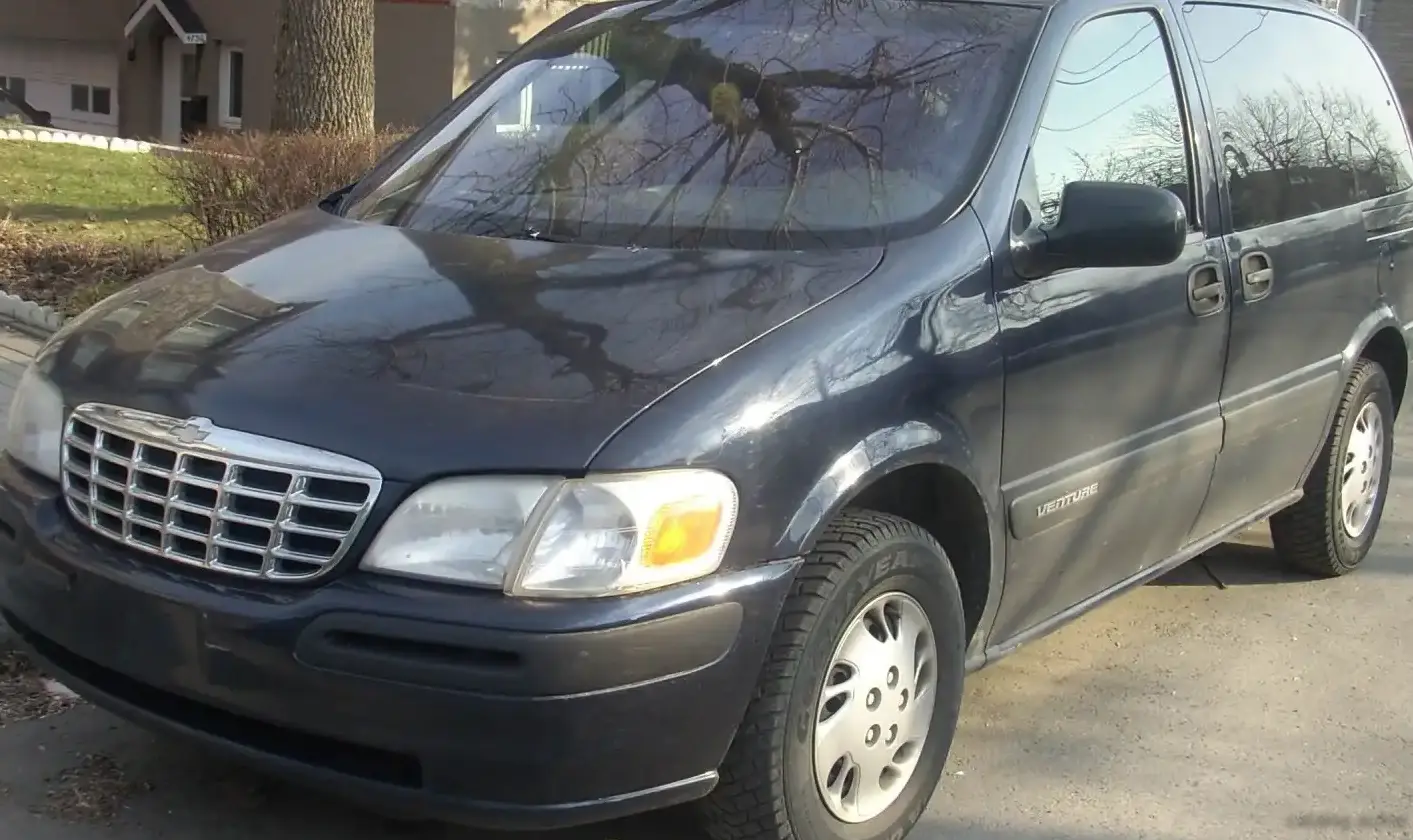

The Chevrolet Venture (U) 3.4 i V6 AWD, produced from 2001 to 2005, represented Chevrolet’s entry into the increasingly popular minivan segment. Positioned as a practical and family-oriented vehicle, the Venture aimed to compete with established rivals like the Dodge Caravan and Chrysler Town & Country. This particular variant, equipped with the 3.4-liter V6 engine and all-wheel drive, offered a balance of power and capability for drivers in regions experiencing inclement weather. It was a mid-range offering within the Venture lineup, slotting above the base models and below the more luxurious trims.
Technical Specifications
| Brand | Chevrolet |
| Model | Venture |
| Generation | Venture (U) |
| Type (Engine) | 3.4 i V6 AWD (188 Hp) |
| Start of production | 2001 year |
| End of production | 2005 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 7 |
| Doors | 4 |
| Fuel consumption (economy) – urban | 16.4 l/100 km (14.3 US mpg, 17.2 UK mpg, 6.1 km/l) |
| Fuel consumption (economy) – extra urban | 10.8 l/100 km (21.8 US mpg, 26.2 UK mpg, 9.3 km/l) |
| Fuel consumption (economy) – combined | 12.8 l/100 km (18.4 US mpg, 22.1 UK mpg, 7.8 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 13.2 sec |
| Acceleration 0 – 62 mph | 13.2 sec |
| Acceleration 0 – 60 mph | 12.5 sec |
| Maximum speed | 172 km/h (106.88 mph) |
| Weight-to-power ratio | 8.9 kg/Hp, 111.9 Hp/tonne |
| Weight-to-torque ratio | 5.9 kg/Nm, 169 Nm/tonne |
| Power | 188 Hp @ 5200 rpm |
| Power per litre | 56.1 Hp/l |
| Torque | 284 Nm @ 4000 rpm (209.47 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | LA1 |
| Engine displacement | 3350 cm3 (204.43 cu. in.) |
| Number of cylinders | 6 |
| Engine configuration | V-engine |
| Cylinder Bore | 92 mm (3.62 in.) |
| Piston Stroke | 84 mm (3.31 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 3 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Coolant | 9.1 l (9.62 US qt | 8.01 UK qt) |
| Kerb Weight | 1680 kg (3703.77 lbs.) |
| Max. weight | 2430 kg (5357.23 lbs.) |
| Max load | 750 kg (1653.47 lbs.) |
| Trunk (boot) space – minimum | 610 l (21.54 cu. ft.) |
| Trunk (boot) space – maximum | 3580 l (126.43 cu. ft.) |
| Fuel tank capacity | 76 l (20.08 US gal | 16.72 UK gal) |
| Length | 4750 mm (187.01 in.) |
| Width | 1830 mm (72.05 in.) |
| Height | 1710 mm (67.32 in.) |
| Wheelbase | 2845 mm (112.01 in.) |
| Front track | 1560 mm (61.42 in.) |
| Rear (Back) track | 1610 mm (63.39 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/65 R15 |
Powertrain & Engine Architecture
The heart of the Venture 3.4 i AWD was the LA1 3.4-liter (3350 cc) 60-degree V6 engine. This engine was part of GM’s L89 V6 family, known for its relatively smooth operation and adequate power delivery. It utilized a cast iron block with aluminum cylinder heads, a configuration common for durability and weight reduction. The engine employed multi-port fuel injection, delivering fuel directly to each intake port for improved combustion efficiency. The valvetrain featured two valves per cylinder, operated by a single overhead camshaft. The 4L60-E four-speed automatic transmission was the sole transmission option for this variant. This transmission was a workhorse unit, known for its reliability, but not particularly for its fuel efficiency or sporty shift characteristics. The all-wheel-drive system was an important feature, employing a viscous coupling to transfer torque to the rear wheels when front wheel slippage was detected, enhancing traction in adverse conditions.
Driving Characteristics
The 188 horsepower and 209 lb-ft of torque produced by the 3.4L V6 were sufficient for moving the Venture and its occupants, but performance was not its strong suit. Acceleration from 0-60 mph took around 12.5 seconds, making it a leisurely experience. The four-speed automatic transmission, while reliable, had relatively wide gear ratios, which contributed to a noticeable lack of responsiveness during quick acceleration. The automatic transmission prioritized smooth shifts over aggressive performance. The all-wheel-drive system provided enhanced stability and traction, particularly on slippery surfaces, but added weight, slightly impacting fuel economy and handling. Compared to the base 3.0L V6 Venture, the 3.4L offered a noticeable improvement in acceleration and overall power, while the manual transmission options (available on other trims) provided a more engaging driving experience.
Equipment & Trim Levels
The Venture 3.4 i AWD typically came standard with features such as air conditioning, power windows and locks, an AM/FM stereo with cassette player, and cloth upholstery. Safety features included dual front airbags and ABS brakes. Optional extras included a CD player, upgraded sound system, leather upholstery, power-adjustable front seats, and a rear entertainment system. The interior design was functional and family-focused, with ample storage compartments and a relatively spacious cabin. The dashboard layout was straightforward and easy to use, prioritizing practicality over aesthetics.
Chassis & Braking
The Venture utilized a body-on-frame construction, which was common for minivans of that era. The front suspension consisted of independent coil springs and a stabilizer bar, while the rear suspension employed a solid axle with coil springs. The braking system featured ventilated discs on the front wheels and drum brakes on the rear. The ABS system helped to prevent wheel lockup during hard braking, improving stability and control. The suspension tuning was geared towards providing a comfortable ride, rather than sporty handling. The stabilizer bar helped to reduce body roll during cornering, but the overall handling characteristics were typical of a large minivan.
Market Reception & Comparison
The Chevrolet Venture received mixed reviews from automotive critics. While praised for its spacious interior and practical features, it was often criticized for its uninspired styling and lackluster performance. The 3.4L V6 AWD variant was generally considered a good compromise for drivers needing extra traction and power, but its fuel economy was a concern. Compared to the base 3.0L V6 models, the 3.4L offered a noticeable performance improvement, but at a higher price point. The all-wheel-drive system added to the cost and complexity, but provided a significant advantage in regions with harsh winters or challenging road conditions. Reliability was generally considered average, with some reports of transmission issues and minor engine problems.
Legacy
The Chevrolet Venture, while not a standout performer in its segment, served as a solid and reliable family vehicle for many owners. The 3.4L V6 and 4L60-E transmission combination proved to be reasonably durable, with many examples still on the road today. However, as with any vehicle of this age, maintenance is key to ensuring long-term reliability. The Venture’s legacy lies in its practicality and affordability, offering a spacious and versatile transportation solution for families. On the used car market, Ventures in good condition can be found at relatively low prices, making them an attractive option for budget-conscious buyers seeking a functional minivan.
