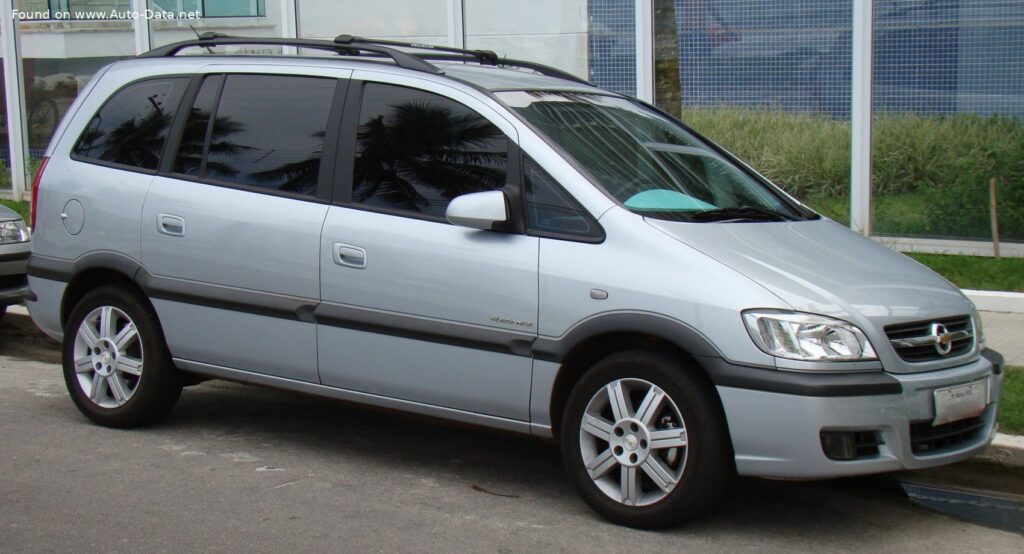

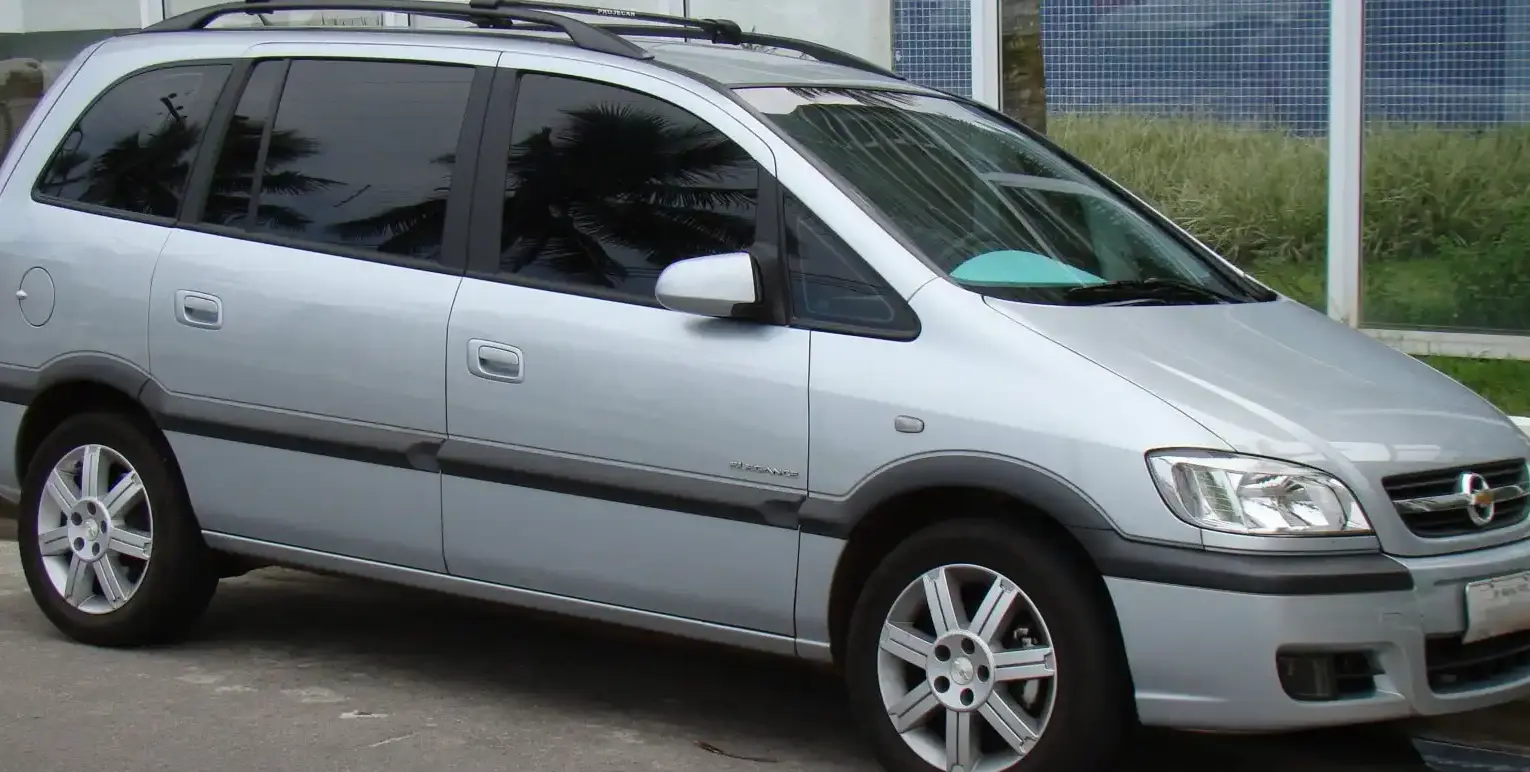

The Chevrolet Zafira 2.0 16V, producing 136 horsepower, was a significant variant within the first generation (1999-2005, with production continuing in some markets until 2012) of Chevrolet’s popular compact minivan. Introduced in 2001, this model aimed to provide a balance between performance and affordability within the Zafira lineup, appealing to families seeking a versatile and practical vehicle. It occupied a mid-range position, offering more power than the base 1.6L engine but remaining more accessible than the later, more powerful 2.2L Direct Injection models. The Zafira, initially developed by Opel, was sold under the Chevrolet brand in many markets outside of Europe, including Latin America and Australia, and represented GM’s entry into the increasingly popular multi-purpose vehicle (MPV) segment.
Technical Specifications
| Brand | Chevrolet |
| Model | Zafira |
| Generation | Zafira (First Generation) |
| Type (Engine) | 2.0 16V (136 Hp) |
| Start of production | 2001 |
| End of production | 2012 |
| Powertrain Architecture | Internal Combustion Engine |
| Body type | Minivan |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 11.6 l/100 km (20.3 US mpg) |
| Fuel consumption (extra urban) | 8 l/100 km (29.4 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.7 sec |
| Acceleration 0 – 62 mph | 11.7 sec |
| Acceleration 0 – 60 mph | 11.1 sec |
| Maximum speed | 186 km/h (115.58 mph) |
| Power | 136 Hp @ 5400 rpm |
| Torque | 188 Nm @ 4000 rpm (138.66 lb.-ft. @ 4000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | X20XEV |
| Engine displacement | 1998 cm3 (121.93 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 86 mm (3.39 in.) |
| Piston Stroke | 86 mm (3.39 in.) |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Width | 1740 mm (68.5 in.) |
| Height | 1650 mm (64.96 in.) |
| Wheelbase | 2705 mm (106.5 in.) |
| Front track | 1470 mm (57.87 in.) |
| Rear track | 1485 mm (58.46 in.) |
| Drivetrain | Front Wheel Drive |
| Number of gears | 5 |
| Gearbox type | Manual Transmission |
| Front suspension | Spring Strut |
| Rear suspension | Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 195/65 R15 |
Powertrain & Engine Architecture
The Zafira 2.0 16V utilized the X20XEV engine, a naturally aspirated, four-cylinder inline engine displacing 1998cc. This engine was a mainstay in Opel/Vauxhall and Chevrolet vehicles of the era. It featured a cast iron block and an aluminum cylinder head, incorporating a dual overhead camshaft (DOHC) valvetrain with four valves per cylinder. This configuration allowed for efficient cylinder filling and improved breathing, contributing to the engine’s respectable power output. Fuel delivery was managed by a multi-port fuel injection system, providing precise fuel metering for optimal combustion. The X20XEV was known for its relative simplicity and robustness, making it a reliable powerplant. The five-speed manual transmission was the standard offering, providing drivers with good control over the engine’s powerband. The transmission’s gear ratios were tuned for a balance of acceleration and fuel efficiency.
Driving Characteristics
The 136 hp Zafira 2.0 16V offered a noticeable step up in performance compared to the base 1.6L models. While not a sports car, it provided adequate power for everyday driving and comfortably handled a fully loaded vehicle with passengers and luggage. Acceleration from 0-60 mph took around 11.1 seconds, which was competitive for its class at the time. The engine delivered a reasonably linear power curve, with peak torque available at 4000 rpm. This made it easy to drive in various conditions, with sufficient grunt for overtaking maneuvers. Compared to the later 2.2L Direct Injection engine, the 2.0L felt less responsive at higher engine speeds, but it offered a smoother and more predictable driving experience. The manual transmission allowed for precise gear selection, enhancing driver engagement.
Equipment & Trim Levels
The Zafira 2.0 16V typically came equipped with a reasonable level of standard features. These included power windows, central locking, power steering, and an anti-lock braking system (ABS). Interior upholstery was usually cloth, with a functional and durable design. Higher trim levels offered options such as air conditioning, alloy wheels, a CD player, and upgraded interior trim. The Zafira’s defining feature, its flexible seating arrangement (Flex7 system), was standard across all models, allowing the rear seats to be folded flat or even removed entirely to create a larger cargo area. This versatility was a key selling point for the Zafira.
Chassis & Braking
The Zafira 2.0 16V utilized a MacPherson strut front suspension and a trailing arm rear suspension. This setup provided a comfortable ride quality while maintaining reasonable handling characteristics. The front brakes were ventilated discs, offering good stopping power, while the rear brakes were solid discs. The ABS system helped to prevent wheel lockup during hard braking, enhancing safety. The steering was rack and pinion, providing precise and responsive steering feel. The suspension was tuned to prioritize comfort over outright sportiness, making it well-suited for family transportation.
Market Reception & Comparison
The Chevrolet Zafira 2.0 16V was generally well-received by automotive critics. It was praised for its spacious interior, versatile seating arrangement, and reasonable performance. However, some critics noted that the engine could feel strained when fully loaded or driving uphill. Compared to other MPVs in its class, such as the Renault Scenic and the Ford Focus C-Max, the Zafira offered a competitive combination of features, space, and price. Fuel economy was average for its class, with combined fuel consumption around 25 mpg. Reliability was generally good, although some owners reported minor issues with the electrical system.
Legacy
The Chevrolet Zafira 2.0 16V remains a popular choice in the used car market, particularly for families seeking an affordable and practical MPV. The X20XEV engine is known for its durability and relatively low maintenance costs. While not the most exciting vehicle to drive, it offers a comfortable and reliable transportation solution. Parts availability is generally good, and the Zafira’s simple mechanical design makes it relatively easy to repair. The Zafira helped establish Chevrolet as a credible player in the European MPV market and paved the way for future generations of the Zafira.
