| General information | |
|---|---|
| Brand | Citroen |
| Model | C4 |

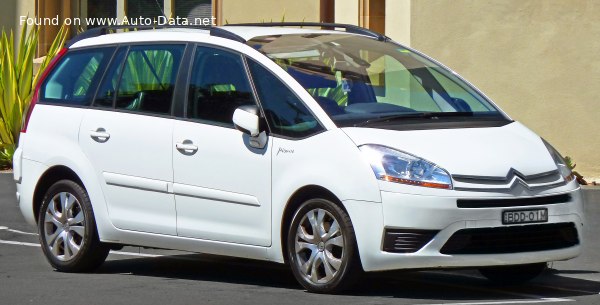

| Generation | C4 I Grand Picasso (Phase I, 2006) |
| Type (Engine) | 1.6 THP (150 Hp) EGS |
| Start of production | 2008 year |
| End of production | 2010 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan, MPV |
| Seats | 7 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 10 l/100 km 23.5 US mpg 28.2 UK mpg 10 km/l |
| Fuel consumption (economy) – extra urban | 5.9 l/100 km 39.9 US mpg 47.9 UK mpg 16.9 km/l |
| Fuel consumption (economy) – combined | 7.4 l/100 km 31.8 US mpg 38.2 UK mpg 13.5 km/l |
| CO2 emissions | 176 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.2 sec |
| Acceleration 0 – 62 mph | 10.2 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 9.7 sec |
| Maximum speed | 204 km/h 126.76 mph |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 10.2 kg/Hp, 98 Hp/tonne |
| Weight-to-torque ratio | 6.4 kg/Nm, 156.9 Nm/tonne |
| Engine specs | |
| Power | 150 Hp @ 5800 rpm. |
| Power per litre | 93.9 Hp/l |
| Torque | 240 Nm @ 1400-4000 rpm. 177.01 lb.-ft. @ 1400-4000 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 5FX EP6DT |
| Engine displacement | 1598 cm3 97.52 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 77 mm 3.03 in. |
| Piston Stroke | 85.8 mm 3.38 in. |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 4.25 l 4.49 US qt | 3.74 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 6.2 l 6.55 US qt | 5.46 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1530 kg 3373.07 lbs. |
| Max. weight | 2220 kg 4894.26 lbs. |
| Max load | 690 kg 1521.19 lbs. |
| Trunk (boot) space – minimum | 208 l 7.35 cu. ft. |
| Trunk (boot) space – maximum | 1951 l 68.9 cu. ft. |
| Fuel tank capacity | 60 l 15.85 US gal | 13.2 UK gal |
| Max. roof load | 80 kg 176.37 lbs. |
| Permitted trailer load with brakes (12%) | 1500 kg 3306.93 lbs. |
| Permitted trailer load without brakes | 750 kg 1653.47 lbs. |
| Permitted towbar download | 60 kg 132.28 lbs. |
| Dimensions | |
| Length | 4590 mm 180.71 in. |
| Width | 1830 mm 72.05 in. |
| Width including mirrors | 2100 mm 82.68 in. |
| Height | 1660-1710 mm 65.35 – 67.32 in. |
| Wheelbase | 2728 mm 107.4 in. |
| Front track | 1505 mm 59.25 in. |
| Rear (Back) track | 1539 mm 60.59 in. |
| Front overhang | 995 mm 39.17 in. |
| Rear overhang | 867 mm 34.13 in. |
| Drag coefficient (Cd) | 0.31 |
| Minimum turning circle (turning diameter) | 11.85 m 38.88 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission EGS |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 215/50 R17 |
| Wheel rims size | 17 |
| What is the body type, Citroen C4 I Grand Picasso (Phase I, 2006)? | Minivan, MPV, 5 Doors, 7 Seats |
|---|---|
| What is the fuel economy, Citroen C4 I Grand Picasso (Phase I, 2006) 1.6 THP (150 Hp) EGS? | 7.4 l/100 km 31.8 US mpg 38.2 UK mpg 13.5 km/l |
| How ECO is the car, Citroen C4 1.6 THP (150 Hp) EGS? | 176 g/km CO2 Euro 4 |
| How fast is the car, 2008 C4 I Grand Picasso (Phase I, 2006) 1.6 THP (150 Hp) EGS? | 204 km/h | 126.76 mph 0-100 km/h: 10.2 sec 0-60 mph: 9.7 sec |
| How much power, Citroen C4 Minivan, MPV 2008 1.6 THP (150 Hp) EGS? | 150 Hp, 240 Nm 177.01 lb.-ft. |
| What is the engine size, Citroen C4 Minivan, MPV 2008 1.6 THP (150 Hp) EGS? | 1.6 l 1598 cm3 97.52 cu. in. |
| How many cylinders, 2008 Citroen 1.6 THP (150 Hp) EGS? | 4, Inline |
| What is the drivetrain, Citroen C4 I Grand Picasso (Phase I, 2006) Minivan, MPV 2008 1.6 THP (150 Hp) EGS? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2008 Citroen C4 Minivan, MPV? | 4590 mm 180.71 in. |
| How wide is the vehicle, 2008 Citroen C4 Minivan, MPV? | 1830 mm 72.05 in. |
| What is the curb weight, 2008 Citroen C4 I Grand Picasso (Phase I, 2006) 1.6 THP (150 Hp) EGS? | 1530 kg 3373.07 lbs. |
| What is the gross weight, 2008 Citroen C4 I Grand Picasso (Phase I, 2006) 1.6 THP (150 Hp) EGS? | 2220 kg 4894.26 lbs. |
| How much trunk (boot) space, 2008 Citroen C4 Minivan, MPV? | 208 – 1951 l 7.35 – 68.9 cu. ft. |
| How many gears, What type is the gearbox, 2008 Citroen C4 I Grand Picasso (Phase I, 2006) 1.6 THP (150 Hp) EGS? | 6, automatic transmission EGS |
