| General information | |
|---|---|
| Brand | Citroen |
| Model | C4 |

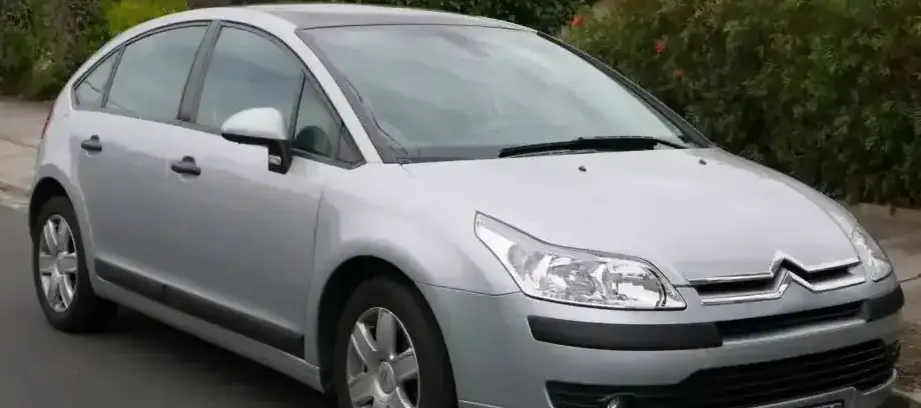

| Generation | C4 I Hatchback (Phase I, 2004) |
| Type (Engine) | 1.6i 16V (109 Hp) |
| Start of production | 2004 year |
| End of production | 2008 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Performance specs | |
| Fuel consumption (economy) – urban | 9.5 l/100 km 24.8 US mpg 29.7 UK mpg 10.5 km/l |
| Fuel consumption (economy) – extra urban | 5.7 l/100 km 41.3 US mpg 49.6 UK mpg 17.5 km/l |
| Fuel consumption (economy) – combined | 7.1 l/100 km 33.1 US mpg 39.8 UK mpg 14.1 km/l |
| CO2 emissions | 169 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 11.9 sec |
| Acceleration 0 – 62 mph | 11.9 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 11.3 sec |
| Maximum speed | 194 km/h 120.55 mph |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 11 kg/Hp, 90.8 Hp/tonne |
| Weight-to-torque ratio | 8.2 kg/Nm, 122.5 Nm/tonne |
| Engine specs | |
| Power | 109 Hp @ 5750 rpm. |
| Power per litre | 68.7 Hp/l |
| Torque | 147 Nm @ 4000 rpm. 108.42 lb.-ft. @ 4000 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | NFU TU5JP4 |
| Engine displacement | 1587 cm3 96.84 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 78.5 mm 3.09 in. |
| Piston Stroke | 82 mm 3.23 in. |
| Compression ratio | 9.6:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 3.25 l 3.43 US qt | 2.86 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 6.2 l 6.55 US qt | 5.46 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1200 kg 2645.55 lbs. |
| Max. weight | 1732 kg 3818.41 lbs. |
| Max load | 532 kg 1172.86 lbs. |
| Trunk (boot) space – minimum | 320 l 11.3 cu. ft. |
| Trunk (boot) space – maximum | 1023 l 36.13 cu. ft. |
| Fuel tank capacity | 60 l 15.85 US gal | 13.2 UK gal |
| Max. roof load | 75 kg 165.35 lbs. |
| Permitted trailer load with brakes (8%) | 1400 kg 3086.47 lbs. |
| Permitted trailer load with brakes (12%) | 1200 kg 2645.55 lbs. |
| Permitted trailer load without brakes | 637 kg 1404.34 lbs. |
| Permitted towbar download | 61 kg 134.48 lbs. |
| Dimensions | |
| Length | 4260 mm 167.72 in. |
| Width | 1773 mm 69.8 in. |
| Width including mirrors | 1964 mm 77.32 in. |
| Height | 1471 mm 57.91 in. |
| Wheelbase | 2608 mm 102.68 in. |
| Front track | 1497 mm 58.94 in. |
| Rear (Back) track | 1510 mm 59.45 in. |
| Front overhang | 935 mm 36.81 in. |
| Rear overhang | 717 mm 28.23 in. |
| Drag coefficient (Cd) | 0.29 |
| Minimum turning circle (turning diameter) | 11.3 m 37.07 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
| What is the body type, Citroen C4 I Hatchback (Phase I, 2004)? | Hatchback, 5 Doors, 5 Seats |
|---|---|
| What is the fuel economy, Citroen C4 I Hatchback (Phase I, 2004) 1.6i 16V (109 Hp)? | 7.1 l/100 km 33.1 US mpg 39.8 UK mpg 14.1 km/l |
| How ECO is the car, Citroen C4 1.6i 16V (109 Hp)? | 169 g/km CO2 Euro 4 |
| How fast is the car, 2004 C4 I Hatchback (Phase I, 2004) 1.6i 16V (109 Hp)? | 194 km/h | 120.55 mph 0-100 km/h: 11.9 sec 0-60 mph: 11.3 sec |
| How much power, Citroen C4 Hatchback 2004 1.6i 16V (109 Hp)? | 109 Hp, 147 Nm 108.42 lb.-ft. |
| What is the engine size, Citroen C4 Hatchback 2004 1.6i 16V (109 Hp)? | 1.6 l 1587 cm3 96.84 cu. in. |
| How many cylinders, 2004 Citroen 1.6i 16V (109 Hp)? | 4, Inline |
| What is the drivetrain, Citroen C4 I Hatchback (Phase I, 2004) Hatchback 2004 1.6i 16V (109 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2004 Citroen C4 Hatchback? | 4260 mm 167.72 in. |
| How wide is the vehicle, 2004 Citroen C4 Hatchback? | 1773 mm 69.8 in. |
| What is the curb weight, 2004 Citroen C4 I Hatchback (Phase I, 2004) 1.6i 16V (109 Hp)? | 1200 kg 2645.55 lbs. |
| What is the gross weight, 2004 Citroen C4 I Hatchback (Phase I, 2004) 1.6i 16V (109 Hp)? | 1732 kg 3818.41 lbs. |
| How much trunk (boot) space, 2004 Citroen C4 Hatchback? | 320 – 1023 l 11.3 – 36.13 cu. ft. |
| How many gears, What type is the gearbox, 2004 Citroen C4 I Hatchback (Phase I, 2004) 1.6i 16V (109 Hp)? | 5, manual transmission |
