| General information | |
|---|---|

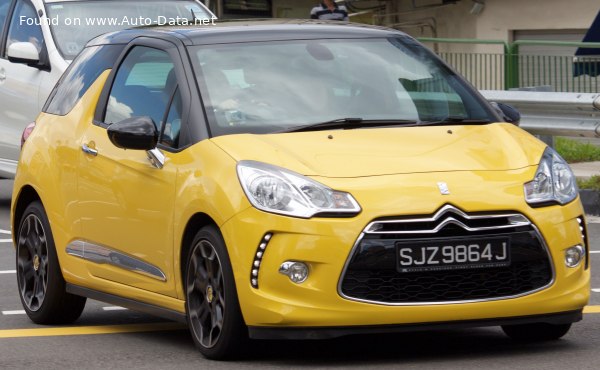

| Brand | Citroen |
| Model | DS3 |
| Generation | DS 3 (Phase I) |
| Type (Engine) | 1.6 VTi Airdream (120 Hp) |
| Start of production | 2009 year |
| End of production | 2014 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Performance specs | |
| Fuel consumption (economy) – urban | 7.9-8.0 l/100 km 29.8 – 29.4 US mpg 35.8 – 35.3 UK mpg 12.7 – 12.5 km/l |
| Fuel consumption (economy) – extra urban | 4.8-4.9 l/100 km 49 – 48 US mpg 58.9 – 57.6 UK mpg 20.8 – 20.4 km/l |
| Fuel consumption (economy) – combined | 5.9-6.0 l/100 km 39.9 – 39.2 US mpg 47.9 – 47.1 UK mpg 16.9 – 16.7 km/l |
| CO2 emissions | 136-138 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 8.9 sec |
| Acceleration 0 – 62 mph | 8.9 sec |
| Acceleration 0 – 60 mph (Calculated by Auto-Data.net) | 8.5 sec |
| Maximum speed | 190 km/h 118.06 mph |
| Emission standard | EURO 5 |
| Weight-to-power ratio | 9 kg/Hp, 111.6 Hp/tonne |
| Weight-to-torque ratio | 6.7 kg/Nm, 148.8 Nm/tonne |
| Engine specs | |
| Power | 120 Hp @ 6000 rpm. |
| Power per litre | 75.1 Hp/l |
| Torque | 160 Nm @ 4250 rpm. 118.01 lb.-ft. @ 4250 rpm. |
| Engine layout | Front, Transverse |
| Engine Model/Code | 5FS EP6C |
| Engine displacement | 1598 cm3 97.52 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 77 mm 3.03 in. |
| Piston Stroke | 85.8 mm 3.38 in. |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 4.3 l 4.54 US qt | 3.78 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 5.7 l 6.02 US qt | 5.02 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1075 kg 2369.97 lbs. |
| Max. weight | 1554 kg 3425.98 lbs. |
| Max load | 479 kg 1056.01 lbs. |
| Trunk (boot) space – minimum | 285 l 10.06 cu. ft. |
| Trunk (boot) space – maximum | 980 l 34.61 cu. ft. |
| Max. roof load | 70 kg 154.32 lbs. |
| Permitted trailer load with brakes (12%) | 900 kg 1984.16 lbs. |
| Permitted trailer load without brakes | 570 kg 1256.63 lbs. |
| Permitted towbar download | 46 kg 101.41 lbs. |
| Dimensions | |
| Length | 3948 mm 155.43 in. |
| Width | 1715 mm 67.52 in. |
| Height | 1458-1483 mm 57.4 – 58.39 in. |
| Wheelbase | 2464 mm 97.01 in. |
| Front track | 1465-1468 mm 57.68 – 57.8 in. |
| Rear (Back) track | 1467-1471 mm 57.76 – 57.91 in. |
| Front overhang | 824 mm 32.44 in. |
| Rear overhang | 660 mm 25.98 in. |
| Minimum turning circle (turning diameter) | 10.2 m 33.46 ft. |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent coil spring, Elastic beam |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/55 R16 |
| Wheel rims size | 16 |
| What is the body type, Citroen DS 3 (Phase I)? | Hatchback, 3 Doors, 5 Seats |
|---|---|
| What is the fuel economy, Citroen DS 3 (Phase I) 1.6 VTi Airdream (120 Hp)? | 5.9-6.0 l/100 km 39.9 – 39.2 US mpg 47.9 – 47.1 UK mpg 16.9 – 16.7 km/l |
| How ECO is the car, Citroen DS3 1.6 VTi Airdream (120 Hp)? | 136-138 g/km CO2 EURO 5 |
| How fast is the car, 2009 DS 3 (Phase I) 1.6 VTi Airdream (120 Hp)? | 190 km/h | 118.06 mph 0-100 km/h: 8.9 sec 0-60 mph: 8.5 sec |
| How much power, Citroen DS3 Hatchback 2009 1.6 VTi Airdream (120 Hp)? | 120 Hp, 160 Nm 118.01 lb.-ft. |
| What is the engine size, Citroen DS3 Hatchback 2009 1.6 VTi Airdream (120 Hp)? | 1.6 l 1598 cm3 97.52 cu. in. |
| How many cylinders, 2009 Citroen 1.6 VTi Airdream (120 Hp)? | 4, Inline |
| What is the drivetrain, Citroen DS 3 (Phase I) Hatchback 2009 1.6 VTi Airdream (120 Hp)? | Front wheel drive. Internal Combustion engine. The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| How long is this vehicle, 2009 Citroen DS3 Hatchback? | 3948 mm 155.43 in. |
| How wide is the vehicle, 2009 Citroen DS3 Hatchback? | 1715 mm 67.52 in. |
| What is the curb weight, 2009 Citroen DS 3 (Phase I) 1.6 VTi Airdream (120 Hp)? | 1075 kg 2369.97 lbs. |
| What is the gross weight, 2009 Citroen DS 3 (Phase I) 1.6 VTi Airdream (120 Hp)? | 1554 kg 3425.98 lbs. |
| How much trunk (boot) space, 2009 Citroen DS3 Hatchback? | 285 – 980 l 10.06 – 34.61 cu. ft. |
| How many gears, What type is the gearbox, 2009 Citroen DS 3 (Phase I) 1.6 VTi Airdream (120 Hp)? | 5, manual transmission |
