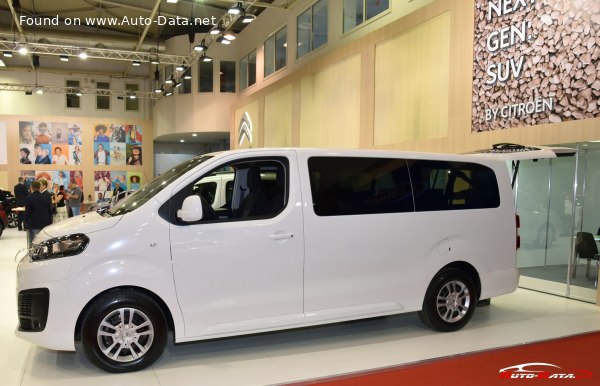

The Citroen SpaceTourer XL 2.0 BlueHDi (145 hp) Automatic is a large minivan produced by the French manufacturer Citroen between June 2020 and December 2021. Part of the second generation SpaceTourer range (introduced in 2016), the XL variant represents the longest wheelbase option, offering seating for up to nine passengers. This particular engine and transmission combination – the 2.0 BlueHDi paired with an eight-speed automatic – was positioned as a mid-range offering, balancing fuel efficiency with adequate performance for family transport and light commercial applications. The SpaceTourer XL competes with vehicles like the Volkswagen Multivan, Mercedes-Benz V-Class, and Ford Tourneo Custom, offering a more affordable alternative with a focus on practicality and versatility.
Technical Specifications
| Brand | Citroen |
| Model | SpaceTourer |
| Generation | SpaceTourer XL |
| Type (Engine) | 2.0 BlueHDi (145 Hp) Automatic |
| Start of production | June, 2020 |
| End of production | December, 2021 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 8-9 |
| Doors | 5 |
| Fuel consumption (urban) | 5.5 l/100 km (42.8 US mpg, 51.4 UK mpg, 18.2 km/l) |
| Fuel consumption (extra urban) | 4.8 l/100 km (49 US mpg, 58.9 UK mpg, 20.8 km/l) |
| Fuel consumption (combined) | 5.1 l/100 km (46.1 US mpg, 55.4 UK mpg, 19.6 km/l) |
| CO2 emissions | 140 g/km |
| Fuel Type | Diesel |
| Maximum speed | 185 km/h (114.95 mph) |
| Emission standard | Euro 6d-ISC FCM |
| Weight-to-power ratio | 12.1 kg/Hp, 83 Hp/tonne |
| Weight-to-torque ratio | 5.1 kg/Nm, 194.5 Nm/tonne |
| Power | 145 Hp @ 3700 rpm |
| Power per litre | 72.6 Hp/l |
| Torque | 340 Nm @ 2000 rpm (250.77 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | DW10FDDU |
| Engine displacement | 1997 cm3 (121.86 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Engine oil capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 1748-2171 kg (3853.68 – 4786.24 lbs.) |
| Max. weight | 2790 kg (6150.9 lbs.) |
| Max load | 619-1042 kg (1364.66 – 2297.22 lbs.) |
| Fuel tank capacity | 69 l (18.23 US gal | 15.18 UK gal) |
| AdBlue tank | 20 l (5.28 US gal | 4.4 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load (braked) | 1900 kg (4188.78 lbs.) |
| Permitted trailer load (unbraked) | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 84 kg (185.19 lbs.) |
| Length | 5309 mm (209.02 in.) |
| Width | 1920 mm (75.59 in.) |
| Width (including mirrors) | 2204 mm (86.77 in.) |
| Height | 1950 mm (76.77 in.) |
| Wheelbase | 3275 mm (128.94 in.) |
| Front track | 1630 mm (64.17 in.) |
| Rear track | 1618 mm (63.7 in.) |
| Front overhang | 881 mm (34.69 in.) |
| Rear overhang | 1153 mm (45.39 in.) |
| Drivetrain | Front wheel drive |
| Number of gears | 8 |
| Gearbox type | Automatic transmission |
| Front suspension | Independent type McPherson |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Steering type | Steering rack and pinion |
| Power steering | Electric |
| Tires size | 225/55 R17 |
INTRODUCTION
The Citroen SpaceTourer XL 2.0 BlueHDi Automatic, launched in 2020, builds upon the success of the initial SpaceTourer generation. Designed as a modular and adaptable vehicle, the SpaceTourer XL caters to a diverse range of needs, from large families to shuttle services and even light commercial applications. The “XL” designation signifies the extended wheelbase, providing increased interior space and passenger capacity compared to the standard-length SpaceTourer. This 145 hp diesel variant, coupled with the eight-speed automatic transmission, aimed to provide a balance between fuel economy, drivability, and affordability within the SpaceTourer lineup.
Powertrain & Engine Architecture
At the heart of the SpaceTourer XL 2.0 BlueHDi Automatic lies the DW10FDDU engine, a 2.0-liter inline-four cylinder diesel engine. This engine is part of Citroen’s BlueHDi range, incorporating advanced technologies to reduce emissions and improve fuel efficiency. The engine utilizes a common rail direct injection system, delivering fuel directly into the combustion chamber at extremely high pressure. A turbocharger with an intercooler further enhances performance by forcing more air into the engine. The engine produces 145 horsepower at 3700 rpm and 340 Nm (250.77 lb-ft) of torque at 2000 rpm. The eight-speed automatic transmission, sourced from Aisin, provides smooth and efficient gear changes. This transmission is known for its responsiveness and contributes to the vehicle’s overall refinement. The engine also features a Start & Stop system and a particulate filter to minimize environmental impact.
Driving Characteristics
The 2.0 BlueHDi 145 hp Automatic powertrain delivers adequate performance for the SpaceTourer XL, though it’s not designed for outright speed. Acceleration is linear and predictable, with the eight-speed automatic transmission effectively managing the engine’s torque output. While not as brisk as the higher-powered 180 hp version, the 145 hp variant provides sufficient power for highway cruising and overtaking maneuvers. The automatic transmission’s gear ratios are well-suited to the vehicle’s weight and intended use, prioritizing fuel efficiency over sporty acceleration. In real-world driving, the SpaceTourer XL feels composed and stable, offering a comfortable ride even when fully loaded. Compared to manual transmission versions, the automatic offers greater convenience, particularly in urban environments.
Equipment & Trim Levels
The SpaceTourer XL 2.0 BlueHDi Automatic typically came equipped with a respectable level of standard features. These included air conditioning, a touchscreen infotainment system with Bluetooth connectivity, cruise control, and a rearview camera. Higher trim levels offered additional features such as navigation, leather upholstery, panoramic sunroof, and advanced driver-assistance systems like lane departure warning and automatic emergency braking. Interior upholstery was typically cloth in the base models, with leather options available on higher trims. The dashboard layout is functional and ergonomic, prioritizing practicality and ease of use. Optional extras included parking sensors, a head-up display, and a premium sound system.
Chassis & Braking
The SpaceTourer XL utilizes a front-wheel-drive layout with an independent McPherson strut suspension at the front and a semi-independent twist beam suspension at the rear. This suspension setup provides a comfortable ride quality, absorbing bumps and imperfections in the road surface effectively. The braking system consists of ventilated discs at the front and solid discs at the rear, providing adequate stopping power. Anti-lock braking system (ABS) is standard, enhancing safety and stability during emergency braking situations. The steering is electrically assisted, offering light and precise control.
Market Reception & Comparison
The Citroen SpaceTourer XL 2.0 BlueHDi Automatic was generally well-received by critics for its practicality, versatility, and fuel efficiency. The 145 hp engine was considered adequate for most users, although some reviewers noted that it could feel strained when the vehicle is fully loaded. Compared to the more powerful 180 hp version, the 145 hp variant offered a lower price point and slightly better fuel economy. The SpaceTourer XL’s spacious interior and modular seating arrangement were also praised. In terms of reliability, the BlueHDi engine has proven to be generally robust, although diesel particulate filter (DPF) issues can occur with frequent short journeys.
Legacy
The Citroen SpaceTourer XL 2.0 BlueHDi Automatic represents a practical and versatile option in the large minivan segment. While production ended in 2021, these vehicles continue to appear on the used car market. The 2.0 BlueHDi engine, when properly maintained, is known for its longevity and fuel efficiency. The eight-speed automatic transmission also contributes to the vehicle’s overall reliability. As a used vehicle, the SpaceTourer XL offers a compelling combination of space, comfort, and affordability, making it a popular choice for families and businesses alike.
