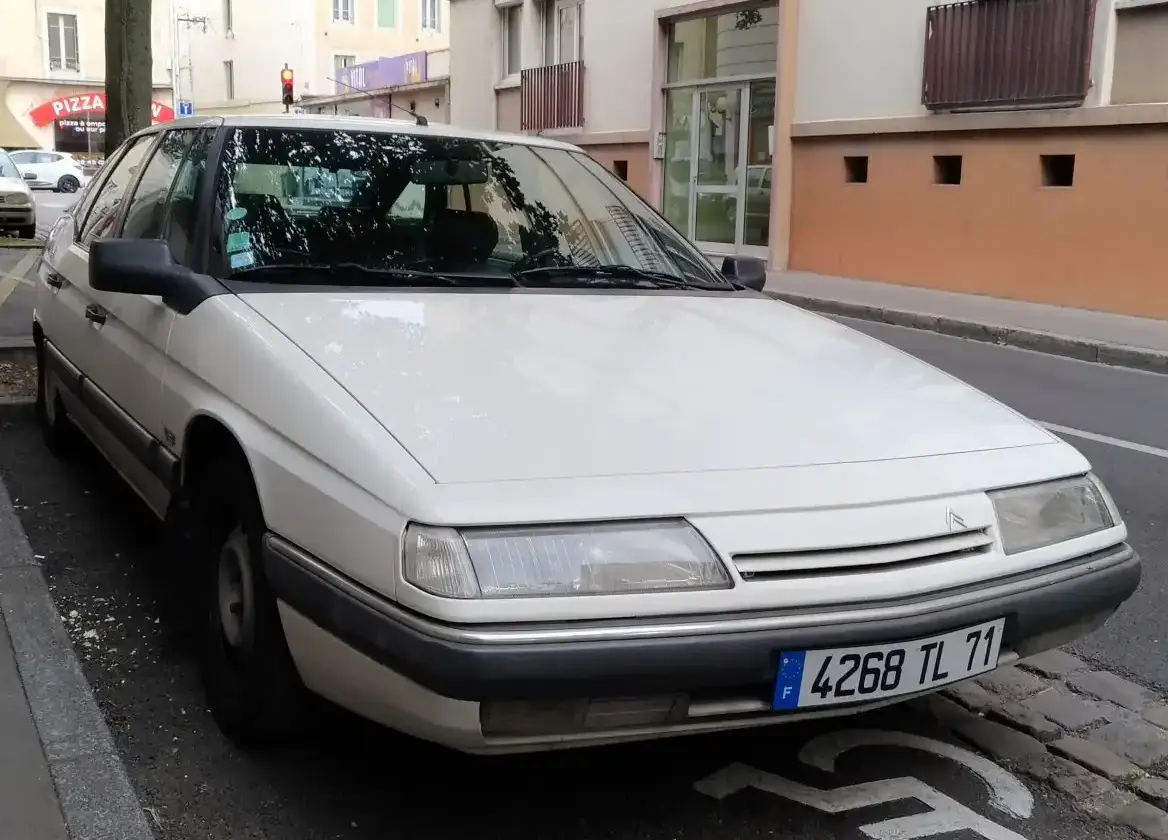

The Citroën XM (Y4) 2.1 Turbo D12, producing 109 horsepower, was a variant of the large, executive hatchback produced between 1994 and June 2000. Positioned as a mid-range offering within the XM lineup, it aimed to provide a balance between performance and fuel economy for buyers seeking a comfortable, spacious, and technologically advanced vehicle. The XM, launched in 1989, was Citroën’s flagship, intended to replace the aging CX, and represented a significant leap forward in design and engineering for the French automaker. The Y4 series, introduced in 1994, brought styling revisions and mechanical updates, including this 2.1-liter turbocharged diesel engine option.
Technical Specifications
| Brand | Citroen |
| Model | XM |
| Generation | XM (Y4) |
| Type (Engine) | 2.1 Turbo D12 (109 Hp) |
| Start of production | 1994 |
| End of production | June, 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 9.6 l/100 km (24.5 US mpg, 29.4 UK mpg, 10.4 km/l) |
| Fuel consumption (extra urban) | 5.6 l/100 km (42 US mpg, 50.4 UK mpg, 17.9 km/l) |
| Fuel consumption (combined) | 7.1 l/100 km (33.1 US mpg, 39.8 UK mpg, 14.1 km/l) |
| CO2 emissions | 185 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 12.9 sec |
| Acceleration 0 – 62 mph | 12.9 sec |
| Acceleration 0 – 60 mph | 12.3 sec |
| Maximum speed | 192 km/h (119.3 mph) |
| Emission standard | Euro 2 |
| Weight-to-power ratio | 13.2 kg/Hp, 75.6 Hp/tonne |
| Weight-to-torque ratio | 5.8 kg/Nm, 173.4 Nm/tonne |
| Power | 109 Hp @ 4300 rpm |
| Power per litre | 52.2 Hp/l |
| Torque | 250 Nm @ 2000 rpm (184.39 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | P8C XUD11BTE |
| Engine displacement | 2088 cm3 (127.42 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 85 mm (3.35 in.) |
| Piston Stroke | 92 mm (3.62 in.) |
| Compression ratio | 21.5:1 |
| Number of valves per cylinder | 3 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine oil capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Coolant | 10 l (10.57 US qt | 8.8 UK qt) |
| Kerb Weight | 1442 kg (3179.07 lbs.) |
| Max. weight | 2045 kg (4508.45 lbs.) |
| Max load | 603 kg (1329.39 lbs.) |
| Trunk (boot) space – minimum | 455 l (16.07 cu. ft.) |
| Trunk (boot) space – maximum | 1460 l (51.56 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Max. roof load | 80 kg (176.37 lbs.) |
| Permitted trailer load with brakes (12%) | 1500 kg (3306.93 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 80 kg (176.37 lbs.) |
| Length | 4708 mm (185.35 in.) |
| Width | 1794 mm (70.63 in.) |
| Height | 1396 mm (54.96 in.) |
| Wheelbase | 2850 mm (112.2 in.) |
| Front track | 1520 mm (59.84 in.) |
| Rear (Back) track | 1447 mm (56.97 in.) |
| Front overhang | 1068 mm (42.05 in.) |
| Rear overhang | 790 mm (31.1 in.) |
| Ride height (ground clearance) | 141 mm (5.55 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson, Wishbone |
| Rear suspension | Hydro-pneumatic element, Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
Powertrain & Engine Architecture
The heart of the XM 2.1 Turbo D12 is the P8C XUD11BTE engine, a 2.1-liter inline-four cylinder diesel. This engine utilizes precombustion chamber injection, a system common in European diesels of the era, known for its relatively quiet operation and good combustion efficiency. A turbocharger with an intercooler is employed to boost power output, increasing the engine’s capacity to deliver 109 horsepower at 4300 rpm and 250 Nm (184 lb-ft) of torque at 2000 rpm. The engine features an overhead camshaft (OHC) valvetrain with three valves per cylinder. The engine is transversely mounted in the front of the vehicle. The transmission is a five-speed manual gearbox, chosen for its durability and efficiency. While an automatic transmission was available on other XM variants, it was not offered with the 2.1 Turbo D12 engine.
Driving Characteristics
The 2.1 Turbo D12-equipped XM offered a comfortable and refined driving experience, prioritizing long-distance cruising over outright performance. The 109 horsepower and 250 Nm of torque provided adequate acceleration, with a 0-60 mph time of around 12.3 seconds and a top speed of 119 mph. However, it was noticeably slower than the petrol-powered V6 versions. The five-speed manual transmission allowed drivers to keep the engine in its optimal torque band, making overtaking maneuvers manageable. The gear ratios were geared towards fuel efficiency, rather than rapid acceleration. The XM’s signature hydropneumatic suspension provided an exceptionally smooth ride, absorbing bumps and imperfections in the road with ease. Steering was light and precise, contributing to a relaxed driving experience.
Equipment & Trim Levels
The 2.1 Turbo D12 XM typically came with a respectable level of standard equipment. This included central locking, electric front windows, power steering, and an adjustable steering column. Interior upholstery was typically cloth, with options for upgraded materials. Air conditioning was often included, but not always standard. Optional extras included a sunroof, leather upholstery, and a more advanced audio system. The dashboard layout was functional and ergonomically designed, with clear instrumentation. The XM was known for its innovative features, such as the self-leveling hydropneumatic suspension and the ability to adjust ride height.
Chassis & Braking
The XM’s chassis featured independent McPherson strut suspension at the front and a sophisticated hydropneumatic suspension system at the rear. This rear suspension, a Citroën hallmark, provided exceptional ride comfort and allowed for automatic ride height adjustment. The front brakes were ventilated discs, while the rear brakes were solid discs. Anti-lock braking system (ABS) was standard, enhancing safety. The XM’s steering utilized a rack and pinion system with hydraulic power assistance, providing light and precise steering feel. The car rode on 195/65 R15 tires.
Market Reception & Comparison
The Citroën XM 2.1 Turbo D12 was generally well-received by critics for its comfortable ride, spacious interior, and fuel efficiency. However, some reviewers noted its relatively modest performance compared to petrol-powered alternatives. Compared to the 2.0-liter petrol engine, the diesel offered significantly better fuel economy but less power. Against the V6 models, the 2.1 Turbo D12 was a more affordable and economical option, appealing to buyers prioritizing practicality over performance. Reliability was generally good, although the complex hydropneumatic suspension system could require occasional maintenance.
Legacy
The Citroën XM, while not a massive sales success, remains a fondly remembered car among enthusiasts. The 2.1 Turbo D12 variant, in particular, is appreciated for its blend of comfort, fuel economy, and durability. The P8C XUD11BTE engine is known for its longevity, and well-maintained examples can still provide reliable service today. In the used car market, the XM 2.1 Turbo D12 represents a relatively affordable entry point into Citroën’s innovative and technologically advanced flagship of the 1990s. However, potential buyers should be aware of the potential maintenance costs associated with the hydropneumatic suspension system.
