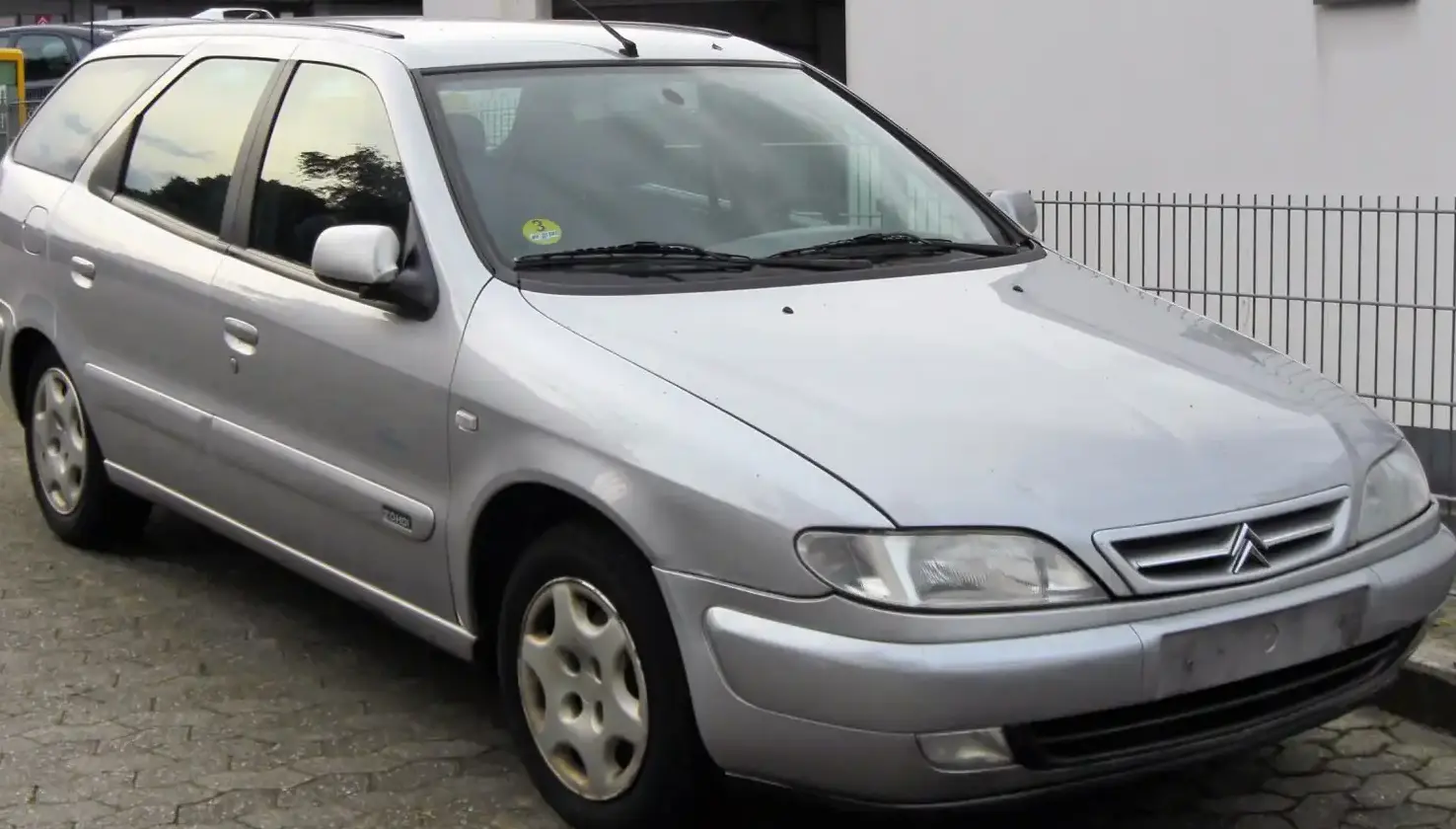

The Citroën Xsara Break 1.9 SD, produced between 1998 and 1999, represents a practical and economical offering within the first phase (N2) of the Xsara Break (estate) model range. Positioned as an entry-level diesel variant, it catered to buyers prioritizing fuel efficiency and load-carrying capacity over outright performance. The Xsara Break itself was a significant model for Citroën, offering a versatile alternative to traditional hatchbacks and saloons, and competing directly with vehicles like the Ford Focus Estate and Renault Mégane Estate in the European market. This particular 1.9 SD trim aimed for a balance between affordability and functionality, making it a popular choice for families and commercial users.
Technical Specifications
| Brand | Citroen |
| Model | Xsara |
| Generation | Xsara Break (N2, Phase I) |
| Type (Engine) | 1.9 SD (75 Hp) |
| Start of production | 1998 |
| End of production | 1999 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.6 l/100 km (27.4 US mpg, 32.8 UK mpg, 11.6 km/l) |
| Fuel consumption (extra urban) | 5.3 l/100 km (44.4 US mpg, 53.3 UK mpg, 18.9 km/l) |
| Fuel consumption (combined) | 6.5 l/100 km (36.2 US mpg, 43.5 UK mpg, 15.4 km/l) |
| CO2 emissions | 174 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 16.8 sec |
| Acceleration 0 – 62 mph | 16.8 sec |
| Acceleration 0 – 60 mph | 16 sec |
| Maximum speed | 168 km/h (104.39 mph) |
| Weight-to-power ratio | 14.9 kg/Hp, 67 Hp/tonne |
| Weight-to-torque ratio | 8.3 kg/Nm, 120.6 Nm/tonne |
| Power | 75 Hp @ 4600 rpm |
| Power per litre | 39.4 Hp/l |
| Torque | 135 Nm @ 2250 rpm (99.57 lb.-ft. @ 2250 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | DHW XUD9BSD |
| Engine displacement | 1905 cm3 (116.25 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Naturally aspirated |
| Engine oil capacity | 4.25 l (4.49 US qt | 3.74 UK qt) |
| Coolant capacity | 8.5 l (8.98 US qt | 7.48 UK qt) |
| Kerb Weight | 1119 kg (2466.97 lbs.) |
| Max. weight | 1710 kg (3769.9 lbs.) |
| Max load | 591 kg (1302.93 lbs.) |
| Trunk (boot) space – minimum | 517 l (18.26 cu. ft.) |
| Trunk (boot) space – maximum | 1512 l (53.4 cu. ft.) |
| Fuel tank capacity | 54 l (14.27 US gal | 11.88 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 1100 kg (2425.08 lbs.) |
| Permitted trailer load without brakes | 630 kg (1388.91 lbs.) |
| Length | 4354 mm (171.42 in.) |
| Width | 1698 mm (66.85 in.) |
| Width including mirrors | 1994 mm (78.5 in.) |
| Height | 1426 mm (56.14 in.) |
| Wheelbase | 2540 mm (100 in.) |
| Front track | 1423 mm (56.02 in.) |
| Rear track | 1430 mm (56.3 in.) |
| Front overhang | 868 mm (34.17 in.) |
| Rear overhang | 946 mm (37.24 in.) |
| Minimum turning circle | 11.5 m (37.73 ft.) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Torsion |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 185/65 R14 |
Powertrain & Engine Architecture
The heart of the Xsara Break 1.9 SD is the DHW XUD9BSD engine, a 1.9-liter inline-four diesel. This engine is a member of the well-established XUD family of diesel engines, known for their durability and relatively simple design. The ‘DHW’ prefix denotes a specific variant tailored for the Citroën/Peugeot group. The engine utilizes a precombustion chamber injection system, a common technology in diesel engines of that era. This system involves injecting fuel into a small precombustion chamber within the cylinder head, where it ignites and then ignites the main charge in the cylinder. This design aids in smoother combustion and reduced engine noise compared to direct injection systems of the time. The engine produces 75 horsepower at 4600 rpm and 135 Nm (99.57 lb-ft) of torque at 2250 rpm. The engine is transversely mounted, driving the front wheels. The manual transmission featured five forward gears, optimized for fuel economy rather than sporty acceleration.
Driving Characteristics
The 1.9 SD variant of the Xsara Break offered a decidedly utilitarian driving experience. Acceleration was modest, taking approximately 16.8 seconds to reach 62 mph. The focus was on providing adequate power for everyday driving and hauling loads. The five-speed manual transmission helped to keep the engine within its optimal torque band, making it reasonably tractable even when fully loaded. Gear ratios were spaced to prioritize fuel efficiency, meaning the engine could feel strained at higher speeds. Compared to the more powerful petrol variants, such as the 1.8 16V, the 1.9 SD lacked responsiveness, but it offered significantly better fuel economy. The manual transmission provided more driver engagement than the optional automatic, which further reduced performance.
Equipment & Trim Levels
The 1.9 SD trim level typically represented the base specification for the Xsara Break. Standard equipment included central locking, power steering, and a basic audio system. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat spartan, design. Optional extras included air conditioning, electric windows, and an upgraded audio system. The overall interior ambiance was focused on practicality and durability rather than luxury. The exterior trim was also relatively basic, with steel wheels and black plastic bumpers being common features.
Chassis & Braking
The Xsara Break’s chassis featured an independent McPherson strut suspension at the front and a torsion beam suspension at the rear. This setup provided a reasonable balance between ride comfort and handling. The front brakes were ventilated discs, offering adequate stopping power, while the rear brakes were drums, a cost-saving measure common in entry-level models. ABS (Anti-lock Braking System) was included as standard, enhancing safety. The suspension was tuned for comfort, prioritizing a smooth ride over sporty handling. Stabilizer bars were fitted to both axles to reduce body roll during cornering.
Market Reception & Comparison
The Citroën Xsara Break 1.9 SD was generally well-received by critics as a practical and economical estate car. Its fuel efficiency was a major selling point, and its spacious interior and large boot made it a popular choice for families. However, its modest performance and somewhat basic interior were often criticized. Compared to the petrol-powered Xsara Break variants, the 1.9 SD offered significantly better fuel economy but lacked the same level of refinement and performance. Against competitors like the Ford Focus Estate and Renault Mégane Estate, the Xsara Break 1.9 SD offered a competitive package in terms of price, fuel economy, and practicality.
Legacy
The DHW XUD9BSD engine, found in the Xsara Break 1.9 SD, is known for its robustness and longevity. With proper maintenance, these engines can reliably exceed 200,000 miles. Today, the Xsara Break 1.9 SD is a relatively affordable used car, appealing to buyers seeking a practical and economical estate. Parts availability is generally good, and the simple engine design makes it relatively easy to maintain. While not a particularly exciting vehicle, the Xsara Break 1.9 SD remains a testament to Citroën’s commitment to providing functional and reliable transportation.
