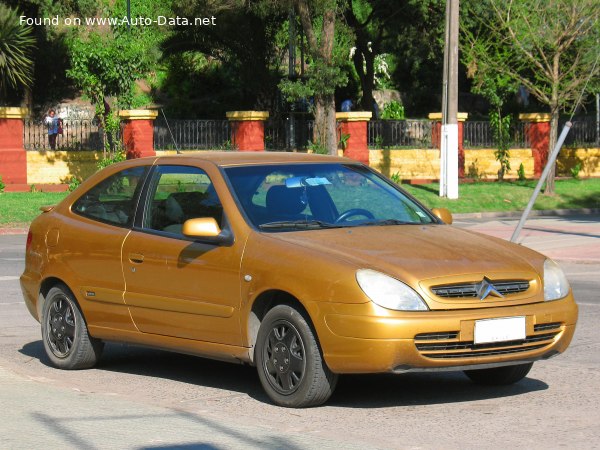

2000-2003 Citroen Xsara Coupe (N0 Phase II) 1.4 i (75 Hp)

The Citroën Xsara Coupé 1.4i, produced between 2000 and 2003, represented the entry point into the stylish Coupé range of the second-generation Xsara (N0). Positioned as an affordable and practical option, this variant aimed to attract buyers seeking a sporty aesthetic without the higher price tag of the more powerful engine options. It was a key component of Citroën’s strategy to offer a diverse lineup within the compact segment, competing with rivals like the Peugeot 307 Coupé and Renault Mégane Coupé. The 1.4i model was particularly significant in markets where fuel economy and lower running costs were prioritized.

Technical Specifications

Brand Citroën
Model Xsara
Generation Xsara Coupé (N0, Phase II)
Type (Engine) 1.4 i (75 Hp)
Start of production 2000
End of production 2003
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 5
Doors 3
Fuel consumption (urban) 9.2 l/100 km (25.6 US mpg, 30.7 UK mpg, 10.9 km/l)
Fuel consumption (extra urban) 5.4 l/100 km (43.6 US mpg, 52.3 UK mpg, 18.5 km/l)
Fuel consumption (combined) 6.7 l/100 km (35.1 US mpg, 42.2 UK mpg, 14.9 km/l)
CO2 emissions 159 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.8 sec
Acceleration 0 – 62 mph 14.8 sec
Acceleration 0 – 60 mph 14.1 sec
Maximum speed 172 km/h (106.88 mph)
Emission standard Euro 3 D4
Weight-to-power ratio 14.8 kg/Hp, 67.6 Hp/tonne
Weight-to-torque ratio 9.2 kg/Nm, 108.2 Nm/tonne
Power 75 Hp @ 5500 rpm
Power per litre 55.1 Hp/l
Torque 120 Nm @ 3400 rpm (88.51 lb.-ft. @ 3400 rpm)
Engine layout Front, Transverse
Engine Model/Code TU3JP
Engine displacement 1360 cm3 (82.99 cu. in.)
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm (2.95 in.)
Piston Stroke 77 mm (3.03 in.)
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3 l (3.17 US qt | 2.64 UK qt)
Coolant 6.5 l (6.87 US qt | 5.72 UK qt)
Kerb Weight 1109 kg (2444.93 lbs.)
Max. weight 1649 kg (3635.42 lbs.)
Max load 540 kg (1190.5 lbs.)
Trunk (boot) space – minimum 408 l (14.41 cu. ft.)
Trunk (boot) space – maximum 1190 l (42.02 cu. ft.)
Fuel tank capacity 54 l (14.27 US gal | 11.88 UK gal)
Max. roof load 75 kg (165.35 lbs.)
Permitted trailer load with brakes (12%) 1100 kg (2425.08 lbs.)
Permitted trailer load without brakes 545 kg (1201.52 lbs.)
Permitted towbar download 70 kg (154.32 lbs.)
Length 4188 mm (164.88 in.)
Width 1705 mm (67.13 in.)
Width including mirrors 1976 mm (77.8 in.)
Height 1405 mm (55.31 in.)
Wheelbase 2540 mm (100 in.)
Front track 1433 mm (56.42 in.)
Rear (Back) track 1442 mm (56.77 in.)
Front overhang 880 mm (34.65 in.)
Rear overhang 768 mm (30.24 in.)
Minimum turning circle 11.5 m (37.73 ft.)
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/55 R15
Wheel rims size 6J x 15

INTRODUCTION

The Citroën Xsara Coupé 1.4i (N0, Phase II), produced from 2000 to 2003, was a three-door coupé based on the second-generation Xsara platform. It served as the entry-level variant within the Coupé range, offering a more affordable and fuel-efficient alternative to the higher-performance 1.6 and 2.0-litre models. The Phase II designation refers to a mid-life refresh that included minor styling updates and improvements to interior trim. This model aimed to capture a segment of the market seeking a stylish and practical vehicle with lower running costs.

Powertrain & Engine Architecture

The heart of the Xsara Coupé 1.4i is the TU3JP engine, a 1360cc inline-four cylinder petrol engine. This engine, a staple in many PSA Group vehicles of the era, is known for its simplicity and reliability. It features a single overhead camshaft (SOHC) valvetrain with two valves per cylinder. Fuel delivery is managed by a multi-port fuel injection system, providing adequate, though not exceptional, performance. The engine produces 75 horsepower at 5500 rpm and 120 Nm of torque at 3400 rpm. The engine’s relatively low output is a characteristic of its design, prioritizing fuel efficiency over outright power. The engine is transversely mounted at the front of the vehicle, driving the front wheels. The standard transmission for this variant was a five-speed manual gearbox, although a four-speed automatic transmission was also available, albeit less common. The automatic transmission, while offering convenience, resulted in slightly reduced fuel economy and acceleration.

Driving Characteristics

The driving experience in the Xsara Coupé 1.4i is best described as comfortable and undemanding. With 75 horsepower, acceleration is not brisk; 0-60 mph takes around 14.1 seconds. The engine feels strained when pushed hard, particularly when overtaking or climbing hills. The five-speed manual gearbox allows drivers to make the most of the available power, while the optional automatic transmission provides smoother, but slower, progress. The gear ratios are tuned for fuel efficiency rather than performance. The suspension, featuring McPherson struts at the front and a torsion beam at the rear, provides a reasonably comfortable ride, absorbing most road imperfections effectively. However, the handling is not particularly sporty, with noticeable body roll in corners. Compared to the 1.6 or 2.0-litre models, the 1.4i feels noticeably slower and less engaging to drive.

Equipment & Trim Levels

The Xsara Coupé 1.4i typically came with a modest level of standard equipment. Basic features included central locking, power steering, and an adjustable steering column. Interior upholstery was typically cloth, with a relatively simple dashboard layout. Air conditioning was often an optional extra, as were electric windows and alloy wheels. Higher trim levels, such as the LX or SX, added features like upgraded upholstery, a CD player, and additional safety equipment. The overall interior ambiance was functional and practical, rather than luxurious.

Chassis & Braking

The Xsara Coupé 1.4i utilizes a front-wheel-drive chassis with independent McPherson strut suspension at the front and a torsion beam suspension at the rear. This setup provides a good balance between ride comfort and handling. The braking system consists of ventilated discs at the front and drum brakes at the rear. Anti-lock Braking System (ABS) was standard, enhancing safety during emergency braking situations. The relatively light weight of the 1.4i model (approximately 1109 kg) helps to compensate for its lower power output, contributing to acceptable stopping distances.

Market Reception & Comparison

The Citroën Xsara Coupé 1.4i was generally well-received as an affordable and stylish entry-level coupé. Critics praised its fuel efficiency and practicality, but noted its lack of outright performance. Compared to the 1.6 and 2.0-litre models, the 1.4i offered significantly lower running costs but at the expense of driving enjoyment. The 1.6-litre version, while more expensive, provided a noticeable improvement in performance and was often considered a better all-around choice. The 1.4i appealed to buyers who prioritized economy and practicality over sporty driving dynamics.

Legacy

The Citroën Xsara Coupé 1.4i, while not the most powerful or exciting variant in the range, has proven to be a reliable and durable vehicle. The TU3JP engine is known for its longevity, and many examples are still on the road today. In the used car market, the 1.4i represents an affordable entry point into Citroën ownership. However, potential buyers should be aware of the engine’s limitations and the potential for age-related issues, such as corrosion and wear and tear on suspension components. Overall, the Xsara Coupé 1.4i remains a popular choice for those seeking a stylish and economical coupé.
