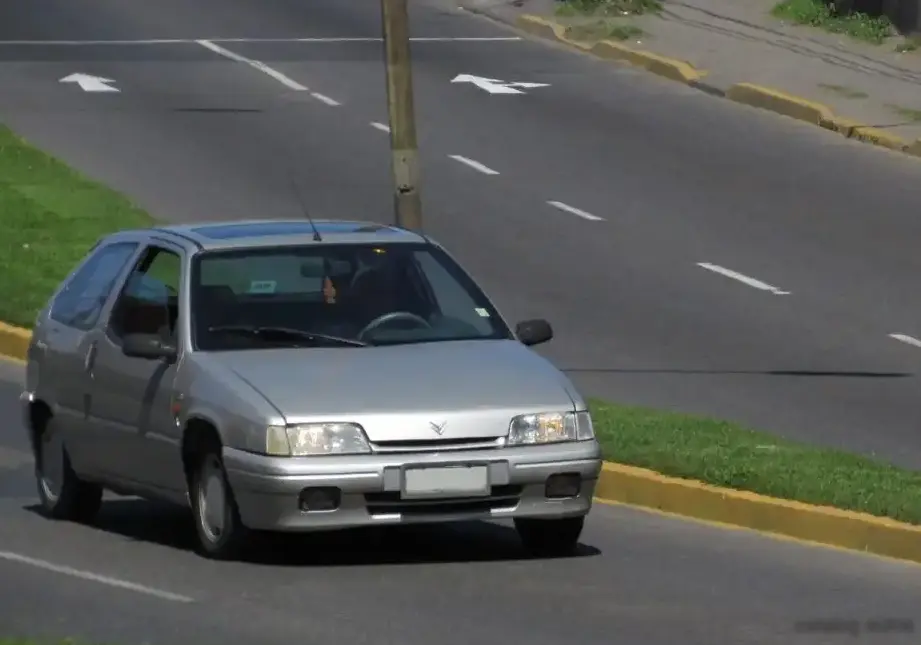

The Citroën ZX 1.9 TD, produced between 1992 and 1994, represented a significant offering in the compact hatchback segment, particularly within the European market. This 3-door variant, part of the N2 Phase I generation, was positioned as an economical and practical choice, appealing to buyers seeking fuel efficiency and a capable diesel engine. It occupied a middle ground within the ZX lineup, offering a balance between the base models and the more performance-oriented petrol variants. The ZX itself was Citroën’s replacement for the popular BX, aiming to provide a more modern and refined driving experience while retaining the brand’s commitment to innovative technology.
Technical Specifications
| Brand | Citroen |
| Model | ZX |
| Generation | ZX (N2, Phase I) 3-door |
| Type (Engine) | 1.9 TD (90 Hp) |
| Start of production | 1992 |
| End of production | 1994 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel Type | Diesel |
| Weight-to-power ratio | 12.1 kg/Hp |
| Power | 90 Hp @ 4000 rpm |
| Power per litre | 47.2 Hp/l |
| Torque | 201 Nm @ 2250 rpm (148.25 lb.-ft. @ 2250 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | DHY XUD9TE/Y |
| Engine displacement | 1905 cm3 (116.25 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 21.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger |
| Valvetrain | OHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Coolant | 9 l (9.51 US qt | 7.92 UK qt) |
| Kerb Weight | 1087 kg (2396.42 lbs.) |
| Max. weight | 1580 kg (3483.3 lbs.) |
| Max load | 493 kg (1086.88 lbs.) |
| Trunk (boot) space – minimum | 324 l (11.44 cu. ft.) |
| Trunk (boot) space – maximum | 1146 l (40.47 cu. ft.) |
| Fuel tank capacity | 56 l (14.79 US gal | 12.32 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (12%) | 1100 kg (2425.08 lbs.) |
| Permitted trailer load without brakes | 540 kg (1190.5 lbs.) |
| Permitted towbar download | 70 kg (154.32 lbs.) |
| Length | 4071 mm (160.28 in.) |
| Width | 1702 mm (67.01 in.) |
| Height | 1405 mm (55.31 in.) |
| Wheelbase | 2540 mm (100 in.) |
| Front track | 1422 mm (55.98 in.) |
| Rear (Back) track | 1415 mm (55.71 in.) |
| Front overhang | 849 mm (33.43 in.) |
| Rear overhang | 682 mm (26.85 in.) |
| Ride height (ground clearance) | 126 mm (4.96 in.) |
| Minimum turning circle (turning diameter) | 11.3 m (37.07 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson, Wishbone |
| Rear suspension | Hydro-pneumatic element, Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
Powertrain & Engine Architecture
The heart of the ZX 1.9 TD was the XUD9TE/Y engine, a 1.9-liter inline-four cylinder diesel. This engine, designated DHY, was a mainstay of Citroën and Peugeot vehicles throughout the 1990s. It featured precombustion chamber injection, a system common in European diesels of the era, known for its relatively quiet operation and good combustion efficiency. The engine was turbocharged, boosting power output to 90 horsepower at 4000 rpm and 201 Nm (148 lb-ft) of torque at 2250 rpm. The overhead camshaft (OHC) valvetrain operated two valves per cylinder. The engine’s robust construction and relatively simple design contributed to its longevity and ease of maintenance. The 5-speed manual transmission was the standard offering, providing a good balance between fuel economy and drivability. While an automatic transmission was available on some ZX models, it was not typically paired with the 1.9 TD engine.
Driving Characteristics
The ZX 1.9 TD offered a distinctly different driving experience compared to the petrol-powered versions. While lacking the outright acceleration of the 2.0i or V6 models, the diesel engine provided ample torque from low engine speeds, making it well-suited for everyday driving and long-distance cruising. The 5-speed manual transmission allowed drivers to keep the engine in its optimal power band. The gear ratios were tuned for fuel efficiency, but still provided enough flexibility for overtaking maneuvers. Compared to the more powerful ZX variants, the 1.9 TD felt less sporty, but its fuel economy and relaxed cruising ability were significant advantages. The hydro-pneumatic suspension, a Citroën hallmark, provided a comfortable and compliant ride, absorbing bumps and imperfections in the road surface effectively.
Equipment & Trim Levels
The 1.9 TD variant of the ZX typically came with a moderate level of equipment. Standard features included power steering, central locking, and a basic audio system. Interior upholstery was typically cloth, with a functional and durable design. Optional extras included air conditioning, electric windows, and upgraded audio systems. The 3-door configuration emphasized a more youthful and sporty image compared to the 5-door model. Trim levels were relatively simple, with the 1.9 TD generally positioned as a mid-range offering. It provided a step up in terms of performance and refinement compared to the base models, but lacked the luxury features of the higher-end trims.
Chassis & Braking
The ZX featured an independent McPherson strut front suspension and a hydro-pneumatic rear suspension. The hydro-pneumatic system, unique to Citroën, offered self-leveling capabilities and adjustable ride height, contributing to the car’s exceptional ride comfort. The front brakes were ventilated discs, providing good stopping power, while the rear brakes were drums. This configuration was typical for vehicles in this weight class during the early 1990s. Anti-lock braking system (ABS) was available as an option, enhancing safety and control during emergency braking situations. The steering was a rack and pinion system with hydraulic power assistance, providing precise and responsive handling.
Market Reception & Comparison
The Citroën ZX 1.9 TD was generally well-received by automotive critics for its fuel efficiency, comfortable ride, and practical hatchback design. However, some reviewers noted that the diesel engine was somewhat noisy compared to petrol alternatives. Compared to other diesel hatchbacks of the era, such as the Volkswagen Golf TDI, the ZX 1.9 TD offered a competitive level of performance and refinement. The Golf TDI was often praised for its more sophisticated engine technology, while the ZX offered a more affordable price point and the unique benefits of Citroën’s hydro-pneumatic suspension. In terms of reliability, the XUD9 engine was known to be durable, but maintenance costs could be higher due to the complexity of the fuel injection system.
Legacy
The Citroën ZX 1.9 TD has developed a reputation as a reliable and economical used car. The XUD9 engine is known for its longevity, and many examples are still on the road today. However, finding parts for older models can be challenging. The hydro-pneumatic suspension requires regular maintenance to prevent leaks and ensure optimal performance. Despite these potential issues, the ZX 1.9 TD remains a popular choice for those seeking a classic European hatchback with a fuel-efficient diesel engine and a comfortable ride. It represents a significant chapter in Citroën’s history, showcasing the brand’s commitment to innovation and practicality.
