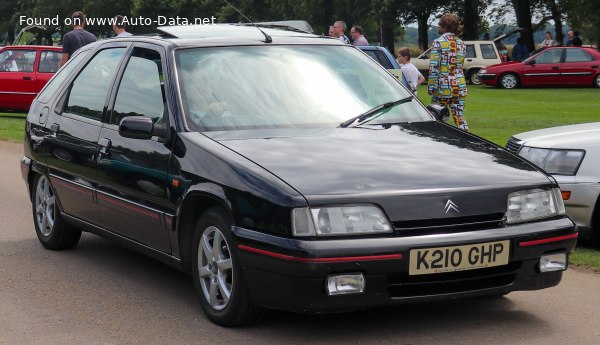

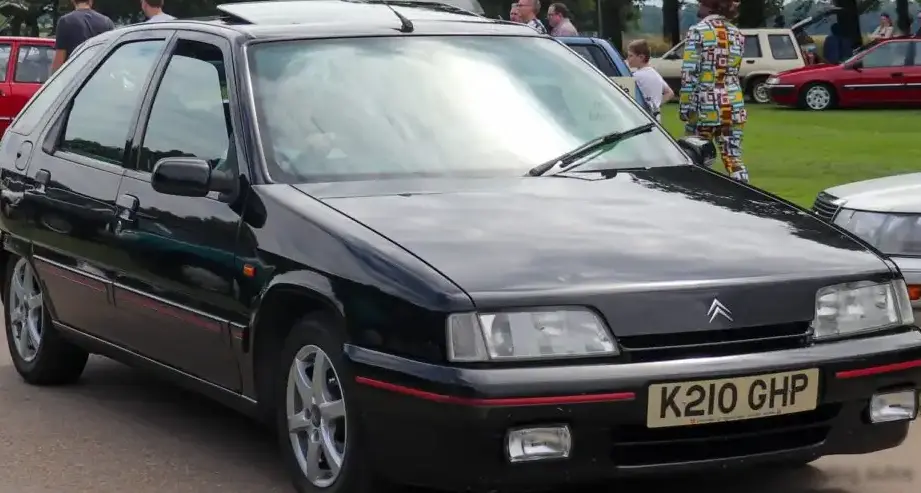

The Citroën ZX 1.9 TD, produced between 1992 and 1994, represented a significant offering in the European compact hatchback market. Part of the N2 series (Phase I), this variant featured a naturally aspirated 1.9-liter diesel engine producing 90 horsepower. It occupied a middle ground within the ZX lineup, positioned as a fuel-efficient and practical option for buyers prioritizing economy over outright performance. The ZX itself was Citroën’s replacement for the BX, aiming to offer a more modern and refined driving experience while retaining the brand’s commitment to innovative suspension technology.
Technical Specifications
| Brand | Citroen |
| Model | ZX |
| Generation | ZX (N2, Phase I) 5-door |
| Type (Engine) | 1.9 TD (90 Hp) |
| Start of production | 1992 |
| End of production | 1994 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg, 39.2 UK mpg, 13.9 km/l) |
| Fuel consumption (extra urban) | 4.3 l/100 km (54.7 US mpg, 65.7 UK mpg, 23.3 km/l) |
| Fuel consumption (combined) | 6.1 l/100 km (38.6 US mpg, 46.3 UK mpg, 16.4 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 12 sec |
| Acceleration 0 – 62 mph | 12 sec |
| Acceleration 0 – 60 mph | 11.4 sec |
| Maximum speed | 183 km/h (113.71 mph) |
| Weight-to-power ratio | 12.2 kg/Hp, 81.7 Hp/tonne |
| Weight-to-torque ratio | 5.5 kg/Nm, 182.4 Nm/tonne |
| Power | 90 Hp @ 4000 rpm |
| Power per litre | 47.2 Hp/l |
| Torque | 201 Nm @ 2250 rpm (148.25 lb.-ft. @ 2250 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | DHY XUD9TE/Y |
| Engine displacement | 1905 cm3 (116.25 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 83 mm (3.27 in.) |
| Piston Stroke | 88 mm (3.46 in.) |
| Compression ratio | 21.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Precombustion chamber injection |
| Engine aspiration | Turbocharger |
| Valvetrain | OHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Coolant | 9 l (9.51 US qt | 7.92 UK qt) |
| Kerb Weight | 1102 kg (2429.49 lbs.) |
| Max. weight | 1590 kg (3505.35 lbs.) |
| Max load | 488 kg (1075.86 lbs.) |
| Trunk (boot) space – minimum | 324 l (11.44 cu. ft.) |
| Trunk (boot) space – maximum | 926 l (32.7 cu. ft.) |
| Fuel tank capacity | 56 l (14.79 US gal | 12.32 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (12%) | 1100 kg (2425.08 lbs.) |
| Permitted trailer load without brakes | 550 kg (1212.54 lbs.) |
| Permitted towbar download | 70 kg (154.32 lbs.) |
| Length | 4071 mm (160.28 in.) |
| Width | 1688 mm (66.46 in.) |
| Height | 1399 mm (55.08 in.) |
| Wheelbase | 2540 mm (100 in.) |
| Front track | 1422 mm (55.98 in.) |
| Rear (Back) track | 1415 mm (55.71 in.) |
| Front overhang | 849 mm (33.43 in.) |
| Rear overhang | 682 mm (26.85 in.) |
| Minimum turning circle | 11.3 m (37.07 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson, Wishbone |
| Rear suspension | Hydro-pneumatic element, Trailing arm |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 175/65 R14 |
Powertrain & Engine Architecture
The heart of the ZX 1.9 TD was the XUD9TE/Y engine, a 1.9-liter inline-four diesel. This engine, a mainstay of Peugeot-Citroën (PSA) vehicles of the era, utilized precombustion chamber injection. This system, while less sophisticated than direct injection, offered good fuel economy and reliability. The engine produced 90 horsepower at 4000 rpm and 201 Nm (148 lb-ft) of torque at 2250 rpm. The engine featured an overhead camshaft (OHC) valvetrain and was naturally aspirated. The 5-speed manual transmission was the standard offering for this variant, providing a relatively long-legged gearing setup optimized for fuel efficiency. The transmission was known for its smooth operation, but wasn’t particularly sporty.
Driving Characteristics
The ZX 1.9 TD Automatic offered a comfortable, if not exhilarating, driving experience. Acceleration from 0-60 mph took around 12 seconds, making it slower than the gasoline-powered ZX variants. However, the engine’s strong low-end torque made it well-suited for everyday driving and overtaking on the highway. The long gearing emphasized fuel economy, and the car felt relaxed at cruising speeds. Compared to the more powerful 2.0-liter gasoline engines, the 1.9 TD prioritized fuel efficiency and durability over outright performance. The automatic transmission, while convenient, did sap some power and responsiveness compared to the manual gearbox.
Equipment & Trim Levels
The 1.9 TD typically came with a reasonable level of standard equipment. This included central locking, power steering, and a basic stereo system. Interior upholstery was typically cloth, and the dashboard featured a functional, if somewhat utilitarian, design. Optional extras included air conditioning, electric windows, and a sunroof. The trim level was generally considered mid-range, offering a good balance of features and affordability. It wasn’t as luxurious as the higher-spec ZX models, but it provided a comfortable and well-equipped cabin for the price.
Chassis & Braking
The ZX featured an independent McPherson strut front suspension and a unique hydro-pneumatic rear suspension system. This system, a Citroën hallmark, provided a remarkably smooth and comfortable ride, absorbing bumps and imperfections in the road with ease. The front brakes were ventilated discs, while the rear brakes were drums. ABS (Anti-lock Braking System) was standard, enhancing safety. The suspension setup was tuned for comfort rather than sporty handling, but the car still offered decent stability and grip.
Market Reception & Comparison
The Citroën ZX 1.9 TD was well-received in the European market as a practical and economical family car. Critics praised its comfortable ride, spacious interior, and fuel efficiency. However, some noted its relatively slow acceleration and somewhat bland styling. Compared to other diesel-powered hatchbacks of the time, such as the Volkswagen Golf TDI, the ZX offered a more comfortable ride but lacked the Golf’s reputation for build quality. The 1.9 TD was generally considered a more sensible choice than the more powerful gasoline variants, appealing to buyers who prioritized fuel economy and reliability.
Legacy
The XUD9 engine, found in the ZX 1.9 TD, is known for its durability and longevity. Many examples have exceeded 200,000 miles with proper maintenance. Today, the ZX 1.9 TD is a relatively rare sight on the roads, but it remains a popular choice among enthusiasts who appreciate its simplicity, reliability, and comfortable ride. Parts availability can be a challenge, but the engine itself is generally robust and relatively easy to repair. The ZX 1.9 TD represents a significant chapter in Citroën’s history, showcasing the brand’s commitment to innovation and practicality.
