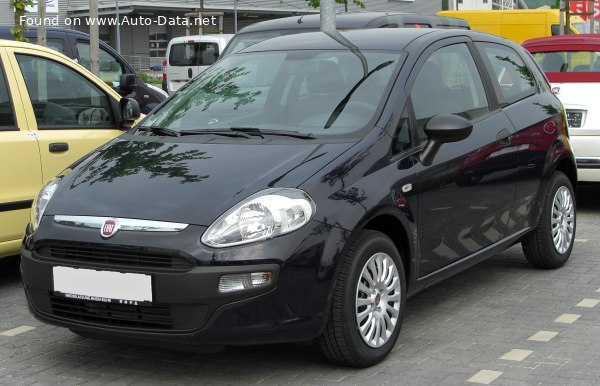

The Fiat Punto Evo 1.2 8V (69 hp) represents an entry-level variant within the 199 series Punto Evo range, produced between 2010 and 2011. Positioned as the most economical option in the lineup, it aimed to provide affordable transportation within the European market. The Punto Evo itself was a significant refresh of the outgoing Grande Punto, featuring revised styling, improved interior quality, and updated technology. This particular 1.2-liter engine and five-speed manual transmission combination was designed for fuel efficiency and ease of driving, targeting budget-conscious buyers and those primarily using the vehicle for urban commutes.
Technical Specifications
| Brand | Fiat |
| Model | Punto |
| Generation | Punto Evo (199) |
| Type (Engine) | 1.2 8V (69 Hp) |
| Start of production | 2010 |
| End of production | 2011 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3-5 |
| Fuel consumption (urban) | 6.7 l/100 km (35.1 US mpg, 42.2 UK mpg, 14.9 km/l) |
| Fuel consumption (extra urban) | 4.4 l/100 km (53.5 US mpg, 64.2 UK mpg, 22.7 km/l) |
| Fuel consumption (combined) | 5.2 l/100 km (45.2 US mpg, 54.3 UK mpg, 19.2 km/l) |
| CO2 emissions | 123 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 14.4 sec |
| Acceleration 0 – 62 mph | 14.4 sec |
| Acceleration 0 – 60 mph | 13.7 sec |
| Maximum speed | 155 km/h (96.31 mph) |
| Emission standard | Euro 5 |
| Weight-to-power ratio | 14.7 kg/Hp |
| Weight-to-torque ratio | 10 kg/Nm |
| Power | 69 Hp @ 5500 rpm |
| Power per litre | 55.6 Hp/l |
| Torque | 102 Nm @ 3000 rpm (75.23 lb.-ft. @ 3000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 169A4000 |
| Engine displacement | 1242 cm3 (75.79 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 70.8 mm (2.79 in.) |
| Piston Stroke | 78.9 mm (3.11 in.) |
| Compression ratio | 11:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 2.6 l (2.75 US qt | 2.29 UK qt) |
| Coolant | 5.3 l (5.6 US qt | 4.66 UK qt) |
| Kerb Weight | 1015 kg (2237.69 lbs.) |
| Max. weight | 1575 kg (3472.28 lbs.) |
| Max load | 560 kg (1234.59 lbs.) |
| Trunk (boot) space – minimum | 275 l (9.71 cu. ft.) |
| Trunk (boot) space – maximum | 1030 l (36.37 cu. ft.) |
| Fuel tank capacity | 45 l (11.89 US gal | 9.9 UK gal) |
| Permitted trailer load with brakes (12%) | 900 kg (1984.16 lbs.) |
| Permitted trailer load without brakes | 400 kg (881.85 lbs.) |
| Length | 4065 mm (160.04 in.) |
| Width | 1687 mm (66.42 in.) |
| Height | 1490 mm (58.66 in.) |
| Wheelbase | 2510 mm (98.82 in.) |
| Front track | 1473 mm (57.99 in.) |
| Rear (Back) track | 1466 mm (57.72 in.) |
| Drag coefficient (Cd) | 0.34 |
| Minimum turning circle (turning diameter) | 10.9 m (35.76 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 175/65 R15; 185/65 R15; 195/55 R16 |
| Wheel rims size | 15; 16 |
Powertrain & Engine Architecture
The heart of this Punto Evo variant is the 1.2-liter, 8-valve inline-four cylinder engine, designated with the code 169A4000. This engine is a naturally aspirated unit, meaning it doesn’t employ a turbocharger or supercharger. It utilizes a multi-point fuel injection system, delivering fuel directly into the intake ports. The 8-valve configuration (two valves per cylinder) is a relatively simple design, prioritizing reliability and cost-effectiveness over outright performance. The engine’s 11:1 compression ratio is fairly standard for a naturally aspirated gasoline engine of this era. The five-speed manual transmission is a conventional setup, offering a straightforward driving experience. Gear ratios are tuned for fuel economy, with a relatively long final drive.
Driving Characteristics
The 1.2 8V engine, producing 69 horsepower, delivers modest performance. Acceleration from 0-60 mph takes around 13.7 seconds, and top speed is limited to 155 km/h (96 mph). The engine feels underpowered when fully loaded or attempting quick overtaking maneuvers. However, in urban environments and on flat roads, it provides adequate performance for everyday driving. The manual transmission allows for precise control, but the long gear ratios necessitate frequent shifting to maintain momentum. Compared to the more powerful 1.4-liter versions or the diesel variants, this engine prioritizes fuel economy over spirited driving. The steering is light and easy, making it well-suited for city driving, but lacks the feel and precision of more performance-oriented models.
Equipment & Trim Levels
The 1.2 8V typically represented the base trim level of the Punto Evo range. Standard equipment generally included power steering, ABS brakes, a driver’s airbag, and basic audio system. Interior upholstery was typically cloth, and the dashboard featured a simple, functional design. Optional extras included air conditioning, electric windows, and a passenger airbag. Higher trim levels, such as the Dynamic and Eleganza, added features like alloy wheels, upgraded audio systems, and more luxurious interior trim.
Chassis & Braking
The Punto Evo 1.2 8V utilizes a McPherson strut front suspension and a semi-independent torsion beam rear suspension. This setup provides a comfortable ride quality, but doesn’t offer the same level of handling precision as more sophisticated independent rear suspension systems. The front brakes are ventilated discs, providing adequate stopping power, while the rear brakes are drums, a cost-saving measure common in entry-level vehicles. The electric power steering provides light and easy steering, but lacks the feedback of a hydraulic system.
Market Reception & Comparison
The Punto Evo 1.2 8V was generally well-received as an affordable and economical city car. Critics praised its fuel efficiency and ease of driving, but noted its lack of performance. Compared to the 1.4-liter versions, the 1.2 8V offered significantly lower running costs but at the expense of driving enjoyment. The diesel variants provided better fuel economy and more torque, but were more expensive to purchase. The Punto Evo competed with other small hatchbacks such as the Renault Clio, Peugeot 207, and Volkswagen Polo.
Legacy
The 1.2 8V engine, while not known for its performance, proved to be a reliable and durable unit. The Punto Evo 1.2 8V remains a relatively affordable option on the used car market. Maintenance costs are generally low, and parts availability is good. However, potential buyers should be aware of the engine’s limited power output and the basic nature of the standard equipment. The simplicity of the engine and transmission contributes to its longevity, making it a practical choice for those seeking a dependable and economical small car.
