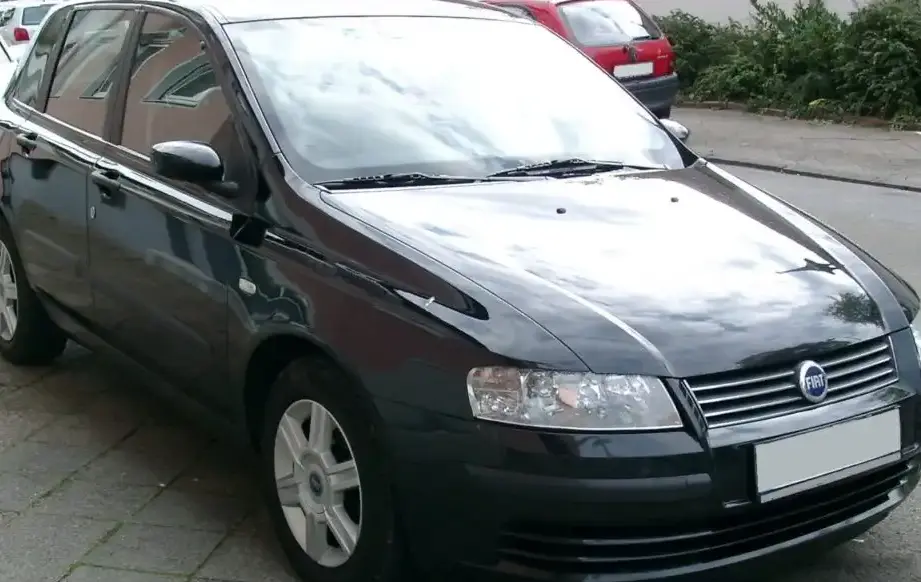

The Fiat Stilo 1.8 16V (133 hp) was a five-door hatchback produced by the Italian manufacturer Fiat from 2001 to 2003. Positioned as a mid-range offering within the Stilo lineup, it aimed to provide a balance between performance and affordability in the competitive European C-segment. The Stilo, launched as a replacement for the Bravo/Brava, represented Fiat’s attempt to modernize its image and offer a more sophisticated vehicle. This particular 1.8L variant was a key part of that strategy, offering a larger engine option for drivers seeking more power than the base models, but without the expense of the more sporting Abarth versions.
Technical Specifications
| Brand | Fiat |
| Model | Stilo |
| Generation | Stilo (5-door) |
| Type (Engine) | 1.8 16V (133 Hp) |
| Start of production | 2001 |
| End of production | 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 11.5 l/100 km (20.5 US mpg) |
| Fuel consumption (extra urban) | 6.2 l/100 km (37.9 US mpg) |
| Fuel consumption (combined) | 8.1 l/100 km (29 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 10.3 sec |
| Acceleration 0 – 62 mph | 10.3 sec |
| Acceleration 0 – 60 mph | 9.8 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Weight-to-power ratio | 9.7 kg/Hp |
| Weight-to-torque ratio | 8 kg/Nm |
| Power | 133 Hp @ 6400 rpm |
| Torque | 162 Nm @ 3500 rpm (119.49 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 192A4000 |
| Engine displacement | 1747 cm3 (106.61 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm (3.23 in.) |
| Piston Stroke | 82.7 mm (3.26 in.) |
| Compression ratio | 10.3:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated |
| Valvetrain | DOHC |
| Engine oil capacity | 4.2 l (4.44 US qt | 3.7 UK qt) |
| Coolant capacity | 7.3 l (7.71 US qt | 6.42 UK qt) |
| Kerb Weight | 1295 kg (2854.99 lbs.) |
| Max. weight | 1800 kg (3968.32 lbs.) |
| Max load | 505 kg (1113.33 lbs.) |
| Trunk (boot) space – minimum | 335 l (11.83 cu. ft.) |
| Trunk (boot) space – maximum | 410 l (14.48 cu. ft.) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Length | 4255 mm (167.52 in.) |
| Width | 1755 mm (69.09 in.) |
| Height | 1525 mm (60.04 in.) |
| Wheelbase | 2600 mm (102.36 in.) |
| Front track | 1515 mm (59.65 in.) |
| Rear track | 1510 mm (59.45 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/65 R15 |
| Wheel rims size | 6.5J x 15 |
Powertrain & Engine Architecture
The heart of the Stilo 1.8 16V was the 192A4000 engine, a naturally aspirated, four-cylinder inline engine displacing 1747cc. This engine featured a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, contributing to its relatively high output for its size. Fuel delivery was handled by a multi-port fuel injection system, providing precise fuel metering for improved efficiency and performance. The engine boasted a compression ratio of 10.3:1. The 192A4000 was a common engine within the Fiat group, also finding application in other models like the Alfa Romeo 147 and Lancia Lybra. The five-speed manual transmission was the standard offering for this variant, providing a direct connection between the engine and the front wheels. The transmission was chosen for its balance of cost-effectiveness and driving engagement.
Driving Characteristics
The Stilo 1.8 16V offered a noticeable step up in performance compared to the lower-displacement engines available in the range. With 133 horsepower, it provided adequate acceleration for everyday driving, achieving 0-60 mph in around 9.8 seconds and a top speed of 124 mph. While not a sports car, the 1.8L engine delivered a responsive feel, particularly in the mid-range. The five-speed manual transmission allowed drivers to keep the engine in its optimal power band. Compared to the more powerful Abarth versions, the 1.8 felt less urgent, but it offered a more relaxed and fuel-efficient driving experience. The gear ratios were fairly standard for the class, prioritizing usability over outright performance.
Equipment & Trim Levels
The Stilo 1.8 16V typically came equipped with a reasonable level of standard features. These included central locking, electric front windows, power steering, and an ABS anti-lock braking system. Interior upholstery was generally cloth, with a functional and modern dashboard layout. Optional extras included air conditioning, alloy wheels, a CD stereo system, and rear electric windows. Higher trim levels, such as the “Active” or “Dynamic” variants, added further refinements like upgraded interior trim, fog lights, and a trip computer.
Chassis & Braking
The Stilo utilized a front-wheel-drive layout with independent suspension at the front (Spring Strut) and a coil spring setup at the rear. The suspension was tuned for a comfortable ride, prioritizing everyday usability over sharp handling. Braking duties were handled by ventilated discs at the front and solid discs at the rear, providing adequate stopping power for the vehicle’s weight and performance. The ABS system enhanced braking safety, particularly in adverse conditions. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The Fiat Stilo 1.8 16V was generally well-received by automotive critics as a competent and practical family hatchback. It was praised for its comfortable ride, spacious interior, and relatively strong engine performance. However, some reviewers noted that the styling was somewhat bland and that the interior plastics felt a little low-rent. Compared to rivals like the Volkswagen Golf and Ford Focus, the Stilo offered a more affordable price point, but lacked the same level of brand prestige. Fuel economy was competitive for the class, averaging around 29 US mpg in combined driving. Reliability was generally considered average, with some reports of minor electrical issues.
Legacy
The Fiat Stilo, while not a runaway success, remains a reasonably popular used car today. The 1.8 16V engine is generally considered reliable, provided it has been properly maintained. The engine’s relatively simple design makes it relatively easy and affordable to repair. Parts availability is generally good, although some components may be becoming increasingly difficult to source. The Stilo 1.8 16V represents a solid, if unspectacular, choice for buyers seeking an affordable and practical family hatchback with a decent level of performance.
