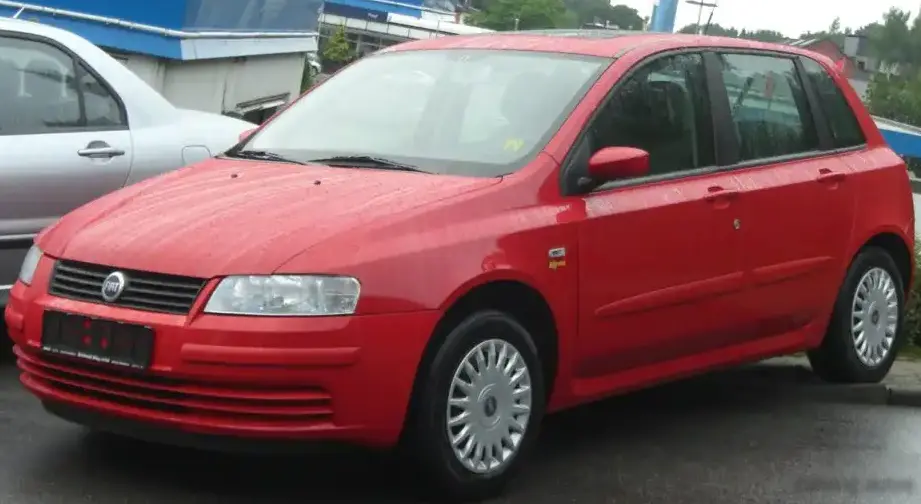

The Fiat Stilo 1.4 i 16V, produced from 2004 to 2005, represented an entry-level offering within the refreshed (facelift) Stilo range. Introduced as part of the 147 project, the Stilo aimed to modernize Fiat’s presence in the competitive European C-segment hatchback market. This particular variant, equipped with the 1.4-liter engine and a manual transmission, was positioned as a fuel-efficient and affordable option, targeting buyers prioritizing practicality and lower running costs over outright performance. The facelift brought subtle styling changes and improvements to the interior, aiming to address some criticisms leveled at the original Stilo design.
Technical Specifications
| Brand | Fiat |
| Model | Stilo |
| Generation | Stilo (5-door, facelift 2003) |
| Type (Engine) | 1.4 i 16V (95 Hp) |
| Start of production | 2004 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 8.5 l/100 km (27.7 US mpg, 33.2 UK mpg, 11.8 km/l) |
| Fuel consumption (extra urban) | 5.7 l/100 km (41.3 US mpg, 49.6 UK mpg, 17.5 km/l) |
| Fuel consumption (combined) | 6.5 l/100 km (36.2 US mpg, 43.5 UK mpg, 15.4 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 12.4 sec |
| Acceleration 0 – 62 mph | 12.4 sec |
| Acceleration 0 – 60 mph | 11.8 sec |
| Maximum speed | 178 km/h (110.6 mph) |
| Weight-to-power ratio | 12.1 kg/Hp, 83 Hp/tonne |
| Weight-to-torque ratio | 8.9 kg/Nm, 111.8 Nm/tonne |
| Power | 95 Hp @ 5800 rpm |
| Power per litre | 69.4 Hp/l |
| Torque | 128 Nm @ 4500 rpm (94.41 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 843A1000 |
| Engine displacement | 1368 cm3 (83.48 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 72 mm (2.83 in.) |
| Piston Stroke | 84 mm (3.31 in.) |
| Compression ratio | 11.2:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 2.8 l (2.96 US qt | 2.46 UK qt) |
| Coolant | 5.3 l (5.6 US qt | 4.66 UK qt) |
| Kerb Weight | 1145 kg (2524.29 lbs.) |
| Max. weight | 1750 kg (3858.09 lbs.) |
| Max load | 605 kg (1333.8 lbs.) |
| Trunk (boot) space – minimum | 305 l (10.77 cu. ft.) |
| Trunk (boot) space – maximum | 1000 l (35.31 cu. ft.) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Length | 4180 mm (164.57 in.) |
| Width | 1785 mm (70.28 in.) |
| Height | 1475 mm (58.07 in.) |
| Wheelbase | 2600 mm (102.36 in.) |
| Front track | 1515 mm (59.65 in.) |
| Rear (Back) track | 1510 mm (59.45 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 195/65 R15 |
| Wheel rims size | 6.5J x 15 |
Powertrain & Engine Architecture
The heart of the Stilo 1.4 i 16V is the 843A1000 engine, a naturally aspirated, inline-four cylinder gasoline engine. This engine utilizes a multi-port fuel injection system, delivering fuel directly into the intake ports just before the intake valves. The engine features a double overhead camshaft (DOHC) valvetrain, operating four valves per cylinder, which contributes to improved breathing and higher-end power delivery. The 1.4-liter engine produces 95 horsepower at 5800 rpm and 128 Nm (94.41 lb-ft) of torque at 4500 rpm. The engine’s relatively modest output was typical for entry-level C-segment hatchbacks of the period. The manual transmission offered in this variant was a standard 6-speed gearbox, designed to optimize fuel efficiency and provide reasonable acceleration.
Driving Characteristics
The Stilo 1.4 i 16V offered a comfortable, if not particularly exciting, driving experience. Acceleration from 0 to 100 km/h (0-62 mph) took approximately 12.4 seconds, and top speed was around 178 km/h (110.6 mph). Compared to higher-output versions of the Stilo, such as the 2.4-liter model, the 1.4 felt noticeably slower, especially during overtaking maneuvers. However, the 6-speed manual transmission allowed drivers to keep the engine in its optimal power band, mitigating some of the performance deficit. The gear ratios were tuned for fuel economy, resulting in a slightly less responsive feel compared to sportier variants. The steering was light and precise, making it easy to maneuver in urban environments.
Equipment & Trim Levels
The 1.4 i 16V trim typically included standard features such as power steering, central locking, electric front windows, and an ABS anti-lock braking system. Interior upholstery was generally cloth, with a functional, if somewhat basic, dashboard layout. Optional extras available for this trim level included air conditioning, alloy wheels, a CD player, and upgraded interior trim materials. The Stilo aimed for a balance between affordability and practicality, offering a reasonable level of equipment for its price point.
Chassis & Braking
The Stilo 1.4 i 16V utilized a front-wheel-drive layout with a MacPherson strut suspension at the front and a coil spring suspension at the rear. The braking system consisted of ventilated discs at the front and solid discs at the rear, providing adequate stopping power for everyday driving. The suspension setup was tuned for comfort, prioritizing ride quality over sporty handling. Stabilizer bars were included to reduce body roll during cornering, but the overall handling characteristics were geared towards a more relaxed driving experience.
Market Reception & Comparison
The Fiat Stilo 1.4 i 16V was generally well-received as an affordable and practical hatchback. Critics praised its fuel efficiency and comfortable ride, but noted its lack of outright performance compared to some of its rivals. Compared to other engines in the Stilo lineup, such as the more powerful 2.4-liter, the 1.4 offered significantly better fuel economy but at the expense of acceleration and overall driving excitement. The 1.4 was often seen as a sensible choice for buyers prioritizing value and low running costs.
Legacy
The Fiat Stilo, while not a runaway sales success, remains a relatively common sight on European roads today. The 1.4 i 16V engine is known for its reliability and relatively low maintenance costs. However, like many European cars of this era, it is susceptible to age-related issues such as corrosion and wear and tear on suspension components. In the used car market, the Stilo 1.4 i 16V represents an affordable entry point into C-segment hatchback ownership, offering a practical and economical transportation solution.
