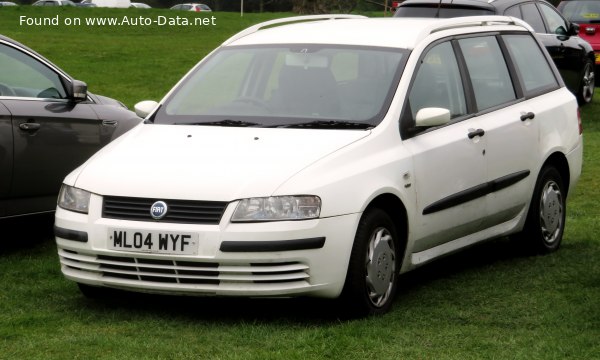

The Fiat Stilo Multi Wagon, specifically the 1.9 16V JTD variant produced from 2003 to 2005, represented a significant offering in the European compact station wagon segment. This facelifted version of the Stilo Multi Wagon aimed to blend practicality with a degree of sporting appeal, leveraging Fiat’s expertise in diesel engine technology. Positioned as a mid-range option within the Stilo lineup, it catered to buyers seeking fuel efficiency, ample cargo space, and a more refined driving experience than the base models. It was a direct competitor to vehicles like the Volkswagen Golf Wagon, Ford Focus Wagon, and Peugeot 307 SW.
Technical Specifications
| Brand | Fiat |
| Model | Stilo |
| Generation | Stilo Multi Wagon (facelift 2003) |
| Type (Engine) | 1.9 16V JTD (140 Hp) |
| Start of production | 2003 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.8 l/100 km (30.2 US mpg, 36.2 UK mpg, 12.8 km/l) |
| Fuel consumption (extra urban) | 4.4 l/100 km (53.5 US mpg, 64.2 UK mpg, 22.7 km/l) |
| Fuel consumption (combined) | 5.6 l/100 km (42 US mpg, 50.4 UK mpg, 17.9 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 10 sec |
| Acceleration 0 – 62 mph | 10 sec |
| Acceleration 0 – 60 mph | 9.5 sec |
| Maximum speed | 200 km/h (124.27 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 10.2 kg/Hp, 97.9 Hp/tonne |
| Weight-to-torque ratio | 4.7 kg/Nm, 213.3 Nm/tonne |
| Power | 140 Hp @ 4000 rpm |
| Power per litre | 73.3 Hp/l |
| Torque | 305 Nm @ 2000 rpm (224.96 lb.-ft. @ 2000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | 192A5000 |
| Engine displacement | 1910 cm3 (116.56 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82 mm (3.23 in.) |
| Piston Stroke | 90.4 mm (3.56 in.) |
| Compression ratio | 18:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Coolant | 6.3 l (6.66 US qt | 5.54 UK qt) |
| Kerb Weight | 1430 kg (3152.61 lbs.) |
| Max. weight | 1805 kg (3979.34 lbs.) |
| Max load | 375 kg (826.73 lbs.) |
| Trunk (boot) space – minimum | 510 l (18.01 cu. ft.) |
| Trunk (boot) space – maximum | 1480 l (52.27 cu. ft.) |
| Fuel tank capacity | 58 l (15.32 US gal | 12.76 UK gal) |
| Length | 4516 mm (177.8 in.) |
| Width | 1756 mm (69.13 in.) |
| Height | 1570 mm (61.81 in.) |
| Wheelbase | 2600 mm (102.36 in.) |
| Front track | 1514 mm (59.61 in.) |
| Rear (Back) track | 1508 mm (59.37 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 205/55 R16 |
| Wheel rims size | 6.5J x 16 |
Powertrain & Engine Architecture
The heart of the Stilo Multi Wagon 1.9 JTD was the 192A5000 engine, a 1.9-liter inline-four cylinder diesel. This engine was a product of Fiat’s ongoing development of common rail direct injection technology. The 16-valve DOHC configuration, combined with a turbocharger and intercooler, allowed for a relatively high output of 140 horsepower at 4000 rpm and a substantial 305 Nm (224.96 lb-ft) of torque at just 2000 rpm. The common rail system, supplied by Bosch, enabled precise control over fuel injection timing and quantity, contributing to both performance and fuel efficiency. The engine featured a compression ratio of 18:1, typical for direct injection diesels. The 5-speed manual transmission was the standard offering, providing a balance between fuel economy and drivability.
Driving Characteristics
The 1.9 JTD engine provided a noticeable step up in performance compared to the lower-powered petrol engines available in the Stilo range. While not a sports car, the 140 hp output and strong low-end torque made it capable of brisk acceleration and comfortable highway cruising. The 0-60 mph time of around 9.5 seconds was respectable for its class. The manual transmission offered precise shifts, and the gear ratios were well-matched to the engine’s torque curve. Compared to the 1.8 petrol variants, the JTD offered significantly better fuel economy and a more relaxed driving experience, particularly on longer journeys. However, it lacked the high-revving character of the petrol engines.
Equipment & Trim Levels
The 1.9 JTD Multi Wagon typically came equipped with a reasonable level of standard features. These included air conditioning, power windows, central locking, and an RDS radio. Higher trim levels, such as the Dynamic and Eleganza, added features like alloy wheels, a trip computer, automatic climate control, and upgraded interior trim. Interior upholstery was typically cloth, with options for leather available on the higher-spec models. Safety features included ABS brakes, driver and passenger airbags, and seatbelt pretensioners.
Chassis & Braking
The Stilo Multi Wagon utilized an independent McPherson strut suspension at the front and a coil spring setup at the rear. This configuration provided a good balance between ride comfort and handling. The front brakes were ventilated discs, while the rear brakes were solid discs, providing adequate stopping power for the vehicle’s weight. The steering was a rack and pinion system, offering precise and responsive control. The standard tire size was 205/55 R16, mounted on 6.5J x 16 alloy wheels.
Market Reception & Comparison
The Fiat Stilo Multi Wagon 1.9 JTD was generally well-received by automotive critics. It was praised for its fuel efficiency, spacious interior, and comfortable ride. The JTD engine was considered a strong performer, offering a good blend of power and economy. However, some critics noted that the interior design was somewhat bland and that the handling wasn’t as sharp as some of its competitors. Compared to the petrol-powered Stilos, the JTD offered superior fuel economy and torque, making it a more practical choice for long-distance drivers. Against rivals like the Volkswagen Golf Wagon and Ford Focus Wagon, the Stilo offered a competitive package, often at a slightly lower price point.
Legacy
The 1.9 JTD engine proved to be a reliable and durable unit, and many examples are still on the road today. While diesel engines, in general, have faced increased scrutiny in recent years due to emissions concerns, the 192A5000 engine remains relatively well-regarded for its longevity. The Stilo Multi Wagon, while not a sales blockbuster, established Fiat as a capable player in the compact station wagon market. In the used car market, these models represent a relatively affordable and practical option for buyers seeking a fuel-efficient and spacious vehicle. Regular maintenance, including timely oil changes and filter replacements, is crucial for ensuring the continued reliability of this powertrain.
