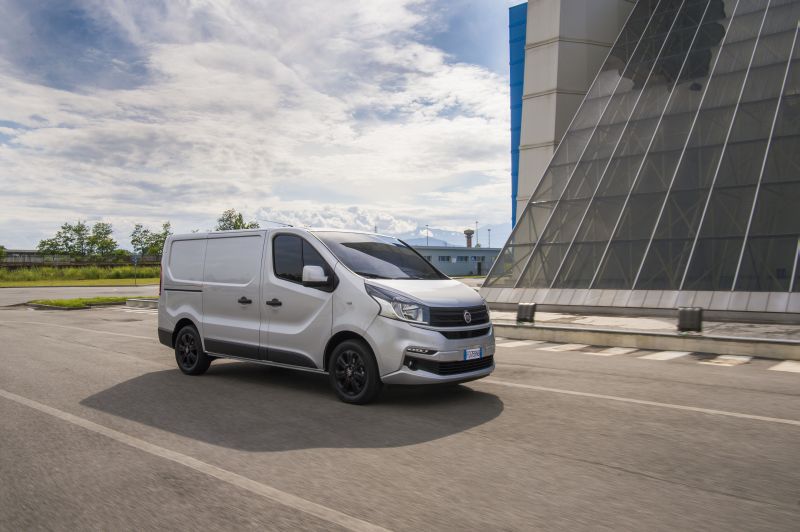

The Fiat Talento Van 1.6 Ecojet (125 hp) L1H1, produced from 2016 to 2021, represents Fiat’s entry in the mid-size commercial van segment. Positioned as a workhorse vehicle, the Talento aimed to provide a practical and efficient solution for businesses and tradespeople requiring a versatile cargo carrier. The “L1H1” designation refers to the van’s body length and roof height – a standard length and standard roof configuration. This variant played a crucial role in expanding Fiat’s professional vehicle offerings, competing with established models like the Renault Trafic, Volkswagen Transporter, and Ford Transit Custom. It was built in collaboration with Renault and Nissan, sharing a common platform and many components with the Trafic and NV300 respectively.
Technical Specifications
| Brand | Fiat |
| Model | Talento |
| Generation | Talento Van |
| Type (Engine) | 1.6 Ecojet (125 Hp) L1H1 |
| Start of production | 2016 year |
| End of production | 2021 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Minivan |
| Seats | 3 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 6.9 l/100 km (34.1 US mpg, 40.9 UK mpg, 14.5 km/l) |
| Fuel consumption (economy) – extra urban | 5.5 l/100 km (42.8 US mpg, 51.4 UK mpg, 18.2 km/l) |
| Fuel consumption (economy) – combined | 5.9 l/100 km (39.9 US mpg, 47.9 UK mpg, 16.9 km/l) |
| CO2 emissions | 155 g/km |
| Fuel Type | Diesel |
| Maximum speed | 174 km/h (108.12 mph) |
| Emission standard | Euro 6 |
| Weight-to-power ratio | 13.9 kg/Hp, 71.7 Hp/tonne |
| Weight-to-torque ratio | 5.4 kg/Nm, 183.6 Nm/tonne |
| Power | 125 Hp @ 3500 rpm |
| Power per litre | 78.2 Hp/l |
| Torque | 320 Nm @ 1500 rpm (236.02 lb.-ft. @ 1500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | R9M 452 |
| Engine displacement | 1598 cm3 (97.52 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 80 mm (3.15 in.) |
| Piston Stroke | 79.5 mm (3.13 in.) |
| Compression ratio | 15.45:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Twin-Turbo, Intercooler |
| Engine oil capacity | 7.4 l (7.82 US qt | 6.51 UK qt) |
| Coolant | 9.5 l (10.04 US qt | 8.36 UK qt) |
| Kerb Weight | 1743 kg (3842.66 lbs.) |
| Max. weight | 2820-2960 kg (6217.04 – 6525.68 lbs.) |
| Max load | 1077-1217 kg (2374.38 – 2683.03 lbs.) |
| Trunk (boot) space – maximum | 5200 l (183.64 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Permitted trailer load with brakes (12%) | 2000 kg (4409.25 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Length | 4999 mm (196.81 in.) |
| Width | 1956 mm (77.01 in.) |
| Width including mirrors | 2283 mm (89.88 in.) |
| Height | 1971 mm (77.6 in.) |
| Wheelbase | 3098 mm (121.97 in.) |
| Front track | 1615 mm (63.58 in.) |
| Rear (Back) track | 1628 mm (64.09 in.) |
| Front overhang | 933 mm (36.73 in.) |
| Rear overhang | 968 mm (38.11 in.) |
| Minimum turning circle (turning diameter) | 12.40 m (40.68 ft.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 205/65 R16; 215/60 R17 |
| Wheel rims size | 16; 17 |
Powertrain & Engine Architecture
The Talento 1.6 Ecojet utilizes the Renault-developed R9M engine family, specifically the R9M 452 variant. This is a 1.6-liter, inline four-cylinder diesel engine featuring a twin-turbocharger setup with an intercooler. The twin-turbo configuration is designed to minimize turbo lag and provide a broader torque curve. Fuel is delivered via a common-rail direct injection system, contributing to efficient combustion and reduced emissions. The engine boasts 125 horsepower at 3500 rpm and a substantial 320 Nm (236 lb-ft) of torque available from just 1500 rpm. This low-end torque is particularly beneficial for a commercial van, aiding in hauling loads and navigating urban environments. The engine’s 15.45:1 compression ratio is typical for modern diesel engines, optimizing efficiency. The 6-speed manual transmission was standard for this configuration, providing a balance between fuel economy and drivability.
Driving Characteristics
The 1.6 Ecojet engine, paired with the 6-speed manual transmission, delivers adequate performance for typical commercial van duties. While not a performance-oriented vehicle, the engine’s strong low-end torque makes it capable of carrying substantial loads without feeling strained. Acceleration is modest, but sufficient for merging onto highways and maintaining speed. The gear ratios are well-chosen to keep the engine within its optimal torque band during everyday driving. Compared to higher-powered versions of the Talento, this 125 hp variant offers a more economical driving experience, but at the expense of outright speed and hauling capacity. The manual transmission provides drivers with greater control, especially when navigating challenging terrain or towing.
Equipment & Trim Levels
The Talento 1.6 Ecojet L1H1 typically came with a functional, rather than luxurious, equipment list. Standard features included a driver’s airbag, ABS brakes, power steering, and a basic audio system with USB connectivity. The interior was primarily focused on durability and practicality, with hard-wearing plastics and easy-to-clean surfaces. Trim levels were relatively simple, with options for upgrades such as air conditioning, rear parking sensors, a touchscreen infotainment system, and cruise control. Upholstery was typically a durable cloth material. The emphasis was on providing a reliable and functional work vehicle, rather than a premium experience.
Chassis & Braking
The Talento utilizes a front-wheel-drive layout, contributing to a lower load floor and improved fuel efficiency. The front suspension employs an independent McPherson strut design with a coil spring and anti-roll bar, providing a comfortable ride and stable handling. The rear suspension is a semi-independent coil spring setup, optimized for load-carrying capacity. Braking duties are handled by ventilated discs at the front and solid discs at the rear, providing adequate stopping power for the vehicle’s weight. ABS (Anti-lock Braking System) is standard, enhancing safety during emergency braking situations.
Market Reception & Comparison
The Fiat Talento 1.6 Ecojet was generally well-received by critics as a practical and efficient commercial van. Its fuel economy was a strong point, particularly compared to some of its competitors. However, some reviewers noted that the engine could feel underpowered when fully loaded or driving uphill. Compared to the higher-powered versions of the Talento, this variant offered a more affordable entry point, but with a trade-off in performance. Against rivals like the Renault Trafic and Volkswagen Transporter, the Talento offered a competitive package in terms of price, fuel efficiency, and load capacity.
Legacy
The Fiat Talento 1.6 Ecojet, while not known for any groundbreaking innovations, has proven to be a reliable and durable workhorse. The R9M engine, while having some reported issues with turbocharger failures in some applications, generally offers good longevity with proper maintenance. On the used market, these vans represent a relatively affordable option for businesses and tradespeople seeking a practical and economical cargo carrier. The availability of spare parts is good, thanks to the shared platform with Renault and Nissan vehicles. The Talento continues to be a popular choice for those prioritizing functionality and value over outright performance or luxury.
