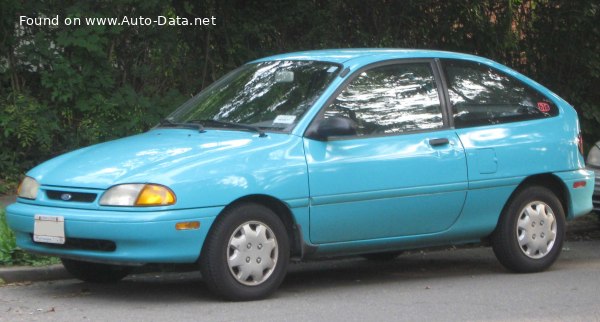

The Ford Aspire 1.3i, produced between 1994 and 1998, represented Ford’s entry-level offering in the subcompact hatchback segment, primarily targeted at the North American market. Derived from the Mazda-based platform, the Aspire aimed to provide affordable and fuel-efficient transportation. This particular 1.3i variant, generating 64 horsepower, served as the base model, offering a no-frills approach to personal mobility. It was positioned below any potential higher-performance or better-equipped trims that were not offered in the US market. The Aspire was a rebadged version of the Mazda 121, reflecting Ford’s strategic partnership with Mazda during that period.
Technical Specifications
| Brand | Ford |
| Model | Aspire |
| Generation | Aspire |
| Type (Engine) | 1.3i (64 Hp) |
| Start of production | 1994 |
| End of production | 1998 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (combined) | 7.3 l/100 km (32.2 US mpg, 38.7 UK mpg, 13.7 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 145 km/h (90.1 mph) |
| Weight-to-power ratio | 14.2 kg/Hp (70.4 Hp/tonne) |
| Weight-to-torque ratio | 9.1 kg/Nm (110 Nm/tonne) |
| Power | 64 Hp @ 5000 rpm |
| Power per litre | 48.3 Hp/l |
| Torque | 100 Nm @ 3000 rpm (73.76 lb.-ft. @ 3000 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | B3 |
| Engine displacement | 1324 cm3 (80.8 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 71 mm (2.8 in.) |
| Piston Stroke | 83.6 mm (3.29 in.) |
| Compression ratio | 9.7:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Single-point injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.4 l (3.59 US qt | 2.99 UK qt) |
| Coolant | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 909 kg (2004 lbs.) |
| Fuel tank capacity | 38 l (10.04 US gal | 8.36 UK gal) |
| Length | 4440 mm (174.8 in.) |
| Width | 1680 mm (66.14 in.) |
| Height | 1360 mm (53.54 in.) |
| Wheelbase | 2305 mm (90.75 in.) |
| Front track | 1435 mm (56.5 in.) |
| Rear track | 1435 mm (56.5 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Spring Strut |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Steering type | Steering rack and pinion |
| Tires size | 155/80 R13 |
Powertrain & Engine Architecture
The heart of the 1994-1998 Ford Aspire 1.3i is the B3 engine, a 1.3-liter inline-four cylinder gasoline engine. This engine, originally developed by Mazda, utilizes a single overhead camshaft (OHC) valvetrain with two valves per cylinder. The B3 engine employed a single-point fuel injection system, a relatively simple and cost-effective technology for the time. This system injects fuel into the intake manifold rather than directly into the combustion chamber, resulting in slightly lower efficiency and power output compared to multi-point injection. The engine’s 9.7:1 compression ratio was a compromise between performance and the ability to run on readily available fuel grades. The five-speed manual transmission was the standard offering, providing a relatively direct connection between the engine and the front wheels. The transmission was chosen for its simplicity and contribution to fuel economy.
Driving Characteristics
The Aspire 1.3i’s driving experience was defined by its modest power output. With only 64 horsepower, acceleration was leisurely, and overtaking required careful planning. The five-speed manual transmission allowed drivers to keep the engine in its optimal power band, but the lack of torque meant frequent downshifting was necessary, especially when encountering hills or carrying a full load. Compared to potential higher-spec versions (which were not sold in the US), the 1.3i offered a more economical but less engaging driving experience. The gear ratios were tuned for fuel efficiency rather than outright performance. The steering was light and responsive, making it easy to maneuver in urban environments, but lacked the feel and precision of more sophisticated systems.
Equipment & Trim Levels
The base-model Aspire 1.3i was intentionally spartan in its equipment levels. Standard features typically included cloth upholstery, a basic AM/FM radio, and manual windows and door locks. Air conditioning was often an optional extra, as were power windows and a better audio system. The interior design was functional but lacked the aesthetic refinement of more expensive vehicles. The dashboard was constructed from durable plastics, and the overall focus was on practicality and affordability. Safety features were also basic, typically including seatbelts and a driver’s side airbag.
Chassis & Braking
The Aspire’s chassis featured a relatively simple suspension setup, consisting of MacPherson strut front suspension and a coil spring rear suspension. This configuration provided a comfortable ride quality, but handling was not particularly sporty. The front brakes were disc brakes, offering adequate stopping power, while the rear brakes were drum brakes, a cost-saving measure. The steering system utilized a rack-and-pinion setup, providing light and responsive steering feel. The 155/80 R13 tires were chosen for their balance of fuel efficiency and grip.
Market Reception & Comparison
The Ford Aspire 1.3i was generally well-received as an affordable and fuel-efficient subcompact car. Critics praised its low price and good gas mileage, but noted its lack of power and refinement. Compared to other subcompacts of the time, such as the Chevrolet Metro and the Geo Prizm, the Aspire offered a competitive combination of price, fuel economy, and practicality. However, it lacked the features and performance of more expensive models. The 1.3i engine’s fuel economy of around 32 mpg combined was a significant selling point, particularly during a period of fluctuating gasoline prices.
Legacy
The Ford Aspire, while not a particularly memorable vehicle, played an important role in providing affordable transportation to a wide range of consumers. The 1.3i engine, while simple in design, proved to be relatively reliable and durable. Today, surviving examples of the Aspire 1.3i are relatively rare, and those that remain are often sought after by collectors and enthusiasts looking for a nostalgic reminder of the 1990s. The powertrain, while not known for high performance, is generally considered to be reasonably reliable, provided it has been properly maintained. Parts availability can be a challenge, but many components are still available through aftermarket suppliers or salvaged vehicles. The Aspire’s legacy lies in its affordability and its contribution to the subcompact car segment.
