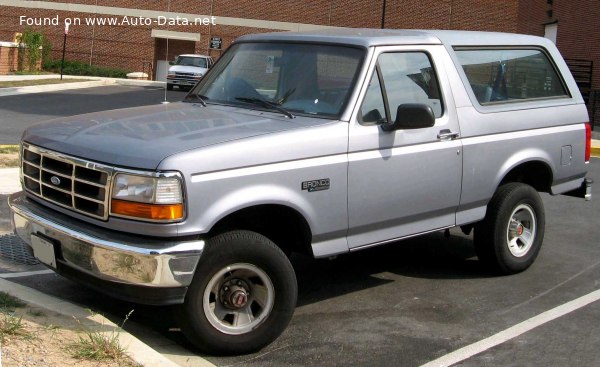

The Ford Bronco V with the 5.0-liter V8 engine and automatic transmission, produced between 1992 and 1996, represents a unique chapter in the Bronco’s history. This variant, part of the fifth generation (1992-1996) of the Bronco, offered a substantial performance upgrade over the inline-six cylinder options available, catering to buyers seeking a more powerful and capable SUV. Positioned as a mid-to-high range trim, it bridged the gap between the base models and potential future, more specialized off-road packages. The Bronco V 5.0 aimed to deliver a blend of on-road comfort and robust off-road capability, appealing to a diverse range of drivers in the North American market.
Technical Specifications
| Brand | Ford |
| Model | Bronco |
| Generation | Bronco V |
| Type (Engine) | 5.0 V8 (188 Hp) AWD Automatic |
| Start of production | 1992 |
| End of production | 1996 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (economy) – urban | 18.1 l/100 km (13 US mpg, 15.6 UK mpg, 5.5 km/l) |
| Fuel consumption (economy) – extra urban | 13.8 l/100 km (17 US mpg, 20.5 UK mpg, 7.2 km/l) |
| Fuel consumption (economy) – combined | 16.8 l/100 km (14 US mpg, 16.8 UK mpg, 6 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Power | 188 Hp @ 3800 rpm |
| Power per litre | 38 Hp/l |
| Torque | 366 Nm @ 2400 rpm (269.95 lb.-ft. @ 2400 rpm) |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 302 |
| Engine displacement | 4942 cm3 (301.58 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 101.6 mm (4 in.) |
| Piston Stroke | 76.2 mm (3 in.) |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 4.7 l (4.97 US qt | 4.14 UK qt) |
| Coolant | 13 l (13.74 US qt | 11.44 UK qt) |
| Max. weight | 2050 kg (4519.48 lbs.) |
| Trunk (boot) space – minimum | 917 l (32.38 cu. ft.) |
| Trunk (boot) space – maximum | 1857 l (65.58 cu. ft.) |
| Fuel tank capacity | 121 l (31.96 US gal | 26.62 UK gal) |
| Length | 4663 mm (183.58 in.) |
| Width | 2009 mm (79.09 in.) |
| Height | 1892 mm (74.49 in.) |
| Wheelbase | 2659 mm (104.69 in.) |
| Front track | 1654 mm (65.12 in.) |
| Rear (Back) track | 1636 mm (64.41 in.) |
| Drag coefficient (Cd) | 0.60 |
| Minimum turning circle (turning diameter) | 11.4 m (37.4 ft.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Several levers and rods |
| Rear suspension | Leaf spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Tires size | 235/75 R15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of the Bronco V 5.0 was the Ford 302 cubic inch (4.9 liter) small-block V8 engine. This engine, internally designated as the 302, was a staple of Ford’s lineup for decades, known for its durability and relatively simple design. The 1992-1996 Bronco V version produced 188 horsepower at 3800 rpm and 366 Nm (269.95 lb-ft) of torque at 2400 rpm. It featured a 9:1 compression ratio and utilized a multi-port fuel injection system, a significant upgrade over earlier carbureted versions. The engine employed an overhead camshaft (OHC) valvetrain with two valves per cylinder. The engine was mounted longitudinally in the chassis. The automatic transmission used was a four-speed unit, providing smooth shifts but lacking the direct control offered by a manual transmission.
Driving Characteristics
The 5.0-liter V8 significantly altered the driving experience compared to the base inline-six Bronco. Acceleration was noticeably improved, making highway merging and passing maneuvers much easier. While not a sports car, the V8 provided ample power for both on-road and off-road driving. The automatic transmission, while convenient, did result in some power loss compared to a manual transmission. The gear ratios were tuned for a balance of torque and fuel economy, but the Bronco V 5.0 was not known for its fuel efficiency, averaging around 14 mpg in combined driving. The all-wheel-drive system provided excellent traction in various conditions, making it a capable off-road vehicle.
Equipment & Trim Levels
The Bronco V 5.0 typically came standard with features such as air conditioning, power steering, and a basic audio system. Interior upholstery was typically cloth, though leather options were available. The dashboard layout was functional and straightforward, prioritizing usability over luxury. Optional extras included a premium sound system, upgraded interior trim, and various off-road accessories like a winch or upgraded suspension components. The Bronco V 5.0 often featured a more robust suspension setup compared to the base models, designed to handle the increased weight and power of the V8 engine.
Chassis & Braking
The Bronco V 5.0 utilized a body-on-frame construction, providing a rugged and durable platform. The front suspension consisted of several levers and rods, while the rear suspension employed leaf springs, a traditional design known for its load-carrying capacity. The braking system featured disc brakes on the front wheels and drum brakes on the rear. An anti-lock braking system (ABS) was included as standard equipment, enhancing safety and control. The tires were typically 235/75 R15, providing a good balance of on-road comfort and off-road traction.
Market Reception & Comparison
The Bronco V 5.0 was generally well-received by automotive critics, who praised its powerful engine and capable off-road performance. However, its fuel economy was a common criticism. Compared to the inline-six Bronco models, the V8 offered a significant performance boost but came at the cost of increased fuel consumption and a higher price tag. The V8 Bronco also differed from the higher-performance Bronco models that would emerge later, focusing more on a balance of power and usability rather than extreme off-road capability.
Legacy
The Ford Bronco V 5.0 V8 remains a popular choice among collectors and enthusiasts today. The 302 engine is known for its reliability and ease of maintenance, making it a relatively affordable classic SUV to own. While fuel economy is still a concern, the Bronco V 5.0 offers a unique combination of power, capability, and classic American styling. The availability of aftermarket parts and upgrades ensures that these Broncos can be easily customized and maintained for years to come. The Bronco V 5.0 represents a significant moment in the Bronco’s history, bridging the gap between the older, more utilitarian models and the modern, highly capable SUVs that followed.
