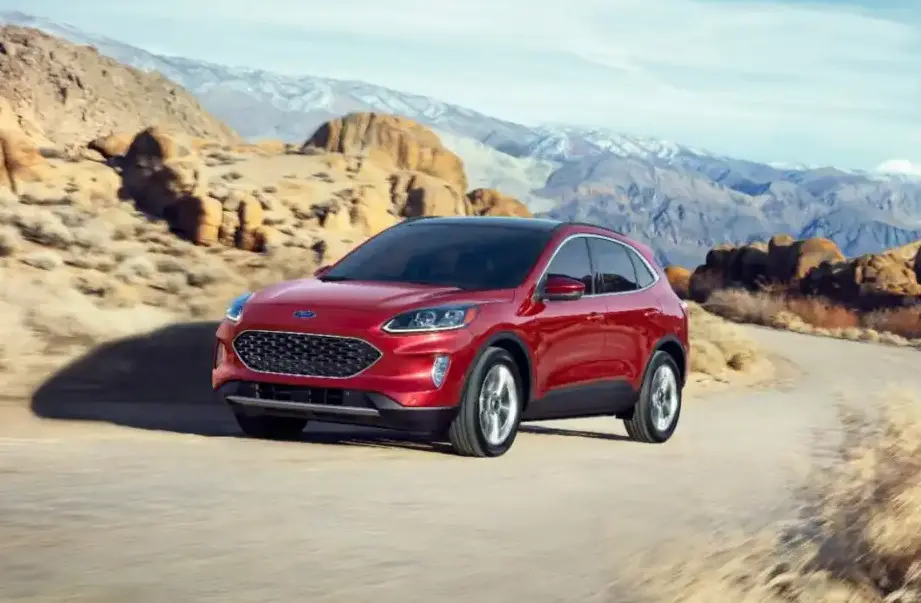

The Ford Escape IV 2.5 Hybrid, produced from 2020 to 2022, represents Ford’s entry into a more fuel-efficient era of compact SUVs. Positioned as a mid-range offering within the fourth generation Escape lineup (introduced in 2020), this variant combined a 2.5-liter inline-four gasoline engine with an electric motor and a continuously variable transmission (eCVT) to deliver a full hybrid experience. It aimed to appeal to buyers seeking improved fuel economy without sacrificing the practicality and space of a traditional SUV. The Escape IV itself was a significant redesign, moving away from the more rounded styling of the previous generation and adopting a sleeker, more modern aesthetic. This model played a key role in Ford’s strategy to expand its hybrid and electric vehicle offerings in the North American market.
Technical Specifications
| Brand | Ford |
| Model | Escape |
| Generation | Escape IV |
| Type (Engine) | 2.5 (200 Hp) Hybrid eCVT |
| Start of production | 2020 |
| End of production | 2022 |
| Powertrain Architecture | FHEV (Full Hybrid Electric Vehicle) |
| Body type | SUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 5.3 l/100 km (44.4 US mpg) |
| Fuel consumption (extra urban) | 6.4 l/100 km (36.8 US mpg) |
| Fuel consumption (combined) | 5.7 l/100 km (41.3 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Weight-to-power ratio | 8.1 kg/Hp |
| Weight-to-torque ratio | 7.7 kg/Nm |
| Gross battery capacity | 1.1 kWh |
| Battery technology | Lithium-ion (Li-Ion) |
| Electric motor power | 120 Hp |
| System power | 200 Hp @ 6250 rpm |
| Engine Power | 162 Hp |
| Torque | 210 Nm @ 4500 rpm (154.89 lb.-ft. @ 4500 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 2491 cm3 (152.01 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 88.9 mm (3.5 in.) |
| Piston Stroke | 100.08 mm (3.94 in.) |
| Compression ratio | 13:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC, IVCT |
| Engine oil capacity | 5.4 l (5.71 US qt | 4.75 UK qt) |
| Coolant capacity | 9.1 l (9.62 US qt | 8.01 UK qt) |
| Kerb Weight | 1612 kg (3553.85 lbs.) |
| Trunk (boot) space – minimum | 869 l (30.69 cu. ft.) |
| Trunk (boot) space – maximum | 1722 l (60.81 cu. ft.) |
| Fuel tank capacity | 54 l (14.27 US gal | 11.88 UK gal) |
| Length | 4585 mm (180.51 in.) |
| Width | 1882 mm (74.09 in.) |
| Width with mirrors folded | 1999 mm (78.7 in.) |
| Width including mirrors | 2174 mm (85.59 in.) |
| Height | 1679 mm (66.1 in.) |
| Wheelbase | 2710 mm (106.69 in.) |
| Front track | 1585 mm (62.4 in.) |
| Rear track | 1570 mm (61.81 in.) |
| Drive wheel | Front wheel drive |
| Number of gears | automatic transmission eCVT |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Disc |
| Rear brakes | Disc |
| Tires size | 225/65 R17 102H |
| Wheel rims size | 17 |
Powertrain & Engine Architecture
The heart of the Escape IV 2.5 Hybrid is a 2.5-liter Atkinson-cycle inline-four engine, designated as part of the Ford Gen IV engine family. This engine produces 162 horsepower and 155 lb-ft of torque. The Atkinson cycle prioritizes efficiency over outright power, achieving this by delaying the closing of the intake valves, allowing for more complete combustion. Supplementing the gasoline engine is a permanent magnet synchronous electric motor, capable of generating 120 horsepower and providing electric drive capability. The combined system output is rated at 200 horsepower and 210 lb-ft of torque. The eCVT (electronically controlled continuously variable transmission) seamlessly blends the power from both sources, optimizing for fuel efficiency or performance as needed. The 1.1 kWh lithium-ion battery pack is located under the rear seats, minimizing impact on passenger or cargo space. The hybrid system operates in various modes, including electric-only, gasoline-only, and a combined mode, automatically switching between them based on driving conditions and battery charge level.
Driving Characteristics
The 2.5-liter hybrid powertrain delivers a noticeably different driving experience compared to the turbocharged EcoBoost engines offered in other Escape trims. While not as quick off the line as the EcoBoost models, the hybrid provides smooth and linear acceleration. The eCVT, while efficient, lacks the traditional gear changes of a conventional automatic, which some drivers may find unusual. The electric motor provides instant torque, contributing to responsive acceleration at lower speeds. In city driving, the hybrid system frequently operates in electric-only mode, resulting in near-silent operation and excellent fuel economy. On the highway, the engine and electric motor work in tandem, providing adequate power for merging and passing. The overall driving experience is geared towards comfort and efficiency rather than sporty performance.
Equipment & Trim Levels
The 2.5-liter Hybrid was typically offered in SEL and Titanium trim levels. The SEL trim included standard features such as Ford’s SYNC 3 infotainment system with an 8-inch touchscreen, Apple CarPlay and Android Auto compatibility, automatic climate control, and a suite of driver-assistance technologies including lane-keeping assist and pre-collision assist with automatic emergency braking. The Titanium trim added features like leather upholstery, a larger 12.3-inch digital instrument cluster, a premium audio system, and hands-free power liftgate. Optional extras included adaptive cruise control, a panoramic sunroof, and navigation system.
Chassis & Braking
The Escape IV utilizes a front-wheel-drive platform with independent suspension on all four corners. The front suspension employs a McPherson strut design, while the rear features a multi-link setup. Both suspensions incorporate coil springs and anti-roll bars to minimize body roll during cornering. Disc brakes are standard on all four wheels, providing adequate stopping power. The hybrid variant’s added weight due to the battery pack and electric motor necessitates a slightly firmer suspension tuning compared to the standard gasoline models. Regenerative braking is integrated into the system, capturing energy during deceleration and converting it back into electricity to recharge the battery.
Market Reception & Comparison
The Ford Escape IV 2.5 Hybrid was generally well-received by critics for its fuel efficiency and comfortable ride. However, some reviewers noted that its acceleration was not as brisk as that of the EcoBoost models. Compared to the 1.5L EcoBoost engine, the hybrid offered significantly better fuel economy, but at a higher initial cost. Against competitors like the Toyota RAV4 Hybrid and Honda CR-V Hybrid, the Escape Hybrid offered a competitive fuel economy and feature set, but often lagged slightly in terms of overall refinement and resale value. Reliability reports have been generally positive, with few major issues reported with the hybrid powertrain.
Legacy
The Ford Escape IV 2.5 Hybrid represents a significant step forward in Ford’s commitment to electrification. The powertrain, while not without its quirks, proved to be reliable and fuel-efficient. On the used car market, these models hold their value reasonably well, particularly those equipped with the higher Titanium trim level. The Escape Hybrid helped to establish Ford as a viable contender in the increasingly competitive hybrid SUV segment, paving the way for future electrified models. The eCVT transmission, while sometimes criticized for its lack of traditional gear changes, has proven to be durable and requires minimal maintenance.
