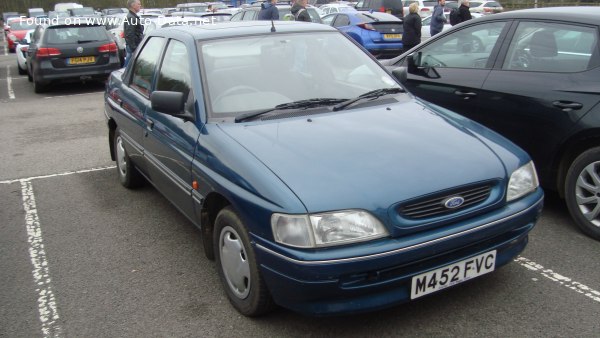

The Ford Escort VI (GAL) 1.3, produced between 1992 and 1995, represented the entry point into the sixth generation of Ford’s long-running Escort family. Positioned as an affordable and economical option, this variant played a crucial role in maintaining the Escort’s popularity in European markets, particularly as a practical family saloon. It was part of the GAL platform generation, which saw significant updates to the Escort’s styling and mechanical components compared to its predecessor. The 1.3-liter engine and five-speed manual transmission combination aimed to deliver reasonable fuel efficiency and acceptable performance for everyday driving, making it a common sight on European roads.
Technical Specifications
| Brand | Ford |
| Model | Escort |
| Generation | Escort VI (GAL) |
| Type (Engine) | 1.3 (60 Hp) |
| Start of production | 1992 |
| End of production | 1995 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (combined) | 6.9 l/100 km (34.1 US mpg, 40.9 UK mpg, 14.5 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 17.7 sec |
| Acceleration 0 – 62 mph | 17.7 sec |
| Acceleration 0 – 60 mph | 16.8 sec |
| Maximum speed | 153 km/h (95.07 mph) |
| Weight-to-power ratio | 17.1 kg/Hp, 58.5 Hp/tonne |
| Weight-to-torque ratio | 10.1 kg/Nm, 98.5 Nm/tonne |
| Power | 60 Hp @ 5000 rpm |
| Power per litre | 46.2 Hp/l |
| Torque | 101 Nm @ 2500 rpm (74.49 lb.-ft. @ 2500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | J6A, J4B |
| Engine displacement | 1299 cm3 (79.27 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 74 mm (2.91 in.) |
| Piston Stroke | 75.5 mm (2.97 in.) |
| Compression ratio | 8.8:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Single-point injection |
| Engine aspiration | Naturally aspirated engine |
| Engine oil capacity | 3.25 l (3.43 US qt | 2.86 UK qt) |
| Coolant | 7.1 l (7.5 US qt | 6.25 UK qt) |
| Kerb Weight | 1025 kg (2259.74 lbs.) |
| Max. weight | 1500 kg (3306.93 lbs.) |
| Max load | 475 kg (1047.2 lbs.) |
| Trunk (boot) space – minimum | 490 l (17.3 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4229 mm (166.5 in.) |
| Width | 1690 mm (66.54 in.) |
| Height | 1397 mm (55 in.) |
| Wheelbase | 2525 mm (99.41 in.) |
| Front track | 1440 mm (56.69 in.) |
| Rear (Back) track | 1462 mm (57.56 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R13 |
Powertrain & Engine Architecture
The heart of the Escort VI 1.3 was the Ford J6A or J4B engine, a 1.3-liter inline-four cylinder petrol engine. This engine was a relatively simple design, utilizing a single overhead camshaft (SOHC) and two valves per cylinder. The fuel system employed single-point fuel injection, a cost-effective solution that delivered fuel into the intake manifold rather than directly into the cylinders. This contrasted with the multi-point injection systems found in higher-spec Escort models. The engine produced 60 horsepower at 5000 rpm and 101 Nm (74.49 lb-ft) of torque at 2500 rpm. The five-speed manual transmission was the standard offering, providing a reasonable spread of gears for both urban and highway driving. The transmission was chosen for its durability and cost-effectiveness, rather than outright performance.
Driving Characteristics
The 1.3-liter Escort was not known for its blistering performance. Acceleration from 0-60 mph took around 16.8 seconds, and the top speed was approximately 95 mph. However, the engine was reasonably tractable, offering sufficient power for everyday commuting and light loads. The gear ratios in the five-speed manual transmission were geared towards economy, with taller ratios in the upper gears. This resulted in a relatively quiet and fuel-efficient cruising experience, but required frequent downshifts when overtaking or climbing hills. Compared to the more powerful 1.6-liter and 1.8-liter versions, the 1.3 felt noticeably slower, but it offered a more forgiving and economical driving experience.
Equipment & Trim Levels
The 1.3-liter Escort typically came with a basic level of equipment. Standard features generally included central locking, power steering, and a basic stereo system. Interior upholstery was typically cloth, and the dashboard featured a simple, functional design. Optional extras included electric front windows, a sunroof, and upgraded stereo systems. The trim level was generally considered the entry-level offering, aimed at buyers prioritizing affordability and practicality over luxury and performance. It was often chosen by first-time car buyers or those seeking a reliable and economical family vehicle.
Chassis & Braking
The Escort VI utilized a front-wheel-drive layout with independent front suspension (wishbone) and a coil spring rear suspension. The braking system consisted of disc brakes on the front wheels and drum brakes on the rear. ABS (Anti-lock Braking System) was often included as standard equipment, enhancing safety. The suspension setup was tuned for comfort and ride quality, rather than sporty handling. The relatively light weight of the 1.3-liter model helped to mitigate the limitations of the braking system, providing adequate stopping power for everyday driving conditions.
Market Reception & Comparison
The Escort VI 1.3 was generally well-received as an affordable and reliable family car. Critics praised its fuel efficiency and practicality, but noted its lack of performance. Compared to the higher-spec Escort models, such as the 1.6 and 1.8, the 1.3 offered significantly lower running costs but at the expense of driving enjoyment. The 1.9 TDI diesel version, while more expensive to purchase, offered superior fuel economy and torque, making it a popular choice for high-mileage drivers. However, the 1.3 remained a popular choice for those seeking a budget-friendly and dependable vehicle.
Legacy
The Ford Escort VI 1.3, while not a performance icon, proved to be a durable and reliable vehicle. The J6A/J4B engine, despite its simplicity, was generally known for its longevity, provided it was properly maintained. Today, these Escorts are relatively common in the used car market, often available at very affordable prices. They represent a practical and economical option for those seeking a classic Ford saloon, and their simple mechanical design makes them relatively easy to maintain and repair. The 1.3-liter engine, while underpowered by modern standards, continues to provide reliable transportation for those who appreciate its simplicity and fuel efficiency.
