Technical Specifications
| Brand | Ford |
| Model | Escort |
| Generation | Escort VII Hatch (GAL, AFL) |
| Type (Engine) | 1.3 i (60 Hp) |
| Start of production | 1995 |
| End of production | 1999 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3/5 |
| Fuel consumption (combined) | 6.6 l/100 km (35.6 US mpg, 42.8 UK mpg, 15.2 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 16.8 sec |
| Acceleration 0 – 62 mph | 16.8 sec |
| Acceleration 0 – 60 mph | 16 sec |
| Maximum speed | 154 km/h (95.69 mph) |
| Weight-to-power ratio | 16.8 kg/Hp, 59.7 Hp/tonne |
| Weight-to-torque ratio | 9.8 kg/Nm, 102.5 Nm/tonne |
| Power | 60 Hp @ 5000 rpm |
| Power per litre | 46.2 Hp/l |
| Torque | 103 Nm @ 2500 rpm (75.97 lb.-ft. @ 2500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | J4B, J6A |
| Engine displacement | 1299 cm3 (79.27 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 74 mm (2.91 in.) |
| Piston Stroke | 75.5 mm (2.97 in.) |
| Compression ratio | 9.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 3.25 l (3.43 US qt | 2.86 UK qt) |
| Coolant | 7.1 l (7.5 US qt | 6.25 UK qt) |
| Kerb Weight | 1005 kg (2215.65 lbs.) |
| Max. weight | 1515 kg (3340 lbs.) |
| Max load | 510 kg (1124.36 lbs.) |
| Trunk (boot) space – minimum | 380 l (13.42 cu. ft.) |
| Trunk (boot) space – maximum | 735 l (25.96 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4104 mm (161.57 in.) |
| Width | 1691 mm (66.57 in.) |
| Height | 1398 mm (55.04 in.) |
| Wheelbase | 2525 mm (99.41 in.) |
| Front track | 1440 mm (56.69 in.) |
| Rear (Back) track | 1462 mm (57.56 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Wishbone |
| Rear suspension | Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Tires size | 175/70 R13 T |

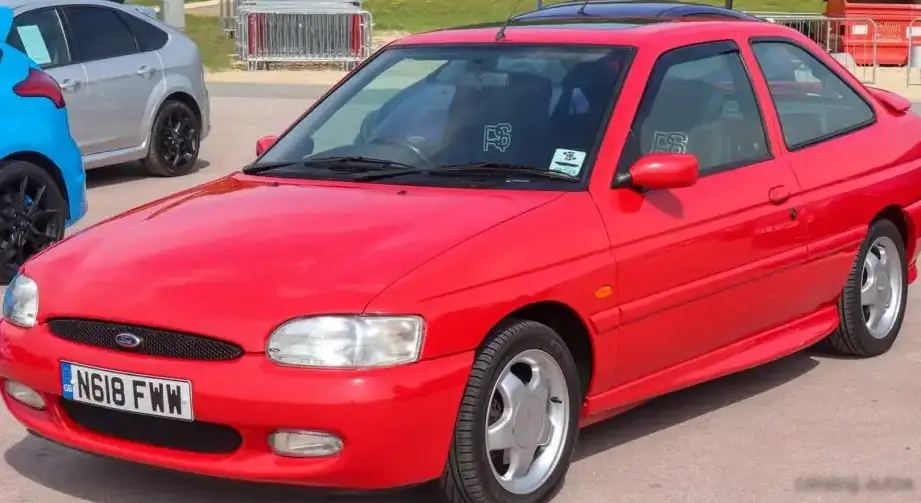

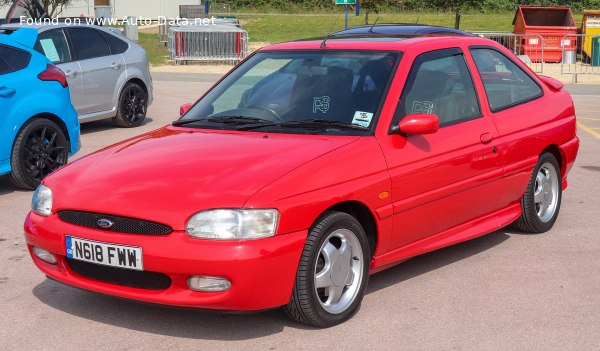

The Ford Escort VII Hatch, produced between 1995 and 1999, marked a significant step forward in Ford’s long-running Escort lineage. Within the GAL (3-door) and AFL (5-door) chassis codes, the 1.3 i model, producing 60 horsepower, served as the entry point to the range. Designed as an affordable and economical option, it appealed to buyers who prioritized fuel efficiency and practicality over outright performance. This generation of Escort was primarily targeted at the European market, where compact hatchbacks were, and remain, incredibly popular. The 1.3L engine paired with a manual transmission was a common sight, offering a balance between cost and usability.
Powertrain & Engine Architecture
The core of the Escort VII 1.3 i was the Ford J4B or J6A engine, a 1.3-liter inline-four cylinder unit. This engine, evolving from Ford’s earlier overhead valve (OHV) designs, featured an overhead camshaft (OHC) valvetrain operating two valves per cylinder. The J4B/J6A engines employed multi-port fuel injection, a substantial improvement over previous carburetor systems, resulting in improved fuel economy and smoother operation. The 9.5:1 compression ratio was standard for the period, striking a balance between performance and efficiency. Coupled with a five-speed manual transmission, the powertrain was engineered for economy and ease of use. The transmission itself was a conventional design, emphasizing durability and affordability over a sporty shift feel.
Driving Characteristics
The 60 horsepower output of the 1.3L engine delivered modest performance. Acceleration was unhurried, with 0-60 mph taking approximately 16 seconds. The engine required being revved to reach its potential, and the five-speed gearbox was frequently used to maintain momentum, particularly when climbing hills or overtaking. Compared to the more powerful 1.6L or 1.8L versions of the Escort VII, the 1.3 i felt noticeably slower. However, the lighter engine weight contributed to a more agile feel in urban driving. The gear ratios were optimized for fuel efficiency rather than speed, providing a comfortable, though not particularly exciting, driving experience.
Equipment & Trim Levels
The 1.3 i generally represented the base trim level of the Escort VII. Standard equipment typically included power steering, central locking, and basic instrumentation. Interior upholstery was usually cloth, with a functional, if somewhat basic, dashboard layout. Optional extras, such as air conditioning, electric windows, and a radio/cassette player, were available, but often increased the vehicle’s price considerably. Safety features were relatively limited for the time, generally consisting of seatbelts and an anti-lock braking system (ABS) on select models.
Chassis & Braking
The Escort VII utilized a front-wheel-drive layout with independent wishbone suspension at the front and a coil spring rear suspension. This configuration provided a reasonable compromise between ride comfort and handling. Braking was achieved through ventilated discs at the front and drum brakes at the rear. ABS was often included as standard, enhancing braking performance and safety. The chassis was designed to be lightweight, contributing to the car’s overall fuel efficiency. Stabilizer bars were present, but were thinner compared to those found on higher-performance Escort models.
Market Reception & Comparison
The Escort VII 1.3 i was generally well-received as an affordable and practical hatchback. Reviewers praised its fuel economy and ease of driving, but noted its lack of performance. Compared to other trims in the Escort lineup, such as the 1.6L or 1.8L models, the 1.3 i offered significantly less power but at a lower purchase price. It competed with other small hatchbacks of the era, including the Volkswagen Polo, Opel/Vauxhall Corsa, and Renault Clio. In terms of reliability, the 1.3L engine was generally considered robust, though regular maintenance was crucial to prevent potential issues.
Legacy
The Ford Escort VII 1.3 i, while not a performance icon, remains a popular choice among classic car enthusiasts and budget-conscious buyers. The J4B/J6A engine is known for its relative simplicity and ease of maintenance, making it a relatively affordable car to maintain. Parts availability is generally good, although some components are becoming increasingly difficult to source. Today, these Escorts are often found as affordable transportation or as project cars for those interested in classic Ford ownership. The 1.3L engine, while not powerful, provides a reliable and economical driving experience, making it a practical choice for everyday use.
