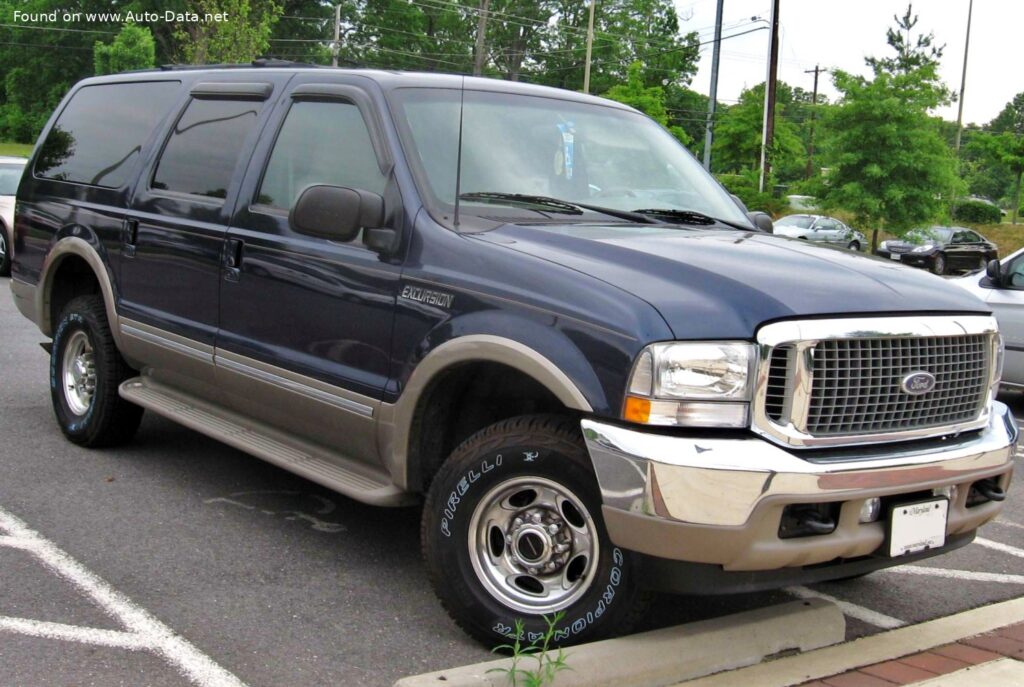

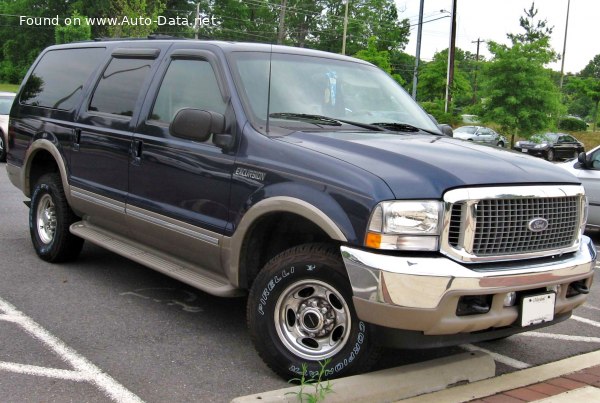

The Ford Excursion 5.4, produced from 2001 to 2005, represented Ford’s entry into the full-size SUV segment, aiming to provide maximum space and towing capacity. Built on a heavily modified Ford Super Duty truck chassis, the Excursion was the largest SUV ever mass-produced by an American manufacturer. The 5.4-liter V8 engine paired with a four-speed automatic transmission was the base powertrain option, positioning it as the more accessible trim level within the Excursion lineup, appealing to buyers prioritizing size and capability over outright performance. It served as a competitor to the Chevrolet Suburban and GMC Yukon XL, offering a substantial alternative for those needing to haul large families or substantial cargo.
Technical Specifications
| Brand | Ford |
| Model | Excursion |
| Generation | Excursion |
| Type (Engine) | 5.4 (263 Hp) 4WD Automatic |
| Start of production | 2001 year |
| End of production | 2005 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 8-9 |
| Doors | 5 |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 153 km/h (95.07 mph) |
| Weight-to-power ratio | 12.6 kg/Hp, 79.1 Hp/tonne |
| Weight-to-torque ratio | 7 kg/Nm, 142.6 Nm/tonne |
| Power | 263 Hp @ 4500 rpm |
| Power per litre | 48.7 Hp/l |
| Torque | 474 Nm @ 2500 rpm (349.6 lb.-ft. @ 2500 rpm) |
| Engine layout | Front, Longitudinal |
| Engine displacement | 5398 cm3 (329.41 cu. in.) |
| Number of cylinders | 8 |
| Engine configuration | V-engine |
| Cylinder Bore | 90.2 mm (3.55 in.) |
| Piston Stroke | 105.7 mm (4.16 in.) |
| Compression ratio | 9:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine oil capacity | 5.7 l (6.02 US qt | 5.02 UK qt) |
| Coolant | 25 l (26.42 US qt | 22 UK qt) |
| Kerb Weight | 3325 kg (7330.37 lbs.) |
| Max. weight | 4037 kg (8900.06 lbs.) |
| Max load | 712 kg (1569.69 lbs.) |
| Trunk (boot) space – minimum | 1359 l (47.99 cu. ft.) |
| Trunk (boot) space – maximum | 4146 l (146.41 cu. ft.) |
| Fuel tank capacity | 167 l (44.12 US gal | 36.73 UK gal) |
| Length | 5758 mm (226.69 in.) |
| Width | 2032 mm (80 in.) |
| Height | 2034 mm (80.08 in.) |
| Wheelbase | 3482 mm (137.09 in.) |
| Front track | 1737 mm (68.39 in.) |
| Rear (Back) track | 1730 mm (68.11 in.) |
| Drive wheel | All wheel drive (4×4) |
| Number of gears and type of gearbox | 4 gears, automatic transmission |
| Front suspension | Leaf spring |
| Rear suspension | Leaf spring |
| Front brakes | Ventilated discs |
| Rear brakes | Ventilated discs |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Worm-reduction unit |
| Power steering | Hydraulic Steering |
| Tires size | 265/75 R16 |
Powertrain & Engine Architecture
The heart of the Excursion 5.4 was the 5.4-liter Triton V8 engine, a member of Ford’s modular engine family. This engine, designated as the 5.4L SOHC, featured a single overhead camshaft design and a 9:1 compression ratio. It utilized multi-port fuel injection to deliver fuel to the cylinders. The engine’s architecture prioritized low-end torque, making it suitable for towing and hauling. The 4R70W four-speed automatic transmission was the sole transmission option for this variant. This transmission was known for its durability but lacked the efficiency of more modern transmissions with additional gears. The transmission was electronically controlled, adapting shift points based on throttle position and vehicle speed.
Driving Characteristics
The Excursion 5.4, while capable, wasn’t known for its brisk acceleration. The combination of a heavy vehicle weight and a relatively modest 263 horsepower resulted in a 0-60 mph time of around 9-10 seconds. The 4R70W transmission’s gear ratios were optimized for towing, meaning that the engine often operated at higher RPMs during highway cruising. Compared to the available 6.8-liter V10 engine, the 5.4-liter offered significantly less power and a slower overall driving experience. However, the 5.4-liter provided better fuel economy, albeit still relatively poor by modern standards. The leaf spring suspension, while robust, delivered a firm ride, particularly when unladen.
Equipment & Trim Levels
The Excursion 5.4 typically came standard with features like air conditioning, power windows and locks, and an AM/FM stereo. Higher trim levels, such as the Limited, added features like leather upholstery, heated seats, a premium sound system, and automatic climate control. Optional extras included a DVD entertainment system, a sunroof, and various towing packages. The interior design was functional and spacious, prioritizing practicality over luxury. The base trim focused on providing essential features at a lower price point, while the higher trims offered a more refined experience.
Chassis & Braking
The Excursion’s chassis was based on the Ford Super Duty truck platform, featuring a robust frame and heavy-duty suspension components. Both the front and rear suspensions utilized leaf springs, designed to handle substantial loads. The braking system consisted of ventilated discs on all four wheels, coupled with an Anti-lock Braking System (ABS). Due to the vehicle’s weight, braking distances were longer compared to lighter SUVs. The steering system employed a worm-reduction unit with hydraulic power assist, providing a stable but somewhat indirect steering feel.
Market Reception & Comparison
The Excursion 5.4 received mixed reviews. Critics praised its immense size and towing capacity but criticized its poor fuel economy and cumbersome handling. Compared to the V10-powered Excursion, the 5.4-liter model was seen as underpowered for such a large vehicle. However, it offered a more affordable entry point into the Excursion lineup. Fuel economy averaged around 12-14 mpg in city driving and 16-18 mpg on the highway, significantly lower than competing SUVs with smaller engines. Reliability was generally good, but the 4R70W transmission could be prone to issues if not properly maintained.
Legacy
The Ford Excursion, despite its short production run, left a lasting impression as the largest SUV ever produced. The 5.4-liter engine, while not the most powerful option, proved to be relatively reliable when properly maintained. Today, the Excursion 5.4 is a sought-after vehicle among those needing a large, capable SUV for towing or hauling. Its value in the used car market is influenced by condition, mileage, and trim level. While fuel economy remains a concern, the Excursion’s sheer size and capability continue to appeal to a niche market. The Excursion’s legacy is one of excess and capability, representing a unique chapter in American automotive history.
