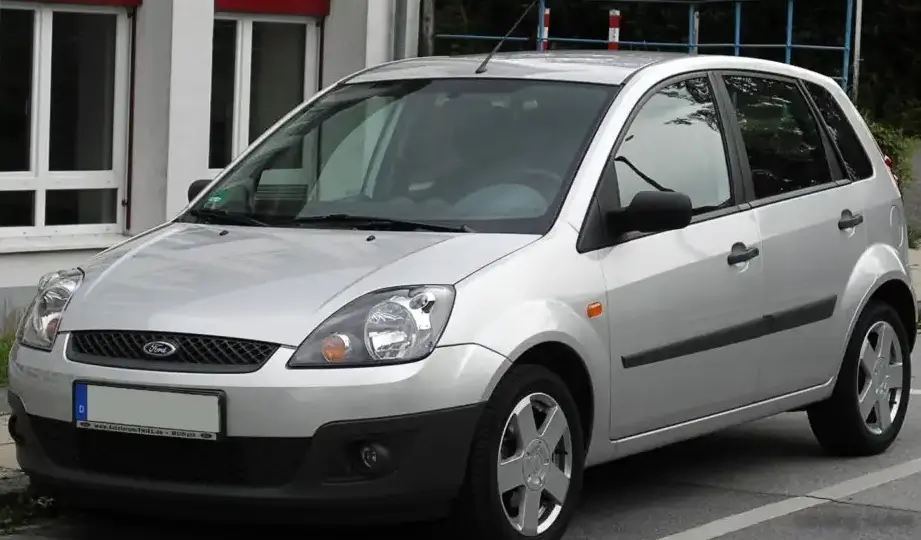

The Ford Fiesta Mk6, specifically the five-door model powered by the 1.6 Duratorq TDCi engine producing 90 horsepower, was a significant offering in the European small car market from 2005 to 2008. This variant represented a fuel-efficient and practical option within the Mk6 Fiesta range, which itself was a facelift of the earlier Mk5 generation (introduced in 2002). Positioned as a mid-range trim, it aimed to balance affordability with reasonable performance and equipment levels. The Mk6 Fiesta, built on the B3 platform, was a crucial model for Ford in Europe, competing directly with vehicles like the Volkswagen Polo, Renault Clio, and Opel Corsa.
Technical Specifications
| Brand | Ford |
| Model | Fiesta |
| Generation | Fiesta VI (Mk6, facelift 2005) 5 door |
| Type (Engine) | 1.6 Duratorq TDCi (90 Hp) |
| Start of production | 2005 |
| End of production | 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 5.2 l/100 km (45.2 US mpg, 54.3 UK mpg, 19.2 km/l) |
| Fuel consumption (extra urban) | 3.9 l/100 km (60.3 US mpg, 72.4 UK mpg, 25.6 km/l) |
| Fuel consumption (combined) | 4.4 l/100 km (53.5 US mpg, 64.2 UK mpg, 22.7 km/l) |
| CO2 emissions | 116 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.9 sec |
| Acceleration 0 – 62 mph | 11.9 sec |
| Acceleration 0 – 60 mph | 11.2 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 12.1 kg/Hp, 82.9 Hp/tonne |
| Weight-to-torque ratio | 5.3 kg/Nm, 187.8 Nm/tonne |
| Power | 90 Hp @ 4000 rpm |
| Power per litre | 64.3 Hp/l |
| Torque | 204 Nm @ 1750 rpm (150.46 lb.-ft. @ 1750 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | HHJA, HHJB |
| Engine displacement | 1399 cm3 (85.37 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 3.85 l (4.07 US qt, 3.39 UK qt) |
| Coolant capacity | 6 l (6.34 US qt, 5.28 UK qt) |
| Kerb Weight | 1086 kg (2394.22 lbs) |
| Max. weight | 1615 kg (3560.47 lbs) |
| Max load | 529 kg (1166.25 lbs) |
| Trunk (boot) space – minimum | 284 l (10.03 cu. ft.) |
| Trunk (boot) space – maximum | 947 l (33.44 cu. ft.) |
| Fuel tank capacity | 43 l (11.36 US gal, 9.46 UK gal) |
| Max. roof load | 75 kg (165.35 lbs) |
| Permitted trailer load with brakes (12%) | 750 kg (1653.47 lbs) |
| Length | 3918 mm (154.25 in) |
| Width | 1685 mm (66.34 in) |
| Width including mirrors | 1907 mm (75.08 in) |
| Height | 1464 mm (57.64 in) |
| Wheelbase | 2486 mm (97.87 in) |
| Front track | 1464-1474 mm (57.64 – 58.03 in) |
| Rear track | 1435-1444 mm (56.5 – 56.85 in) |
| Minimum turning circle | 9.3 m (30.51 ft) |
| Drivetrain | Front wheel drive |
| Number of gears | 5 |
| Gearbox type | Manual transmission |
| Front suspension | Independent type McPherson, Transverse stabilizer |
| Rear suspension | Coil spring, Elastic beam |
| Front brakes | Disc |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 195/50 R 15 |
| Wheel rims size | 15 |
Powertrain & Engine Architecture
The heart of this Fiesta variant is the 1.6-liter Duratorq TDCi diesel engine, specifically the HHJA or HHJB engine code depending on minor specification differences. This engine is a four-cylinder, inline configuration with a double overhead camshaft (DOHC) and four valves per cylinder. It utilizes a common rail direct injection system, delivering fuel at extremely high pressure for optimized combustion. A turbocharger with an intercooler is employed to boost power and torque, providing a noticeable improvement over naturally aspirated diesel engines. The engine’s 1399cc displacement and turbocharging allowed it to produce 90 horsepower at 4000 rpm and a respectable 204 Nm (150.46 lb-ft) of torque at just 1750 rpm. This torque output, available at low engine speeds, was a key characteristic of the Duratorq engine family. The engine paired with a five-speed manual transmission, delivering power to the front wheels.
Driving Characteristics
The 1.6 Duratorq TDCi 90 hp Fiesta offered a practical and economical driving experience. While not particularly sporty, the engine provided sufficient power for everyday driving, including highway cruising. The relatively high torque output meant that the car felt responsive in most situations, and overtaking maneuvers were achievable without excessive downshifting. The five-speed manual transmission was well-matched to the engine’s characteristics, with gear ratios designed to maximize fuel efficiency and provide adequate acceleration. Compared to the higher-output 1.6 TDCi variants (often around 115 hp), this version felt less eager to rev, but it offered significantly better fuel economy. Against petrol-powered Fiestas of similar age, the diesel offered superior fuel efficiency and torque, but typically lacked the responsiveness and refinement of the gasoline engines.
Equipment & Trim Levels
The 1.6 Duratorq TDCi 90 hp Fiesta typically came equipped with features considered standard for a mid-range European hatchback. This included central locking, power steering, electric front windows, and an adjustable steering column. Air conditioning was often an optional extra, as were alloy wheels and a CD player with radio. Interior upholstery was typically cloth, with a functional and durable design. Higher trim levels, such as the Ghia, offered additional features like climate control, upgraded upholstery, and more sophisticated audio systems. Safety features included ABS brakes and driver and passenger airbags.
Chassis & Braking
The Fiesta Mk6 utilized a McPherson strut front suspension and an elastic beam rear suspension. This setup provided a good balance between ride comfort and handling. The front brakes were disc brakes, while the rear brakes were drum brakes – a common configuration for this class of vehicle and weight category. The hydraulic power steering provided light and easy steering, making it well-suited for urban driving. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering.
Market Reception & Comparison
The 1.6 Duratorq TDCi 90 hp Fiesta was generally well-received by automotive critics as a practical and economical choice. Its fuel efficiency was a major selling point, particularly in Europe where diesel fuel was often cheaper than gasoline. However, some reviewers noted that the engine could be somewhat noisy and lacked the refinement of some of its competitors. Compared to the petrol-powered Fiestas, the diesel offered superior fuel economy but a less engaging driving experience. Against rivals like the Volkswagen Polo TDI and Renault Clio dCi, the Fiesta offered a competitive package in terms of price, fuel economy, and practicality.
Legacy
The 1.6 Duratorq TDCi engine proved to be a relatively reliable unit, although like all diesel engines, it required regular maintenance, including oil changes and filter replacements. The common rail injection system could be susceptible to issues if poor quality fuel was used. Today, these Fiestas are relatively affordable on the used car market, making them a popular choice for budget-conscious buyers. Their fuel efficiency and relatively low running costs continue to be attractive features. However, potential buyers should be aware of the age-related wear and tear that is common with older vehicles, and a thorough inspection is recommended before purchase.
