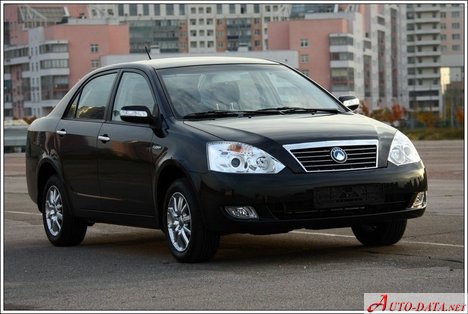

The Geely Vision 1.8 i 16V, produced between 2007 and 2011, represents Geely’s initial foray into a more contemporary sedan design aimed at establishing a stronger presence in the competitive Chinese automotive market. Positioned as a mid-range offering within the Vision lineup, this variant sought to balance affordability with a reasonable level of equipment and performance. It was built upon Geely’s efforts to modernize its image and offer vehicles that could appeal to a broader customer base. The Vision, in general, aimed to provide a comfortable and practical family sedan, and the 1.8L engine was intended to offer a good compromise between fuel economy and usable power.
Technical Specifications
| Brand | Geely |
| Model | Vision |
| Generation | Vision |
| Type (Engine) | 1.8 i 16V (133 Hp) |
| Start of production | 2007 |
| End of production | 2011 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Sedan |
| Seats | 5 |
| Doors | 4 |
| Fuel consumption (urban) | 10.2 l/100 km (23.1 US mpg) |
| Fuel consumption (extra urban) | 5.9 l/100 km (39.9 US mpg) |
| Fuel consumption (combined) | 7.5 l/100 km (31.4 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 185 km/h (114.95 mph) |
| Emission standard | Euro 3 |
| Weight-to-power ratio | 9 kg/Hp |
| Weight-to-torque ratio | 7.3 kg/Nm |
| Power | 133 Hp @ 6200 rpm |
| Power per litre | 74 Hp/l |
| Torque | 165 Nm @ 4200 rpm (121.7 lb.-ft. @ 4200 rpm) |
| Engine layout | Front, Transverse |
| Engine displacement | 1798 cm3 (109.72 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Compression ratio | 9.8:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Kerb Weight | 1200 kg (2645.55 lbs.) |
| Max. weight | 1610 kg (3549.44 lbs.) |
| Max load | 410 kg (903.9 lbs.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4602 mm (181.18 in.) |
| Width | 1725 mm (67.91 in.) |
| Height | 1485 mm (58.46 in.) |
| Wheelbase | 2602 mm (102.44 in.) |
| Front track | 1482 mm (58.35 in.) |
| Rear track | 1462 mm (57.56 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
Powertrain & Engine Architecture
The Geely Vision 1.8 i 16V is powered by a 1798cc inline-four cylinder engine. This engine, internally designated with various codes depending on the specific production run, utilizes a multi-port fuel injection system to deliver fuel to the cylinders. The engine features a double overhead camshaft (DOHC) valvetrain, operating four valves per cylinder, which contributes to improved breathing and overall engine efficiency. The 9.8:1 compression ratio is a typical value for naturally aspirated gasoline engines of this era, balancing performance and fuel economy. The engine’s 133 horsepower peak is achieved at 6200 rpm, while its 165 Nm (121.7 lb-ft) of torque is delivered at 4200 rpm. The engine is transversely mounted in the front of the vehicle, driving the front wheels. The standard transmission for this variant was a five-speed manual gearbox. While an automatic transmission was offered on other Vision models, it was not typically paired with the 1.8L engine.
Driving Characteristics
The 1.8L engine, coupled with the five-speed manual transmission, provided adequate performance for everyday driving. Acceleration was not particularly brisk, but sufficient for merging onto highways and navigating city streets. The gear ratios were tuned for a balance between fuel efficiency and responsiveness. Compared to the higher-output engines available in the Vision range, the 1.8L offered a more relaxed driving experience. The manual transmission allowed for greater driver control, but required more engagement than the automatic options available on other trims. The relatively low weight of the vehicle (1200 kg) helped to mitigate the effects of the engine’s modest power output. The power delivery was linear, with a noticeable increase in torque at around 3000 rpm.
Equipment & Trim Levels
The Geely Vision 1.8 i 16V typically came equipped with a basic level of standard features. These included power windows, central locking, and a basic audio system. Interior upholstery was generally cloth, with a simple dashboard layout. Air conditioning was often included as standard, but could be optional depending on the specific market and production year. Optional extras included alloy wheels, a more advanced audio system, and upgraded interior trim. The trim level for this variant was generally considered to be entry-level or mid-range, appealing to buyers seeking a practical and affordable sedan.
Chassis & Braking
The Geely Vision 1.8 i 16V utilized an independent McPherson strut suspension system at the front, providing a comfortable ride and reasonable handling characteristics. The rear suspension was a semi-independent coil spring setup, which was a cost-effective solution for this class of vehicle. The braking system consisted of disc brakes on all four wheels, providing adequate stopping power. An Anti-lock Braking System (ABS) was included as a standard safety feature. The steering system was a rack and pinion type with hydraulic power assistance, offering a responsive and precise steering feel.
Market Reception & Comparison
The Geely Vision 1.8 i 16V was generally well-received in the Chinese market as a practical and affordable sedan. Critics noted its comfortable ride and reasonable fuel economy. However, some reviewers criticized its lack of refinement and its relatively modest performance compared to competitors. Compared to other trims in the Vision lineup, the 1.8L offered a more economical option, but at the expense of performance. The higher-output engines provided more spirited acceleration, but also consumed more fuel. The 1.8L variant was often seen as a good choice for drivers who prioritized fuel efficiency and affordability over outright performance.
Legacy
The Geely Vision 1.8 i 16V played a significant role in establishing Geely as a credible automotive manufacturer in China. While not known for exceptional reliability or performance, the powertrain proved to be reasonably durable and relatively easy to maintain. In the used car market today, these vehicles are typically available at very affordable prices. Common issues include wear and tear on suspension components and potential problems with the fuel injection system. However, with proper maintenance, these vehicles can still provide reliable transportation. The Vision 1.8 i 16V represents a stepping stone in Geely’s evolution as a car manufacturer, demonstrating its commitment to producing affordable and practical vehicles for the mass market.
