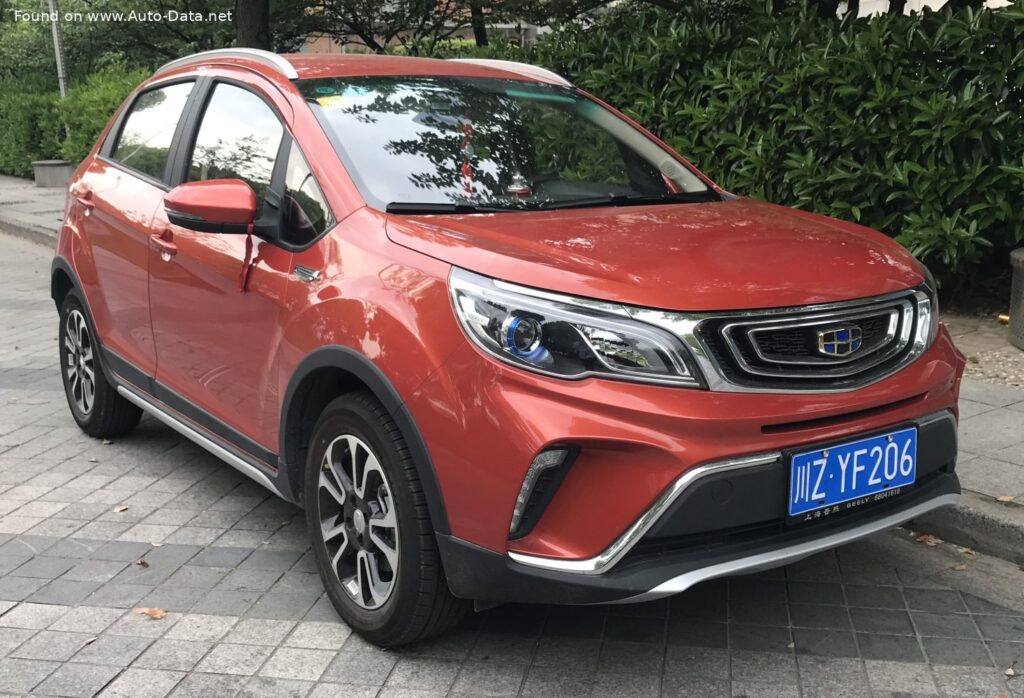

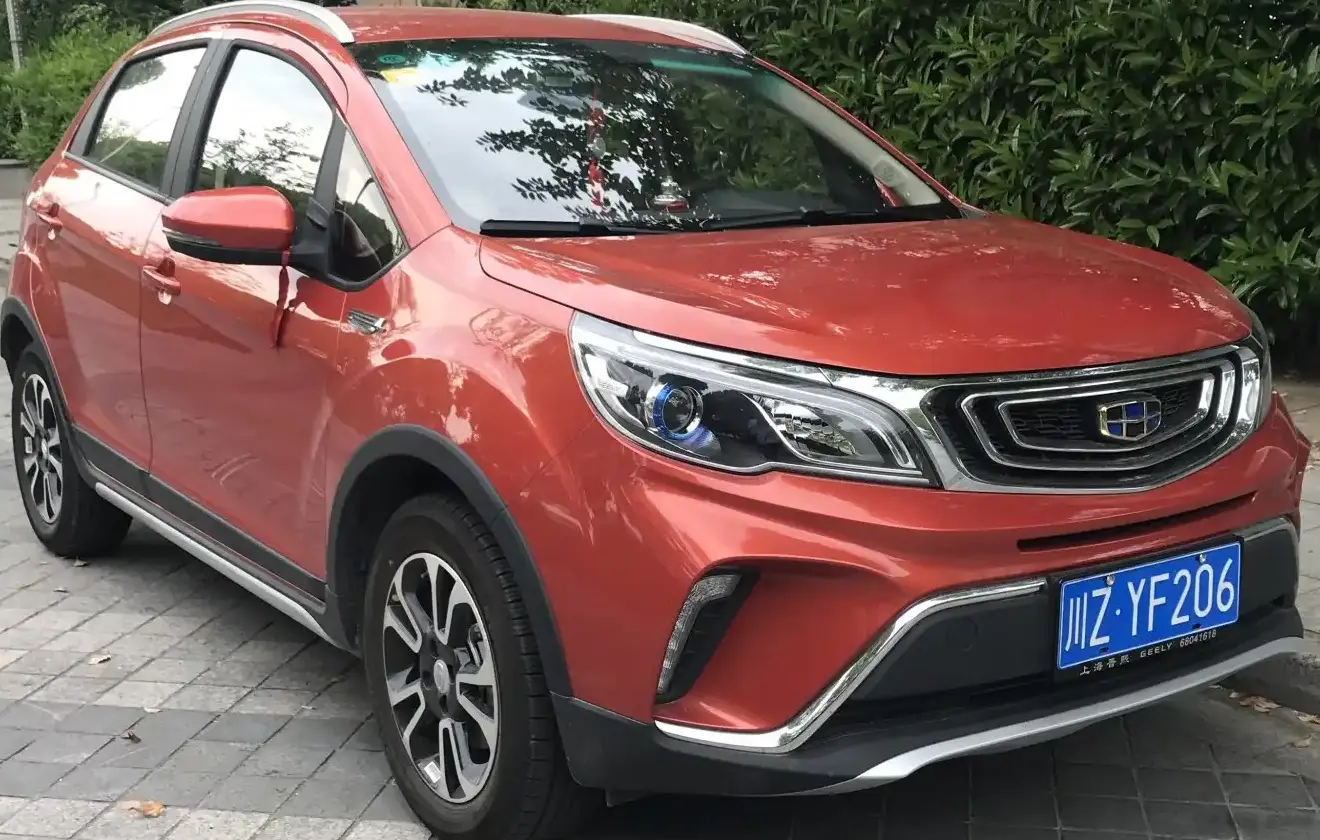

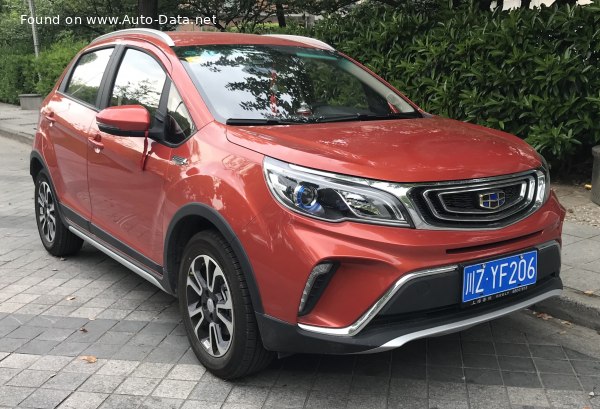

The Geely X3 1.5L, produced from July 2017 to April 2021, represents Geely’s entry into the competitive compact crossover utility vehicle (CUV) segment. Positioned as an affordable and practical option, the X3 aimed to appeal to first-time car buyers and small families in the Chinese market. It was a key model in Geely’s strategy to modernize its lineup and expand its market share. This specific 1.5L variant, producing 102 horsepower, served as the base engine option for the X3, offering a balance between fuel efficiency and acceptable performance for urban driving. While other engine options were not widely available, the 1.5L was the mainstay of the X3 range.
Technical Specifications
| Brand | Geely |
| Model | X3 |
| Generation | X3 |
| Type (Engine) | 1.5L (102 Hp) |
| Start of production | July, 2017 |
| End of production | April, 2021 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | CUV |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (economy) – urban | 8.2 l/100 km (28.7 US mpg) |
| Fuel consumption (economy) – extra urban | 4.4 l/100 km (53.5 US mpg) |
| Fuel consumption (economy) – combined | 5.6 l/100 km (42 US mpg) |
| Fuel Type | Petrol (Gasoline) |
| Emission standard | China V |
| Weight-to-power ratio | 11.6 kg/Hp |
| Weight-to-torque ratio | 8.4 kg/Nm |
| Power | 102 Hp @ 6000 rpm |
| Power per litre | 68.1 Hp/l |
| Torque | 141 Nm @ 3800-4200 rpm (104 lb.-ft. @ 3800-4200 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | JLB-4G15 |
| Engine displacement | 1498 cm3 (91.41 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Number of valves per cylinder | 4 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Kerb Weight | 1180 kg (2601.45 lbs.) |
| Trunk (boot) space – minimum | 400 l (14.13 cu. ft.) |
| Length | 4005 mm (157.68 in.) |
| Width | 1760 mm (69.29 in.) |
| Height | 1575 mm (62.01 in.) |
| Wheelbase | 2480 mm (97.64 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent type McPherson |
| Rear suspension | Torsion |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 205/60 R16 |
| Wheel rims size | 16 |
Powertrain & Engine Architecture
The Geely X3 1.5L is powered by the JLB-4G15 engine, a 1.5-liter inline-four cylinder gasoline engine. This engine utilizes a multi-point fuel injection system, a common setup for vehicles in this class during its production period. The engine’s naturally aspirated design, coupled with four valves per cylinder, contributes to a reasonable balance of power and fuel efficiency. The engine produces a peak output of 102 horsepower at 6000 rpm and 141 Nm (104 lb-ft) of torque between 3800 and 4200 rpm. The engine is transversely mounted at the front of the vehicle, driving the front wheels. The X3 1.5L was exclusively offered with a 5-speed manual transmission, prioritizing affordability and simplicity over more advanced automatic options. This transmission choice reflects the target market’s preference for lower purchase prices and potentially easier maintenance.
Driving Characteristics
The driving experience in the Geely X3 1.5L is best described as adequate for everyday commuting and urban driving. The 102 horsepower engine, while not particularly powerful, provides sufficient acceleration for navigating city streets. The 5-speed manual transmission allows drivers to maintain optimal engine speed for fuel efficiency or to extract more power when needed. However, the X3 1.5L is not designed for spirited driving or frequent highway use. Overtaking maneuvers require careful planning, and the engine can feel strained at higher speeds. The gear ratios are tuned for fuel economy, meaning the engine revs relatively high at highway speeds. Compared to potential higher-output variants (which were not widely available), the 1.5L prioritizes fuel efficiency and affordability over performance.
Equipment & Trim Levels
The Geely X3 1.5L typically came equipped with a basic set of features, reflecting its position as an entry-level CUV. Standard equipment generally included air conditioning, power windows, central locking, and an audio system with basic connectivity options. Interior upholstery was typically cloth, and the dashboard featured a functional but relatively simple design. Optional extras, depending on the market and availability, could include alloy wheels, a rearview camera, and upgraded audio systems. Safety features typically included ABS (Anti-lock Braking System) and airbags, but more advanced safety technologies were generally not available on the base 1.5L trim.
Chassis & Braking
The Geely X3 1.5L utilizes a front-wheel-drive chassis with an independent McPherson strut suspension in the front and a torsion beam suspension in the rear. This suspension setup provides a reasonable level of ride comfort for everyday driving conditions. The front brakes are ventilated discs, offering adequate stopping power, while the rear brakes are solid discs. The steering system is a rack and pinion type with electric power steering, providing light and easy steering feel. The vehicle rides on 205/60 R16 tires, which contribute to a balance of ride comfort and handling.
Market Reception & Comparison
The Geely X3 1.5L was generally well-received in the Chinese market as an affordable and practical CUV. Critics praised its fuel efficiency and spacious interior for its size. However, some reviewers noted the engine’s lack of power and the relatively basic interior appointments. Compared to other CUVs in its class, the X3 1.5L offered a competitive price point but lacked some of the more advanced features and refinement found in rivals. Its fuel economy of around 42 US mpg combined was a strong selling point, particularly in a market increasingly focused on fuel efficiency. Reliability reports suggest that the JLB-4G15 engine is generally reliable, but routine maintenance is essential to ensure long-term durability.
Legacy
The Geely X3 1.5L played a significant role in establishing Geely as a major player in the Chinese automotive market. While production ended in 2021, the X3 remains a common sight on Chinese roads. The 1.5L engine and 5-speed manual transmission combination proved to be a durable and relatively trouble-free powertrain. In the used car market, the X3 1.5L is valued for its affordability and practicality. However, potential buyers should be aware of the engine’s limited power and the basic nature of its features. Overall, the Geely X3 1.5L represents a solid, if unspectacular, entry into the compact CUV segment, offering a practical and affordable transportation solution for budget-conscious buyers.
